GSi 2021 - Sweep Components (18-51)

3. Machine Components
PNEG-2343 U-Trough Free Flow Unloading System 15
Sweep Components (18'-51')

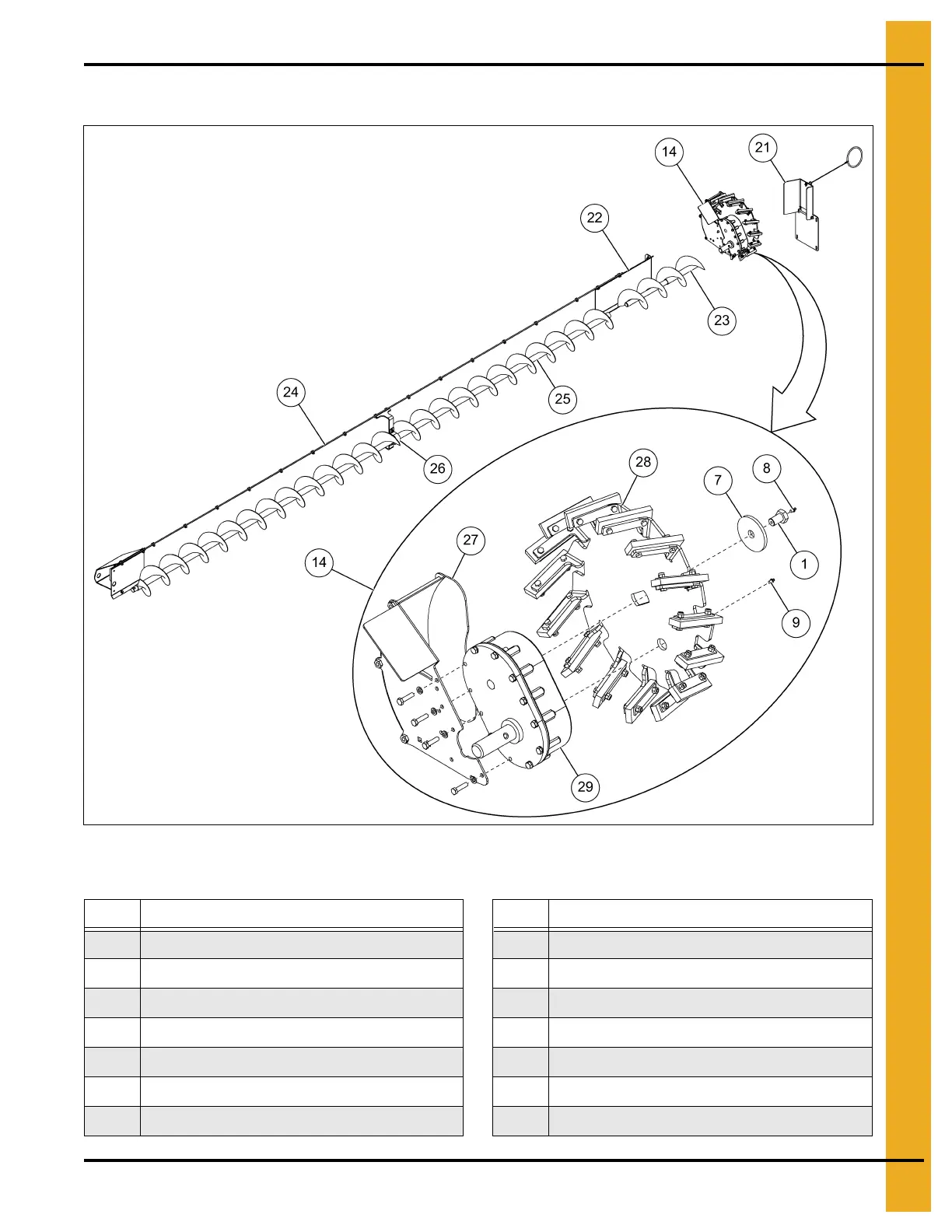

Figure 3E
Sweep Components (18'-51') Parts List
Ref # Description Ref # Description
1 5/8" x 1" Bolt with 3/16" Hole 23 Sweep End Flight
7Washer
24 Sweep Backplate
8 3/16" Drive-In Grease Zerk 25 Sweep Flight (Available in 6", 7-1/4" and 8")
9 M6 x 1.0 Grease Zerk
26 Wood Bushing (Sweep Sizes 27' and Up)
14 Elevator Drive Wheel Assembly 27 Elevator Drive Wheel Fender
21 Sweep Stop
28 Elevator Wheel
22 Sweep Backplate Adjuster Plate 29 Chain Reduction Box
