PNEG-2343 U-Trough Free Flow Unloading System 17
4. Installation

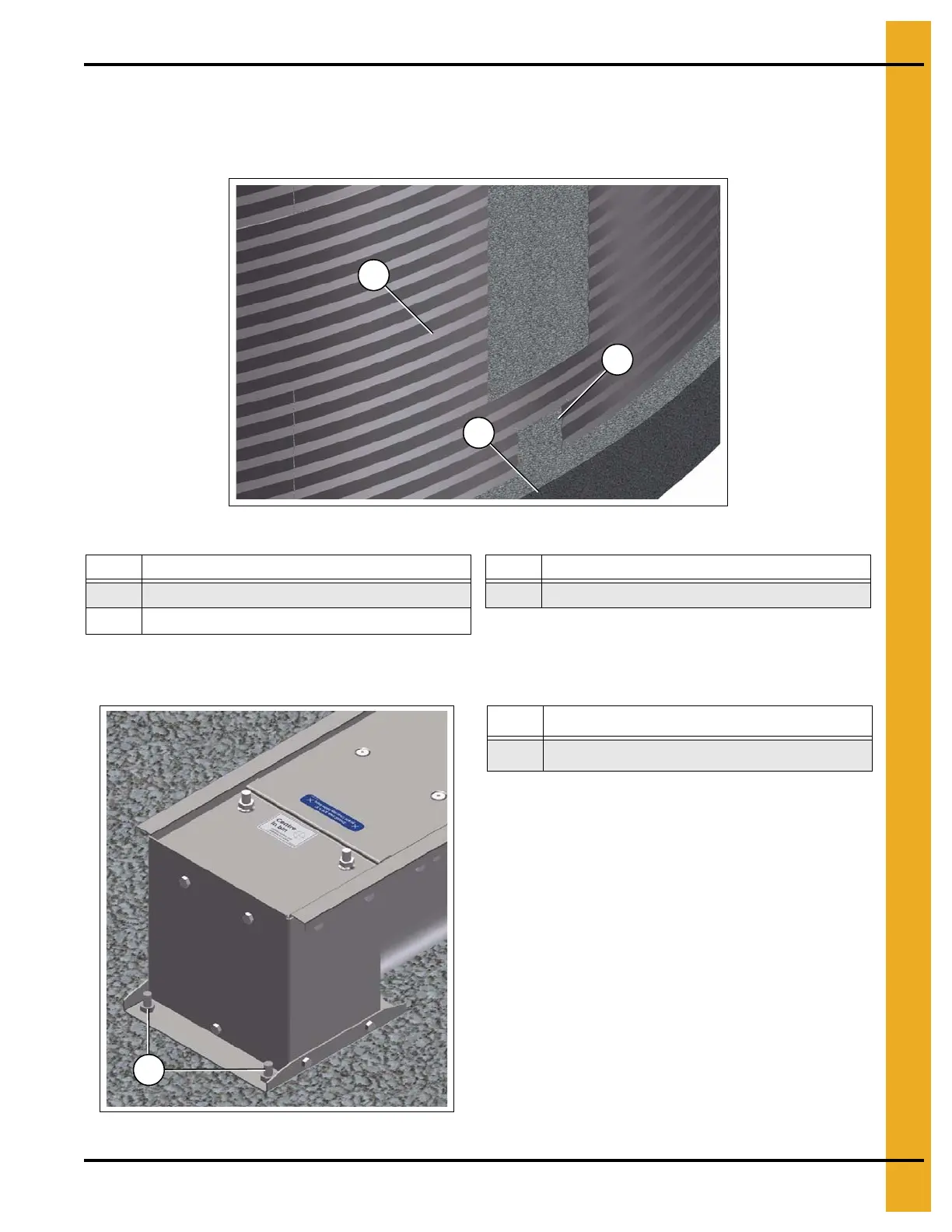

Unloaders Under Aeration Floor
1. Cut 12" (H) x 14" (W) (305 mm x 356 mm) rough opening (52) in the bin wall where the unloader is
to exit the bin. (See Figure 4A.)
Figure 4A
2. Insert the unloader and center in the bin. Note the bin center location marked on the dust cover.
Secure the unloader with anchor bolts (16) (not provided) to the bin foundation. (See Figure 4B.)
Figure 4B
Ref # Description Ref # Description
50 Bin Wall Exterior 52 Rough opening, shown below the door opening.
51 Bin Foundation
Ref # Description
16 Concrete Anchor Bolts
