4. Installation
PNEG-2343 U-Trough Free Flow Unloading System 21
Unloaders in Concrete Knock-Out
1. Center the unloader in the bin foundation. Anchor to the bottom of the knock-out with the concrete
anchor bolts (16) (not provided). (See Figure 4I.)

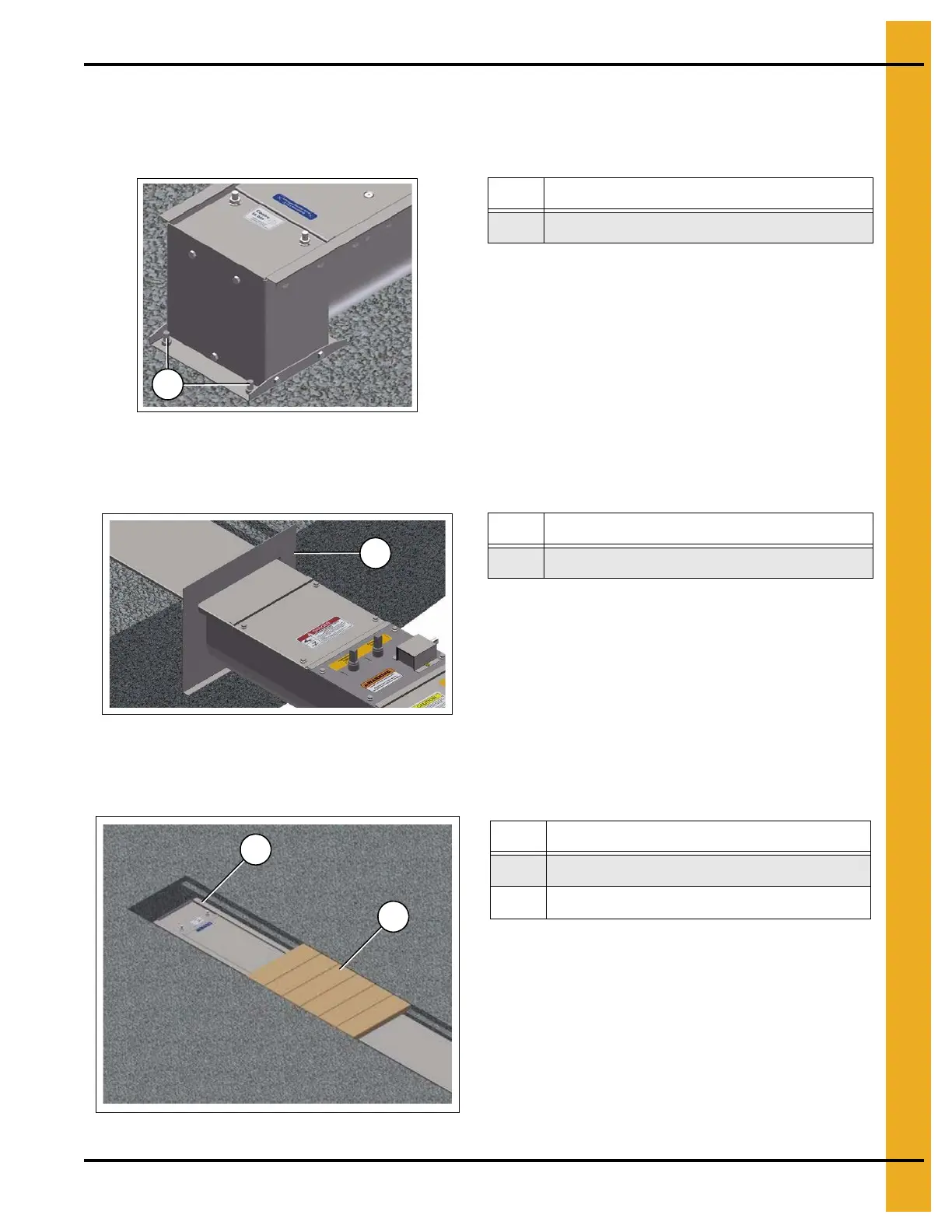

Figure 4I
2. Install the bin wall flange (60) as shown in Figure 4J. Use the concrete screws (not provided) to attach
the bin wall flange (60) to the concrete foundation.
Figure 4J
3. Install the floor flanges over the gates. Use the wood or metal planking (61) to the cover exposed
unloader between the gates (not provided). (See Figure 4K.)
Figure 4K
16
Ref # Description
16 Concrete Anchor Bolts
60
Ref # Description
60 Bin Wall Flange
62
61
Ref # Description
61 Planking
62 Center in Bin
