7. Install the intermediate floor flange (59) and secure with self-tapping screws (33) (not provided).

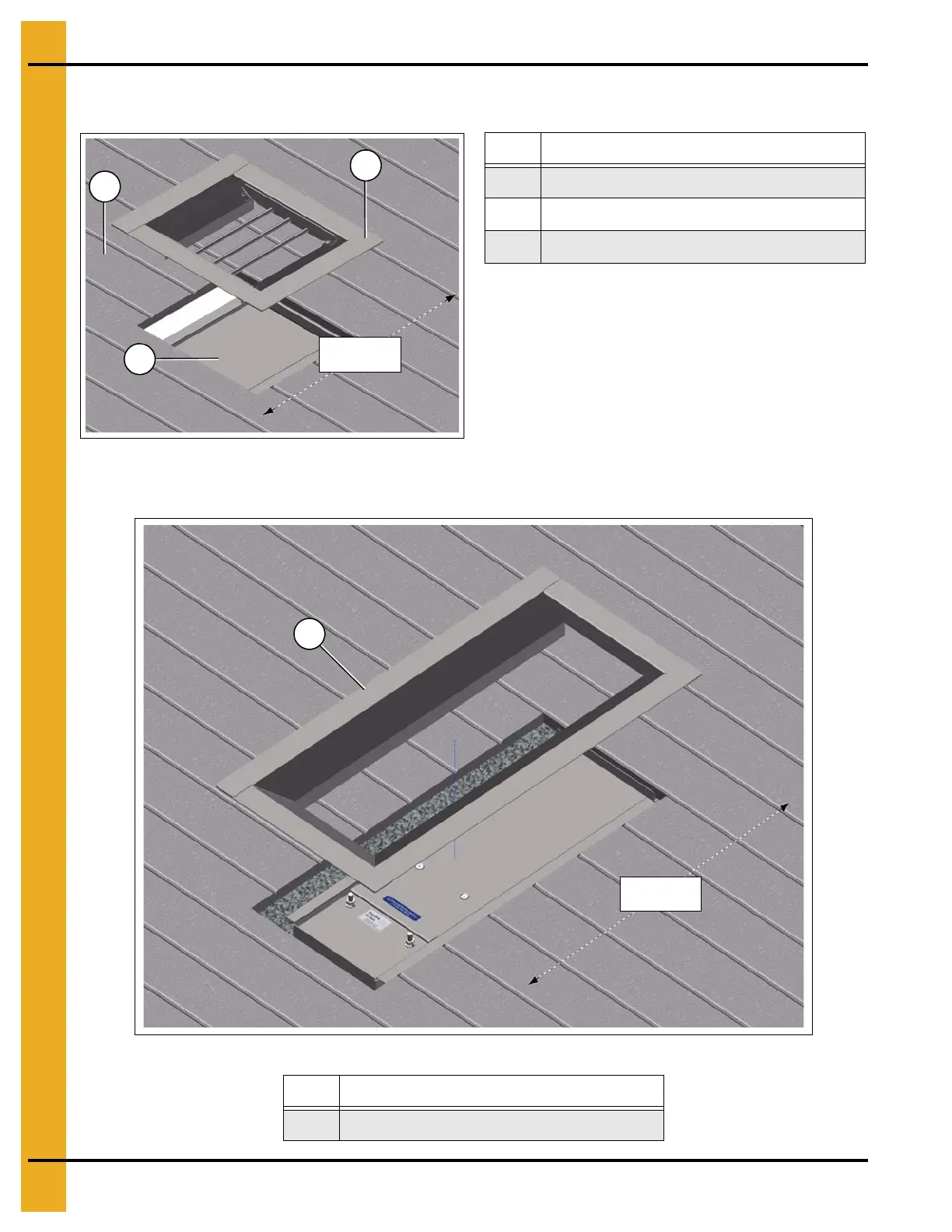

(See Figure 4G.)
Figure 4G
8. Install the center floor flange (105) (but not the center floor grate yet). (See Figure 4H.)
Figure 4H
59
57
58
Trough axis
direction
Ref # Description
57 Intermediate Gate
58 Aeration Floor
59 Intermediate Floor Flange
Ref # Description
105 Center Floor Flange
Trough axis
direction
105
