GSi 2021 - Polyshield Plate Assembly

4. Installation
34 PNEG-2343 U-Trough Free Flow Unloading System
Polyshield Plate Assembly

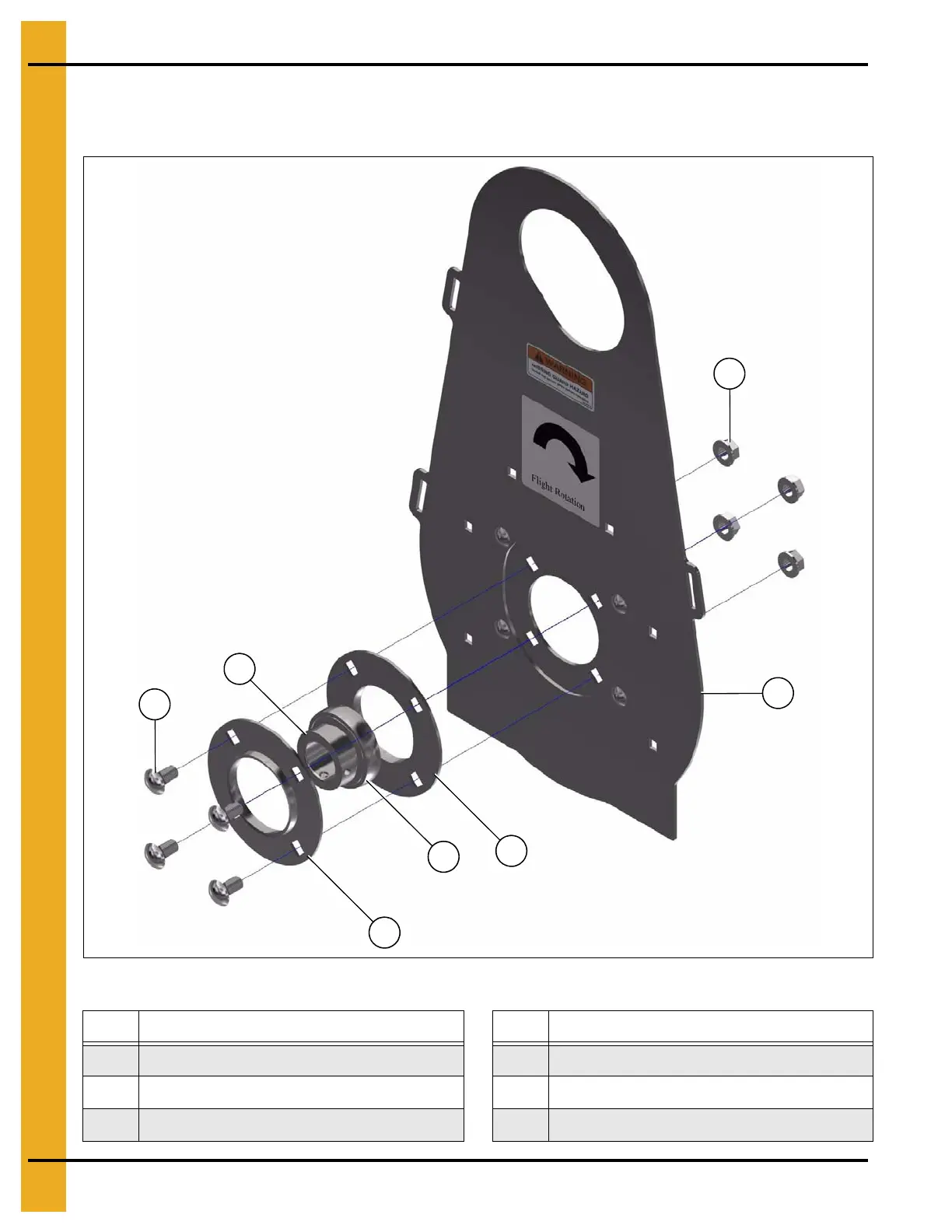

1. Install the bearing (80) in the polyshield plate assembly (81) as shown in Figure 4AT.
Figure 4AT
Ref # Description Ref # Description
12 1/2" x 1" Carriage Bolt (4) 80 Bearing Flange (2)
20 1/2" Flange Nut (4)
81 Polyshield Plate Assembly
79 Bearing Insert (1) 82 Bearing with Eccentric Locking Collar
81
82
80
80
79
20
12
