3. Machine Components
16 PNEG-2343 U-Trough Free Flow Unloading System

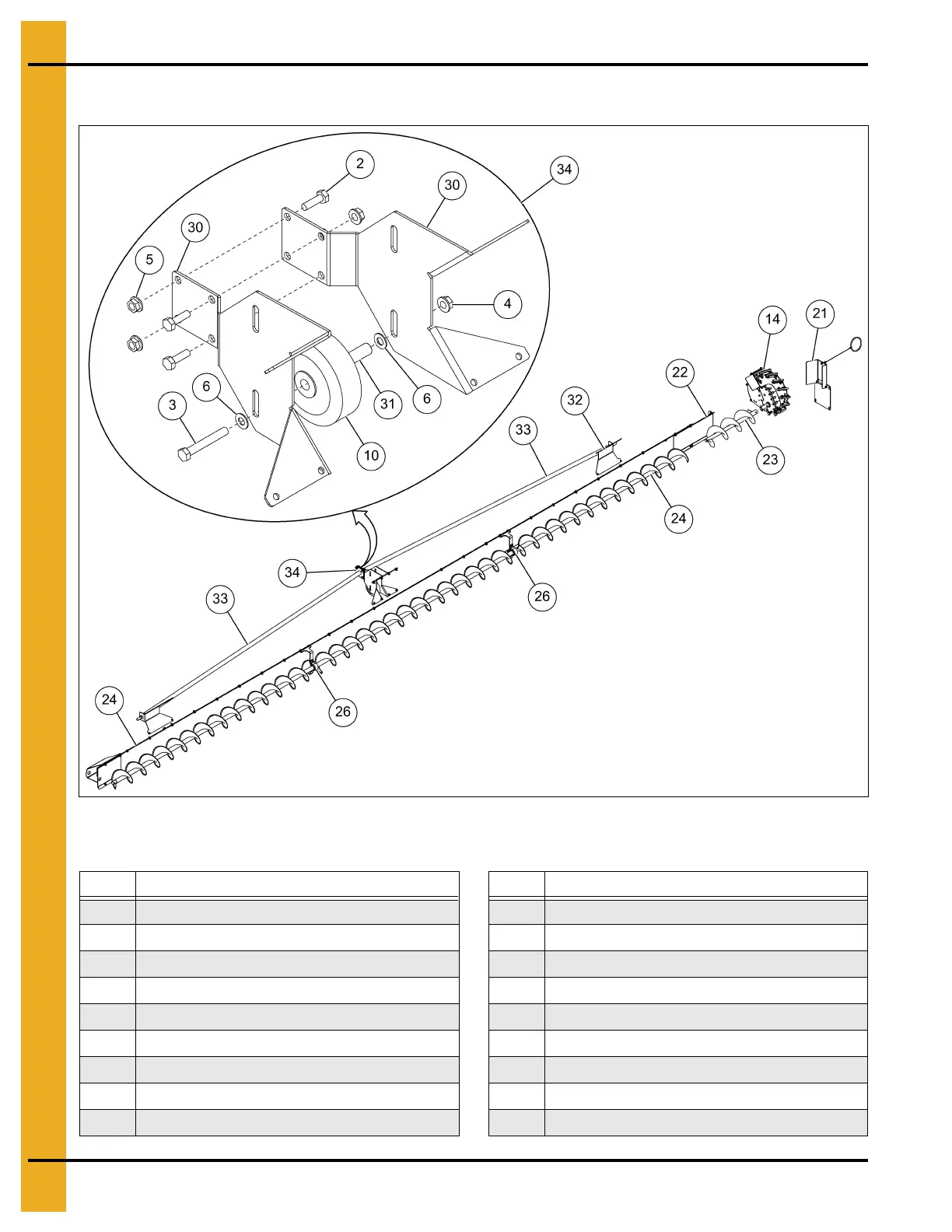

Sweep Components (52'-6" - 66')
Figure 3F
Sweep Components (52'-6" - 66') Parts List
Ref # Description Ref # Description
2 1/2" x 1-1/2" Bolt 23 Sweep End Flight
3 1/2" x 3-1/2" Bolt Grade 8
24 Sweep Backplate
4 1/2" Flange Nut Grade 5 UNC 24 Sweep Flight (Available in 6", 7-1/4" and 8")
5 1/2" Flange Nut
26 Wood Bushing
6 1/2" Flat Washer 30 Support Wheel Mounting Plate
10 6" Wheel with 3/4" bearing
31 Bushing
14 Elevator Drive Wheel Assembly 32 Sweep Brace Mounting Plate
21 Sweep Stop
33 Sweep Brace
22 Sweep Backplate Adjuster Plate 34 Sweep Support Wheel Assembly
To Next Page
