9. U-Trough and Sweep Selection Guidelines
PNEG-2343 U-Trough Free Flow Unloading System 57
Belt Size Selection
Springland MFG does not supply belts. Use the following table to select the correct belt for your unloader.
(1) The 12.4" pulley 3B124 should be paired with a 4" motor pulley 3B36.
(2) The 18.4" pulley 3B184 should be paired with a 5" motor pulley 3B50.

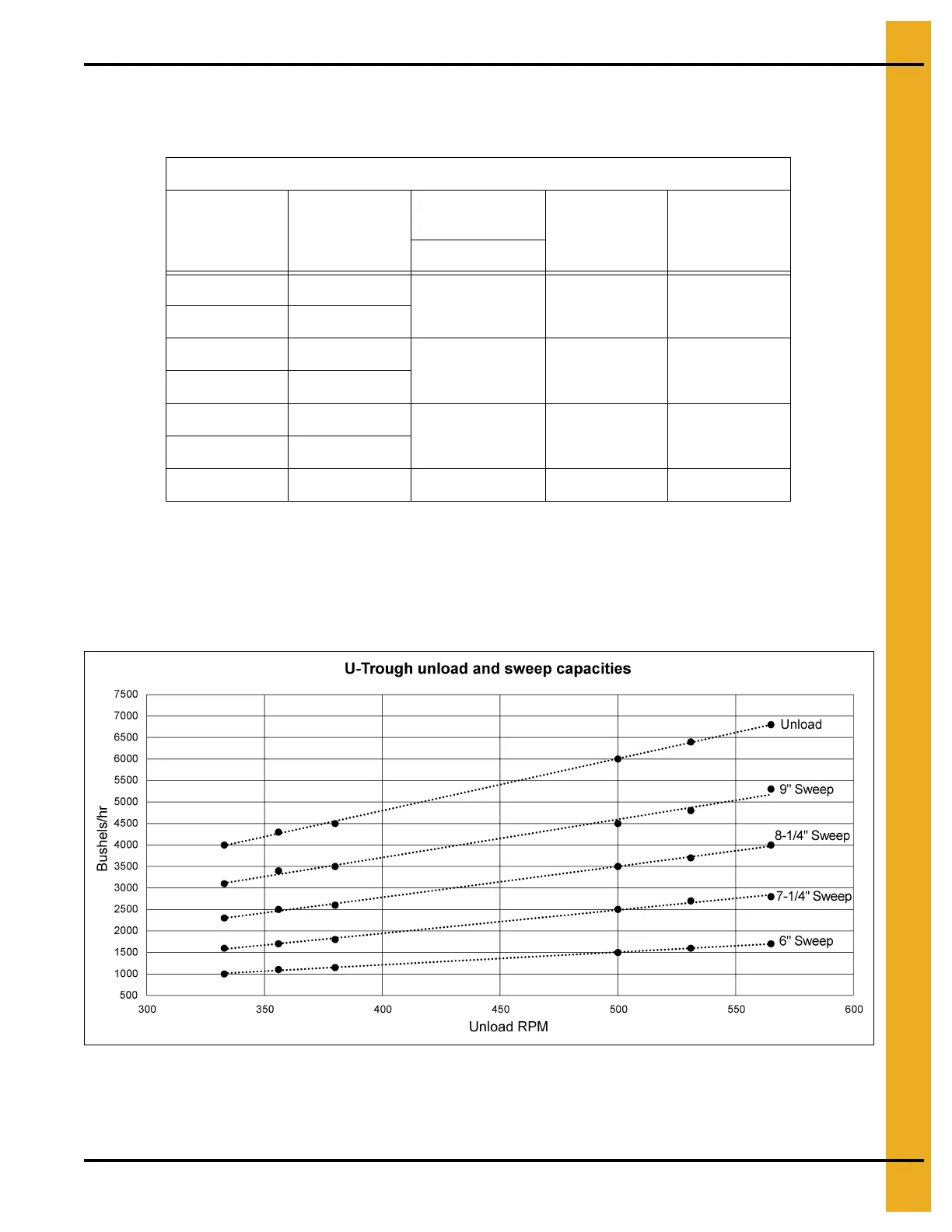

Capacity Chart
Figure 9A
U-Trough Belt Sizes
Horsepower NEMA Frame
Center to Center
Distance
12.4" Pulley (1) 18.4" Pulley (2)
Inches
3 182T
14.85 B56 B69
5 184T
7.5 213T
15.60 B58 B70
10 215T
15 254T
16.60 B60 B72
20 256T
25 284T 17.35 - B74
