4. Installation
PNEG-2343 U-Trough Free Flow Unloading System 27
Sweeps

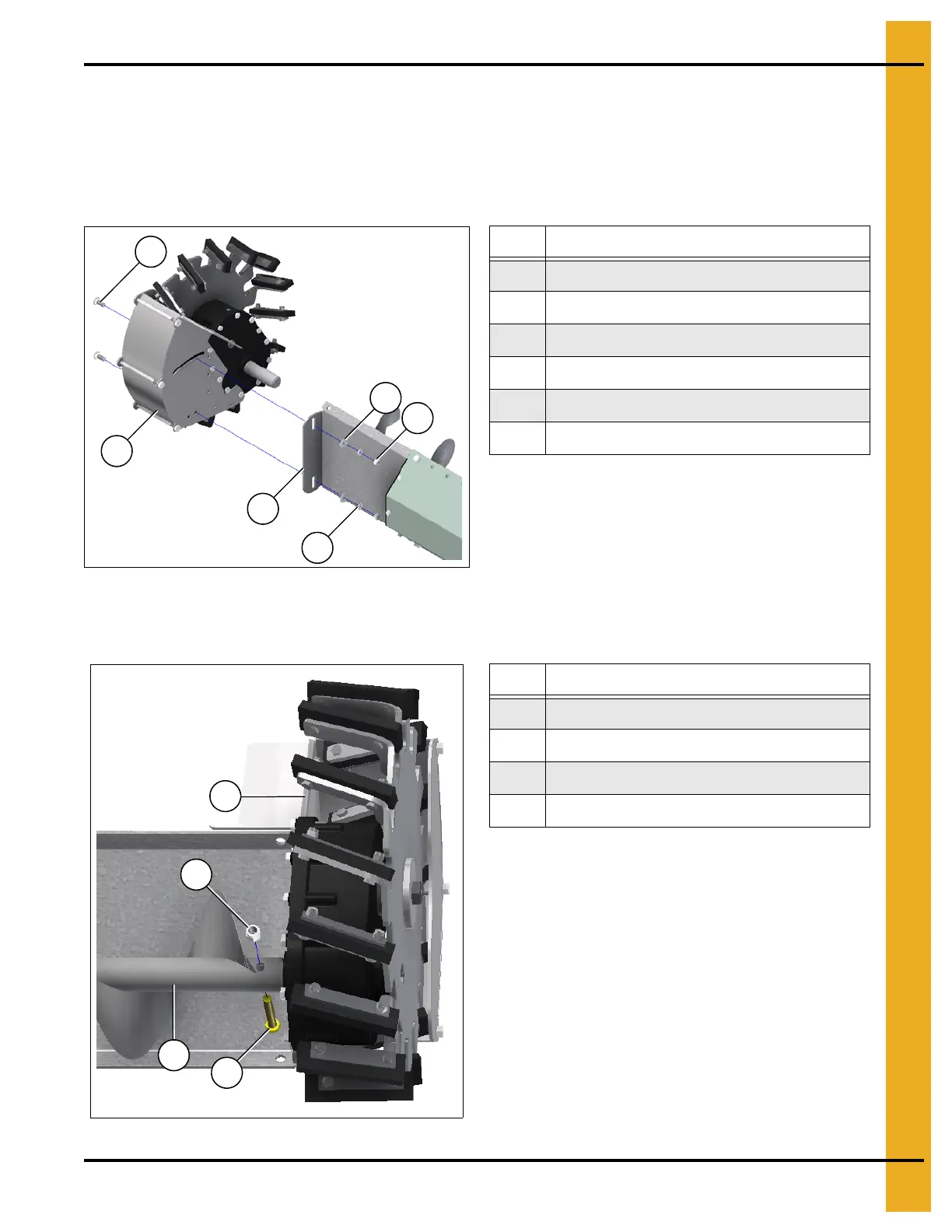

Installing the Elevator Wheel Assembly
1. Install the elevator wheel assembly (40) to the end of the sweep backplate (44) using 3/8" x 1"
carriage bolt (11), 3/8" flat washer (28), 3/8" lock washer (31) and 3/8" hex nut (21). (See Figure 4W.)
Figure 4W
2. Install the sweep end flight (43) onto the elevator wheel assembly (40) shaft using 3/8" x 2-1/2" bolt
(7) and 3/8" lock nut (23). (See Figure 4X.)
Figure 4X
11
28
21
40
44
31
Ref # Description
11 3/8" x 1" Carriage Bolt (2)
21 3/8" Hex Nut (2)
28 3/8" Flat Washer (2)
31 3/8" Lock Washer (2)
40 Elevator Drive Wheel Assembly
44 Sweep Backplate
43
40
23
7
Ref # Description
7 3/8" x 2-1/2" Bolt (1)
23 3/8" Lock Nut (1)
40 Elevator Drive Wheel Assembly
43 Sweep End Flight
