4. Installation
36 PNEG-2343 U-Trough Free Flow Unloading System
Powerhead Shaft, Motor Plate
1. Ensure the flighting is pushed fully towards gearbox.
2. Install the motor plate assembly (85) on the top of the powerhead (41), secure with three nuts and
bolts removed previously. (See Figure 4AV.)
3. Secure the shifter handle bracket (86) with two nuts (19) and bolts (9).
4. Install the powershield plate assembly (81) and secure with six nuts (19) and bolts.

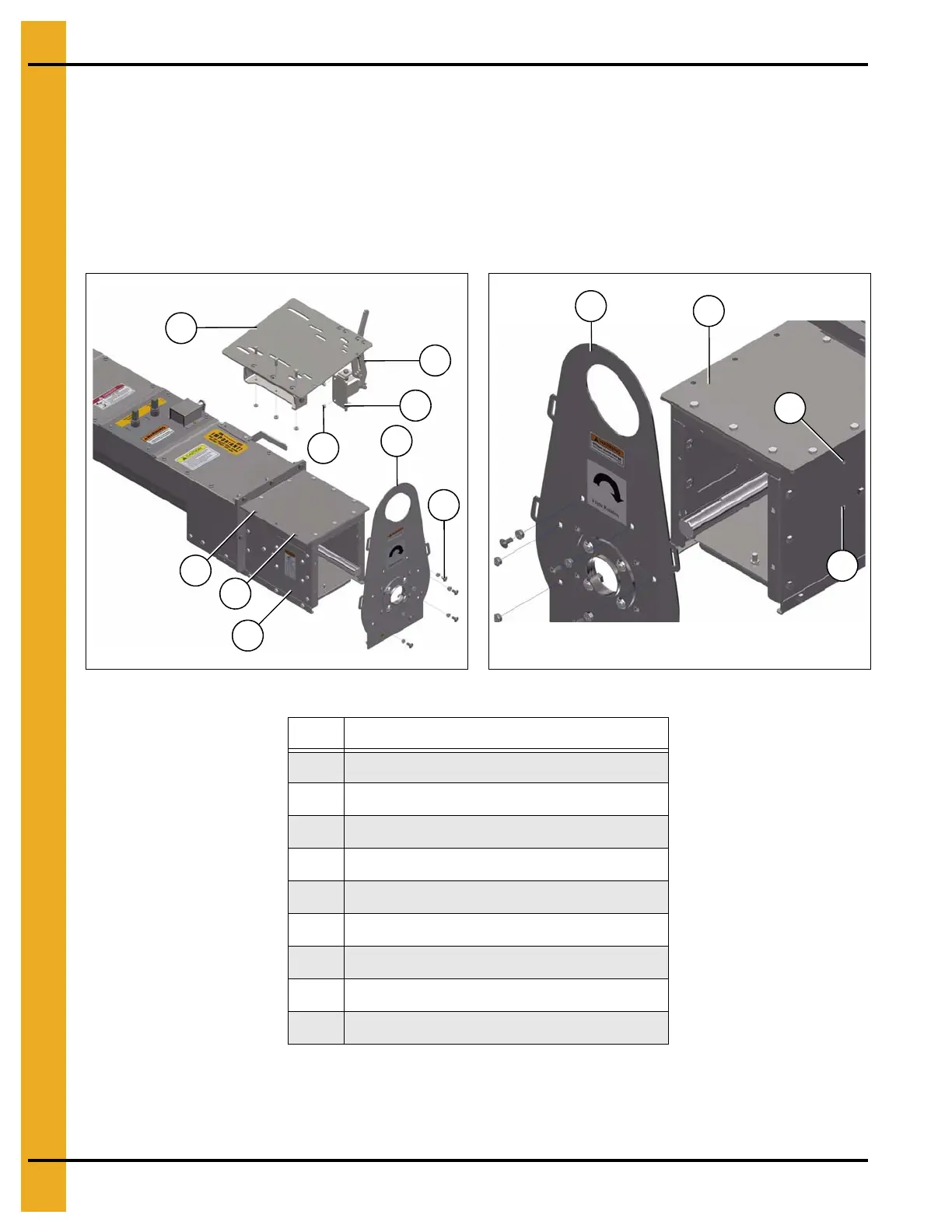

Figure 4AV Figure 4AW
Ref # Description
9 3/8" x 1" Bolt (2)
11 3/8" x 1" Carriage Bolt (6)
19 3/8" Flange Nut (8)
41 Powerhead
81 Polyshield Plate Assembly
85 Motor Plate Assembly
86 Shifter Handle Bracket
87 Motor Plate Assembly Mounting Holes
88 Shifter Handle Bracket Mounting Holes
