(2) Installment Interval

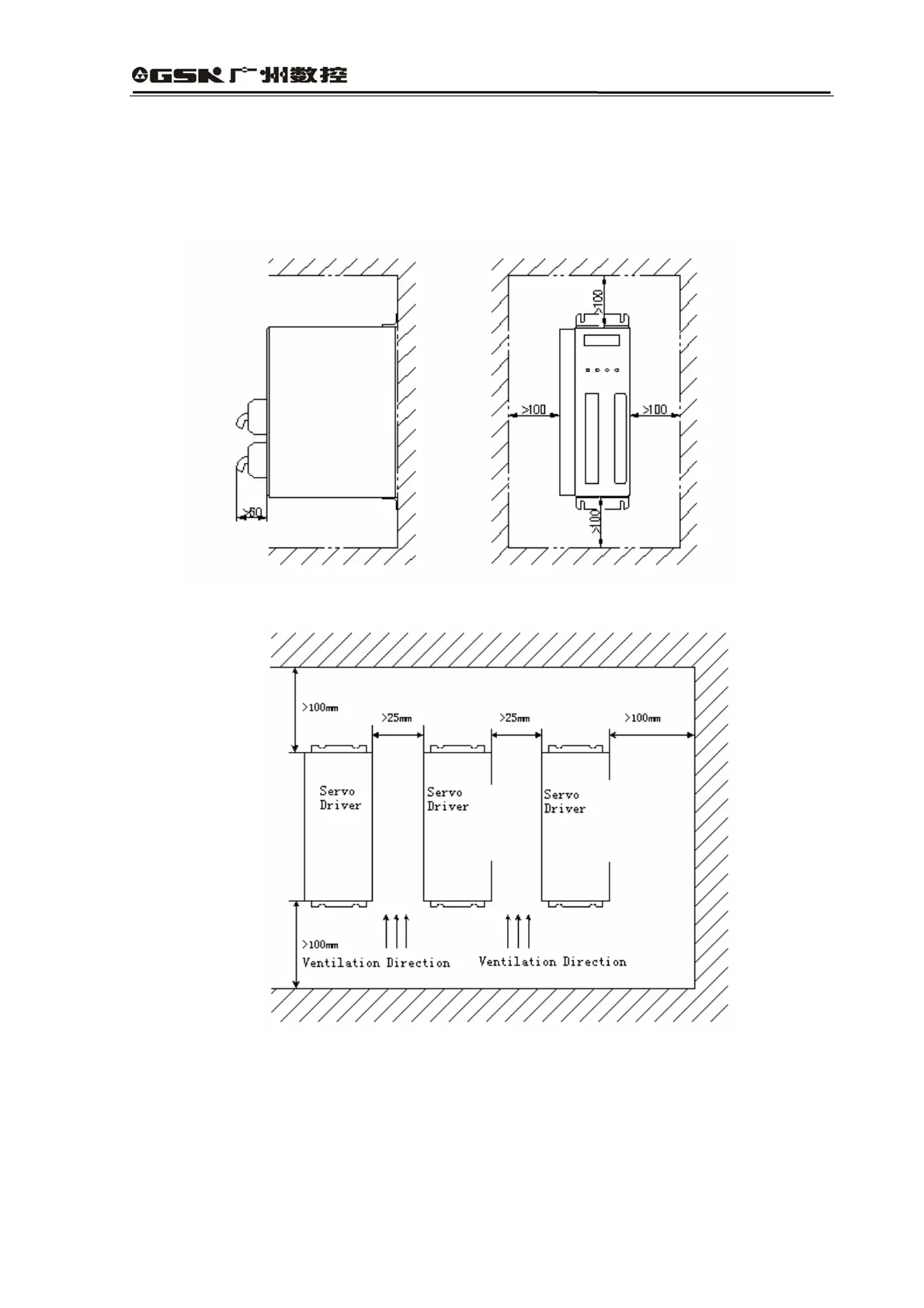

Fig. 2.3 shows the installment interval for single drive unit and Fig. 2.4 shows the installment
interval for multiple drive units. In actual installment, the interval shall be as great as possible
to ensure good conditions for heat radiating.
Fig. 2.3 Installment for Single Drive unit
Fig. 2.4 Installment Interval for Multiple Drive units
(3) Heat Radiating
To ensure that surrounding temperature of the drive unit will not be constantly increased,
there shall be convective-current wind blowing towards radiator of the drive unit within the
electric cabinet.
