DA98D User Manual
58
Zero-speed Torque (Nm) 2 4 5 6
A(mm) 106 132 148 164
B(mm) 158(205) 184(231) 200(247) 216(263)
C(mm) 76 102 118 134
Note: The B value in the bracket is the length of motor with electricity-losing brake.

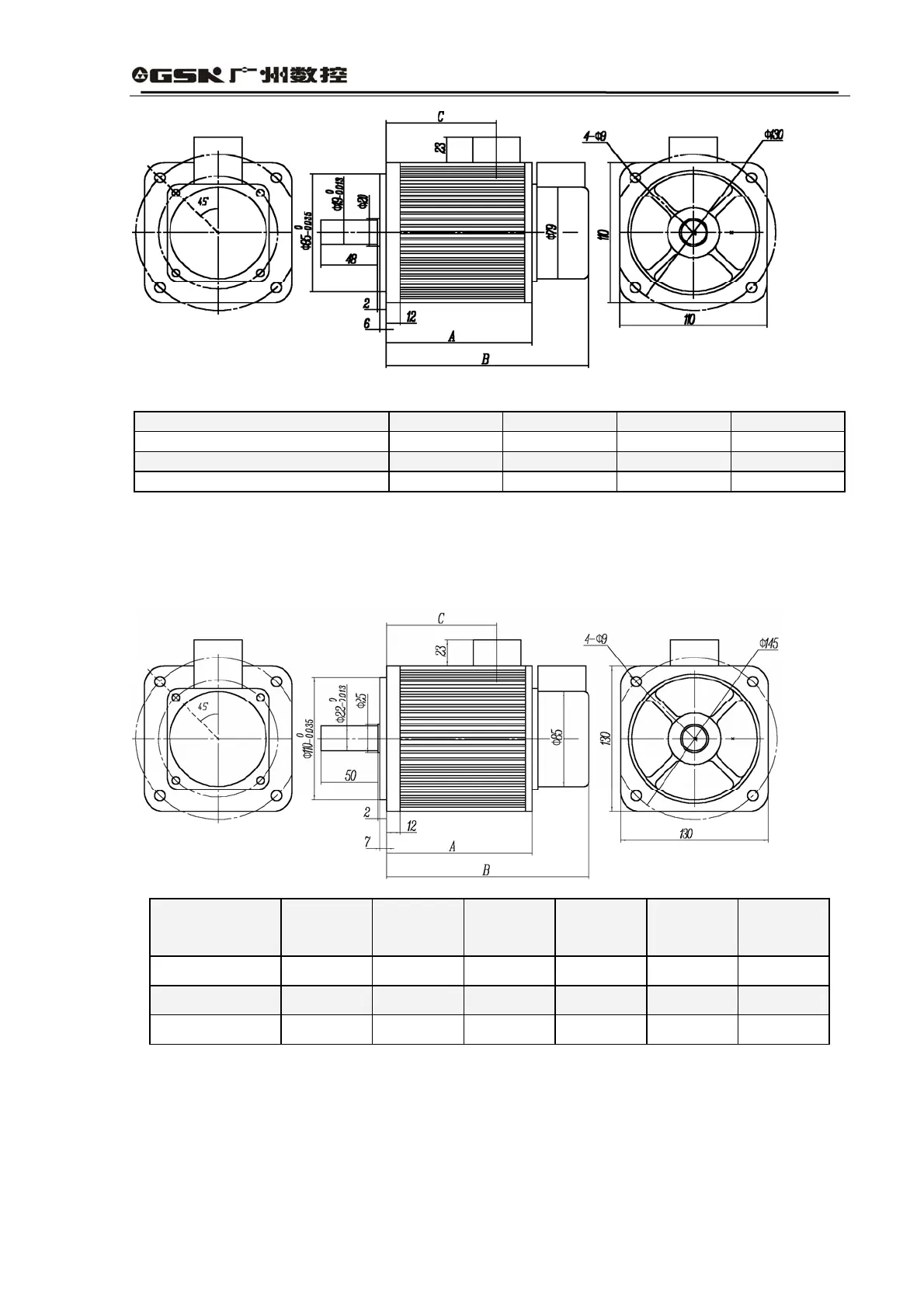

(4) Figuration Drawing for DST series of 130-stand model AC servo motors
Zero-speed
Torque (Nm)
4 5 6 7.7 10 15
A(mm) 110 119 128 142 166 214
B(mm) 162(209) 171(218) 180(227) 194(241) 218(265) 266(313)
C(mm) 80 89 98 112 136 184
Note: The B value in the bracket is the length of motor with the electricity-losing brake.
