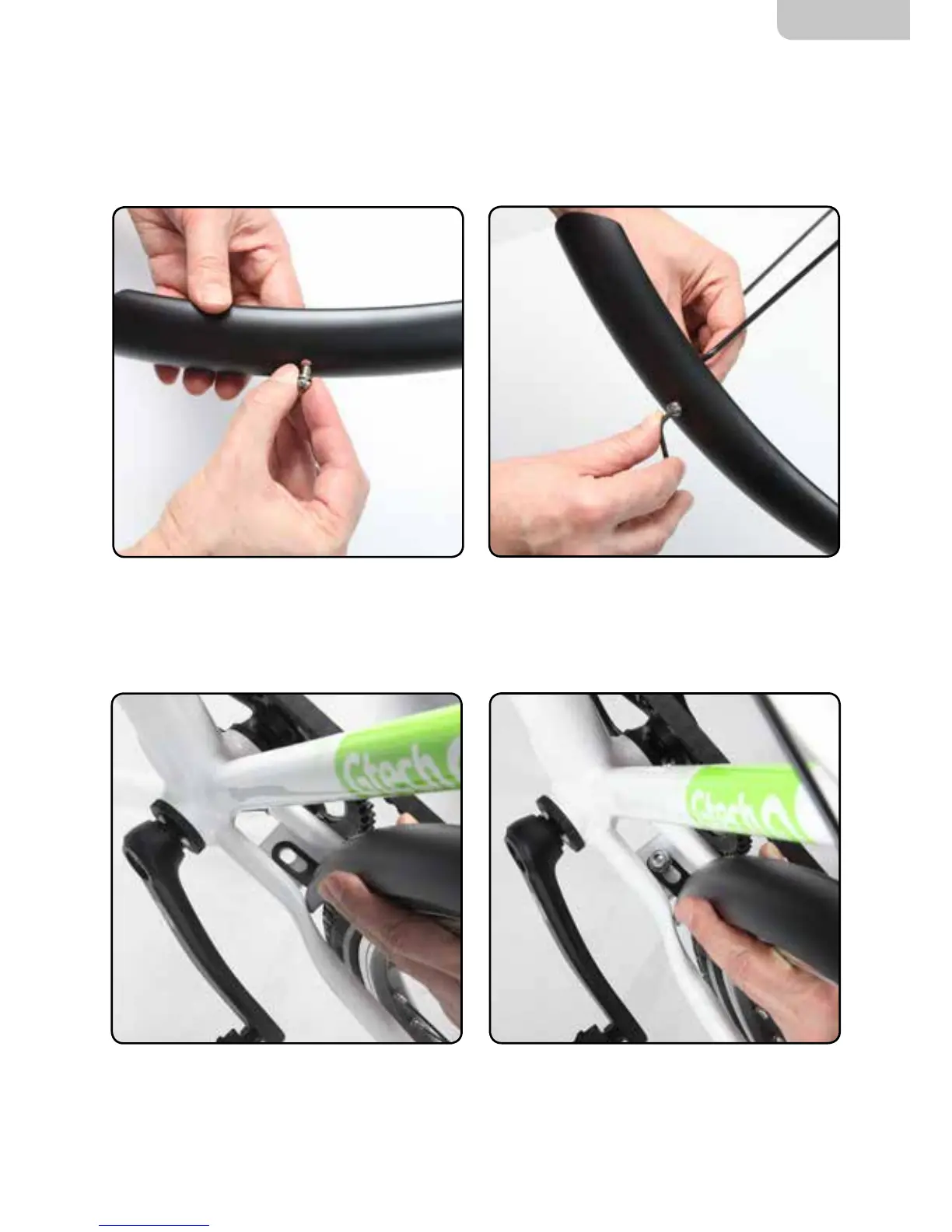

Rear mudguard (longer length mudguard)
Insert a round head screw with washer through
the hole in the rear mudguard.
Place the mudguard stay over the screw. Fit a
washer and nut by turning clockwise. Hold the
nut to stop it rotating with the 8mm spanner and
tighten the screw clockwise using the 3mm allen
key provided.
The mudguard bracket ts over the frame hole in
front of the rear wheel.
Insert the large screw through the mudguard
bracket and frame hole. Fit a washer and the
large nut by turning clockwise.
