Hold the nut with the 13mm spanner to stop it
rotating and tighten the screw clockwise using
the 8mm allen key provided.
Slide the xing bracket until it is against the
frame. Insert a xing screw and tighten clockwise
using the Gtech tool provided.
Position the stays against the xing holes at the
bottom of the chainstays. Insert a xing screw at
each side and tighten clockwise using the Gtech
tool provided.
Note: if a kickstand is being tted the kickstand screw can be used to x the rear mudguard.

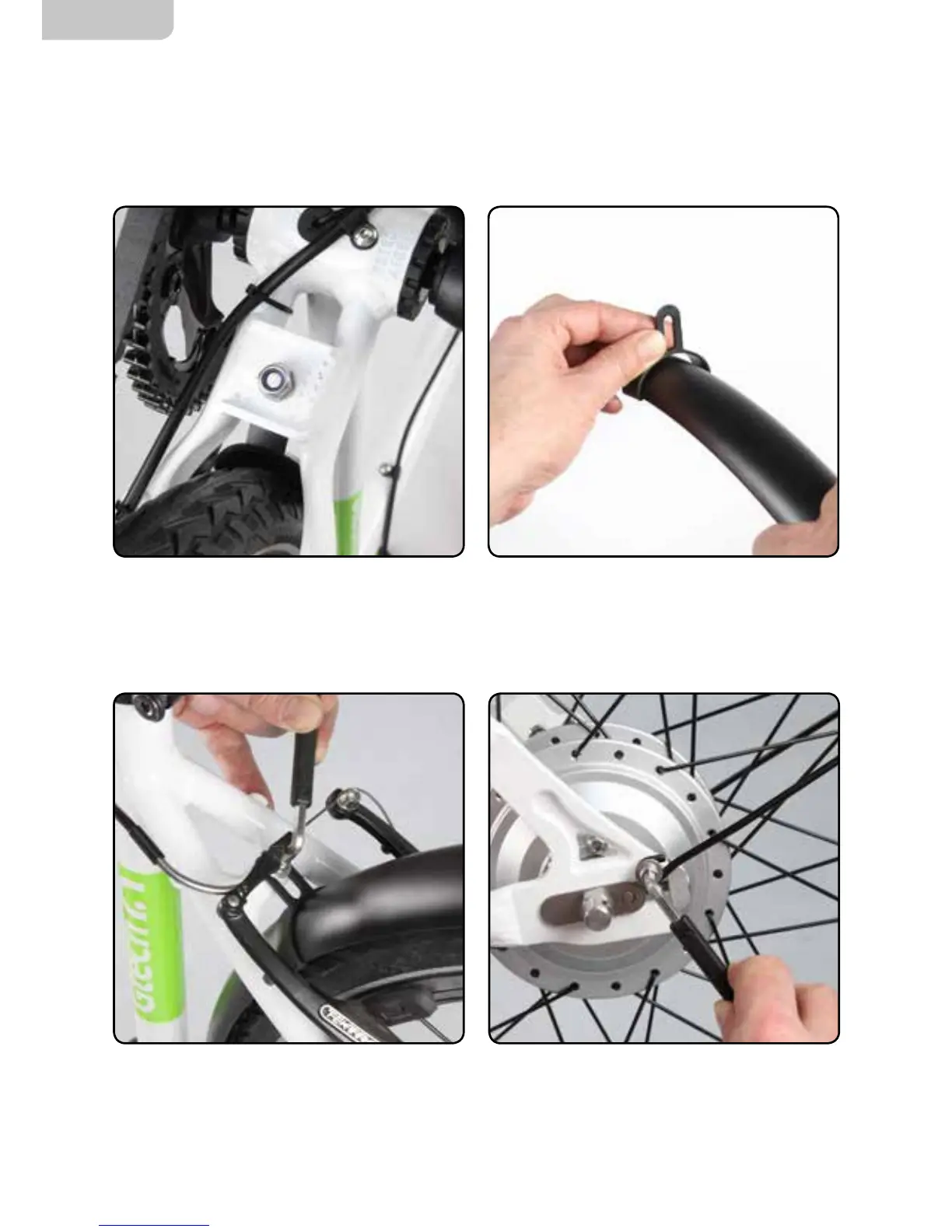

Mudguard image Mudguard image
Clip the xing bracket onto the mudguard.
