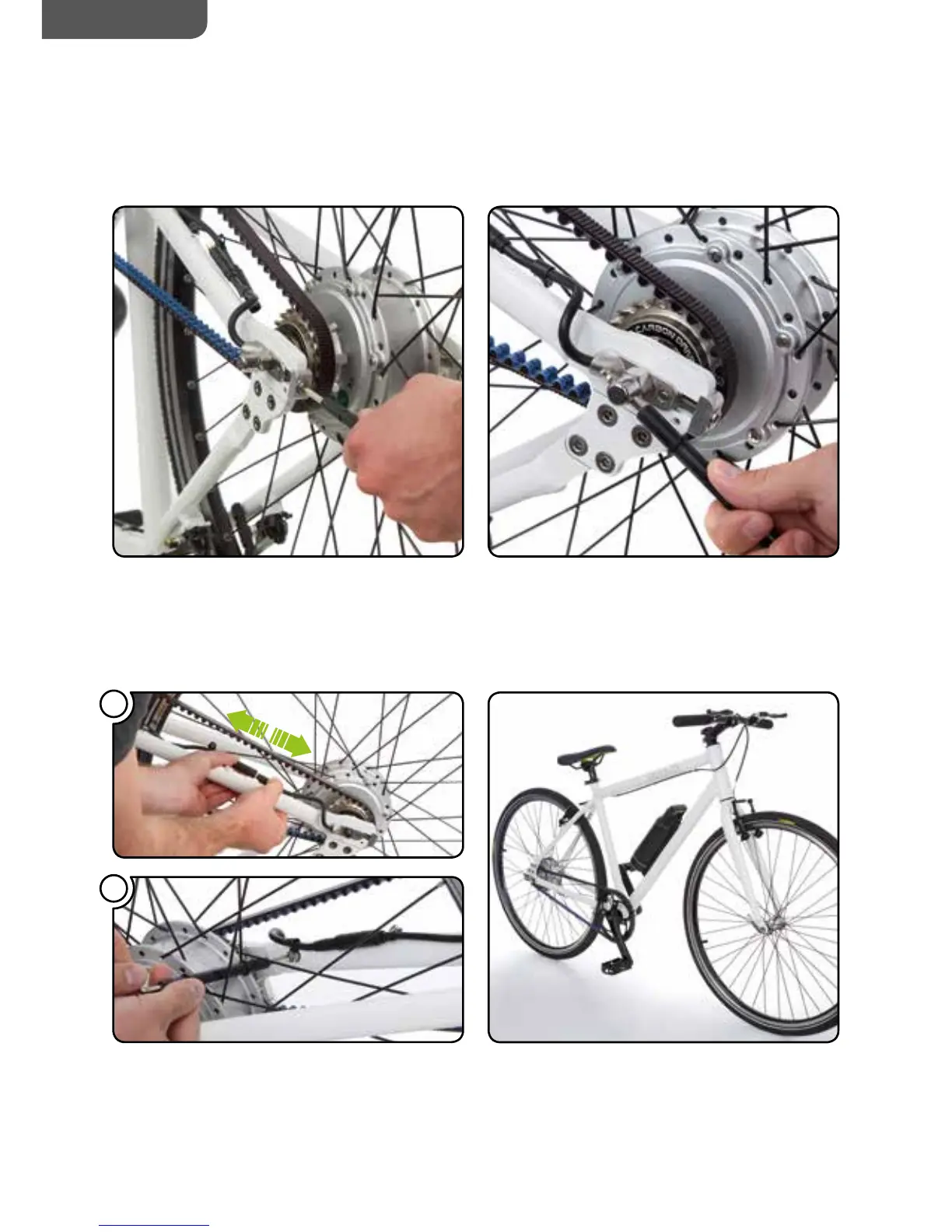

If the tension is not correct, turn your eBike
upside down and adjust the belt tension adjuster
screws. Tighten the screws to create more
tension and loosen them slightly to reduce
tension. Check the belt tension again.
With your eBike upside down, tighten the nuts
on either side of the wheel by placing the tool
through them and turning clockwise.
1. Reconnect the hub connector cable by lining
up the arrows and pushing together.
2. Tighten the cable guide to hold the hub
connector cable in place.
Turn the eBike the correct way up and reconnect
the battery. You will need to reattach and adjust
your brakes (see page 23).
1
2
