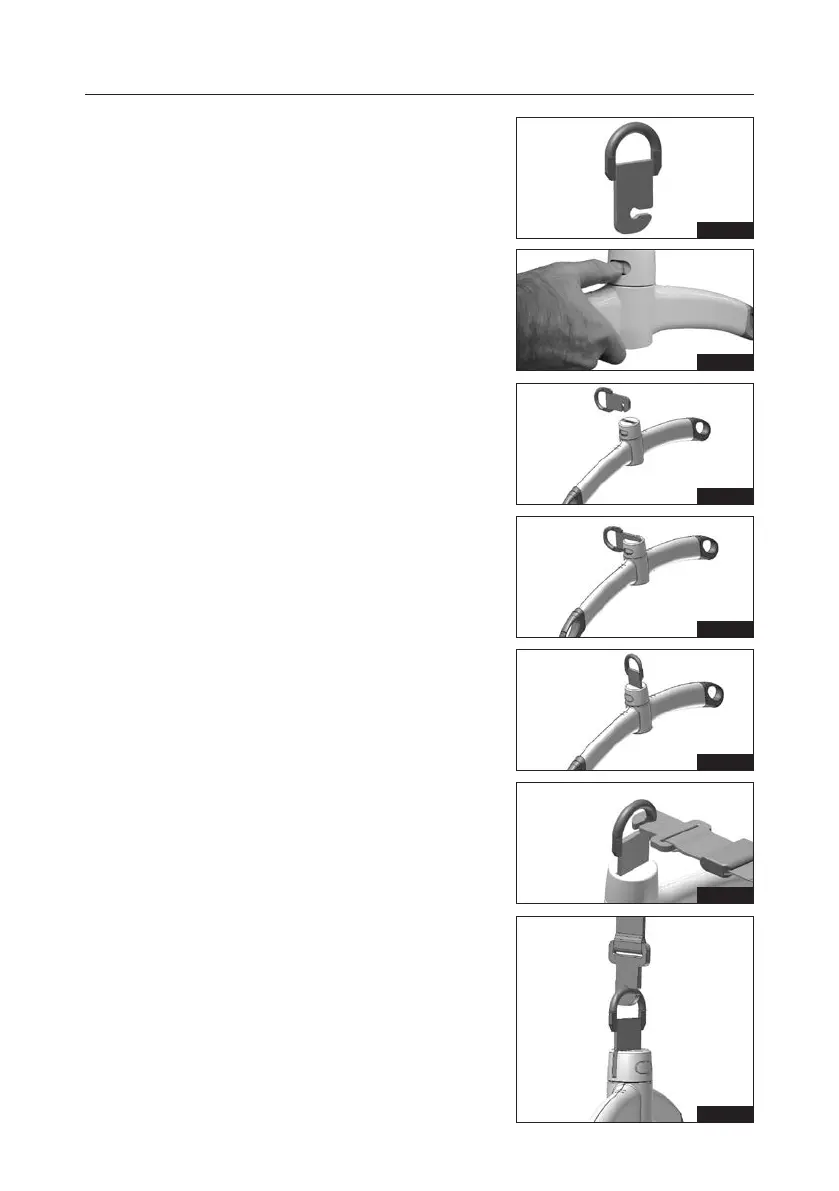

1.12 Swing kit

The swing function is used in conjunction

with a transfer e.g. through a door from

one lifting module to another.

Note: The swing adapter must be ordered

separately.

Installation of swing adapter

1. Before starting a lift involving a swing

transfer the swing adapter (Fig. 1)

must be installed on the lifting hanger.

(Fig. 2 to 5)

2. Hold the lifting hanger in the right hand

and press the yellow button using the

thumb (Fig. 2)

3. Insert the swing adapter in the slot on the

lifting hanger top cover with the open side

facing down (Fig. 3a, 3b) and release the

yellow button.

4. Rotate the swing adapter to a vertical

position (Fig. 4)

5. Check that the yellow button has returned

to its locked position by checking that it is

ush with the cover of the lifting hanger

and that the swing adapter can rotate

freely.

6. Install the strap attachment to the swing

adapter by sliding the open side of the

strap attachment over the at area of the

swing adapter (Fig. 5)

7. Rotate the strap attachment and ensure

that it moves up on the circular portion of

the swing adapter (Fig. 6)
