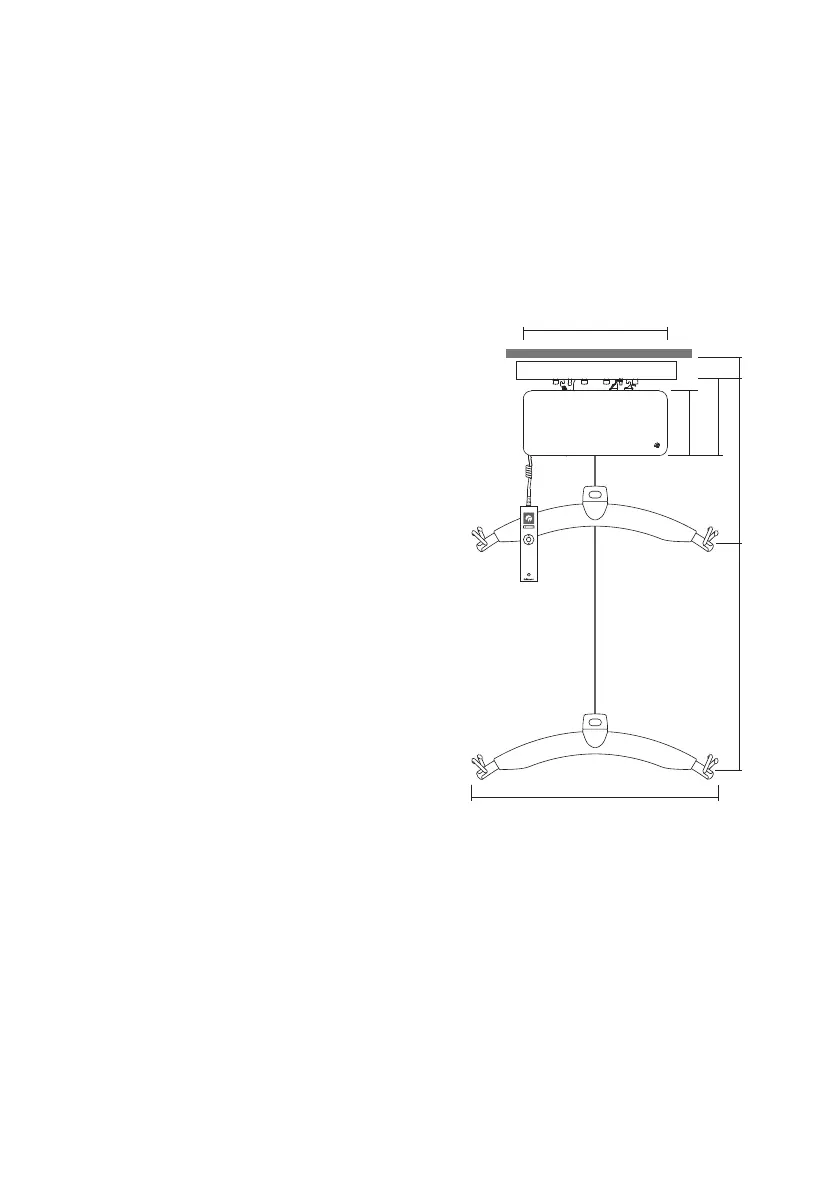

Dimensions
A .............................................580 mm (22.8 inch)
B .............................................345 mm (13.6 inch)
C ..............................................156 mm (6.1 inch)
D ..............................................184 mm (7.2 inch)
E, min ............................................82 mm (3.2 inch)
F, min ..........................................425 mm (16.7 inch)
G ............................................2500 mm (98.4 inch)
Depth of hoist ....................................205 mm (8.1 inch)
B
A
G
F
E
DC
Safety
Emergency stop ............................................. Yes
Emergency lowering device ................Yes, mechanical and electrical
Control of lifting strap ......................................... Yes
Cut-o󰀨 angle ...................... 45° along the rail 10° across the rail
