OVERVIEW
21

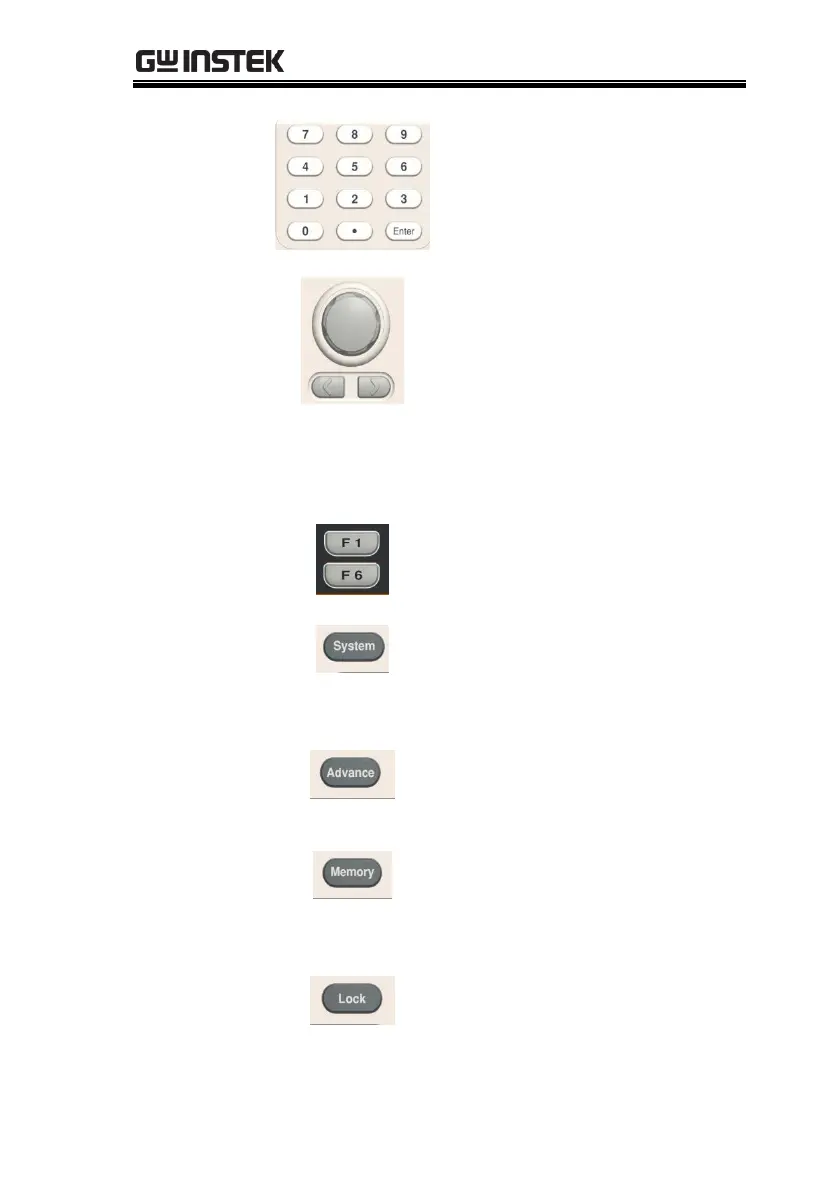

Number pad
For parameter value setting
Scroll wheel &
Arrow keys
Scroll wheel is used to set each
parameter value, whilst arrow
keys are used for parameter,
menu selection and
voltage/current fine
adjustment. It is used to switch
or operate the displayed
waveforms under diagram
display mode.
Function keys
The 6 function keys (F1-F6)
display varied functions per
different opertations.
System key
It is used to set functions
including Interface, Beep,
Backlight, etc. For details, refer
to page 91.
Advance key
It is used for certain advanced
functions like Sequence, Delay,
Monitor, Recorder, etc.
Memory key
It is used to operate several
functions including save and
recall, etc., for set parameters.
For details, refer to page 84.
Lock key
It is used to disable all the
panel keys except for the
Output key.
