GW Instek GPP-2323 - Tracking Series and Tracking Parallel Modes

BASIC OPERATION
43
Tracking Series and Tracking Parallel Modes
Descri
ption
Tracking series operation doubles the Voltage
capacity of the GPP-2323/3323/4323 by internally
connecting CH1 (Master) and CH2 (Slave) in series
and combining the output to a single channel. CH1
(Master) controls the combined Voltage output level.

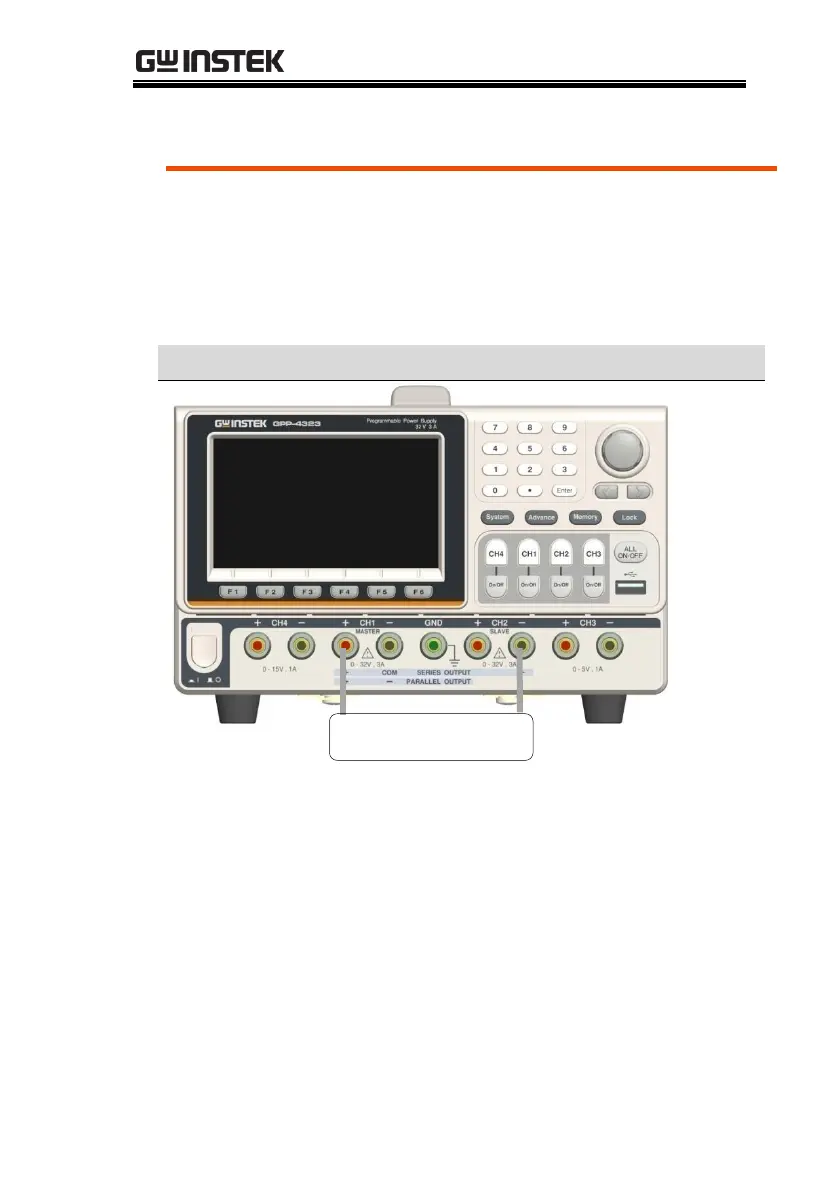

Tracking series without common terminal
Output
rating
rating 0 - 64V/0 - 3A
Setting
1. Press F4 or F5 button for operating the
corresponding Series to enter the tracking series
function. Yellow SER will be shown on the
status area.
2. Press CH1 button to proceed to CH1/CH2
voltage setting and CH1 limit current setting.
3. Press CH2 button to proceed to CH2 limit
Load
+ -
