GW Instek GPP-2323 - Set Sequence Output

BASIC OPERATION
51
are required to be output. Users can edit the
output waveform according to their needs. The
amplitude range of the output waveform is the
output voltage range of power supply. The
setting range for output waveform duration is 1s
(duration calculation: Time x Groups x Cycles)
and the resolution is 1s.
Caution: This feature is applicable to both
CH1 and CH2.

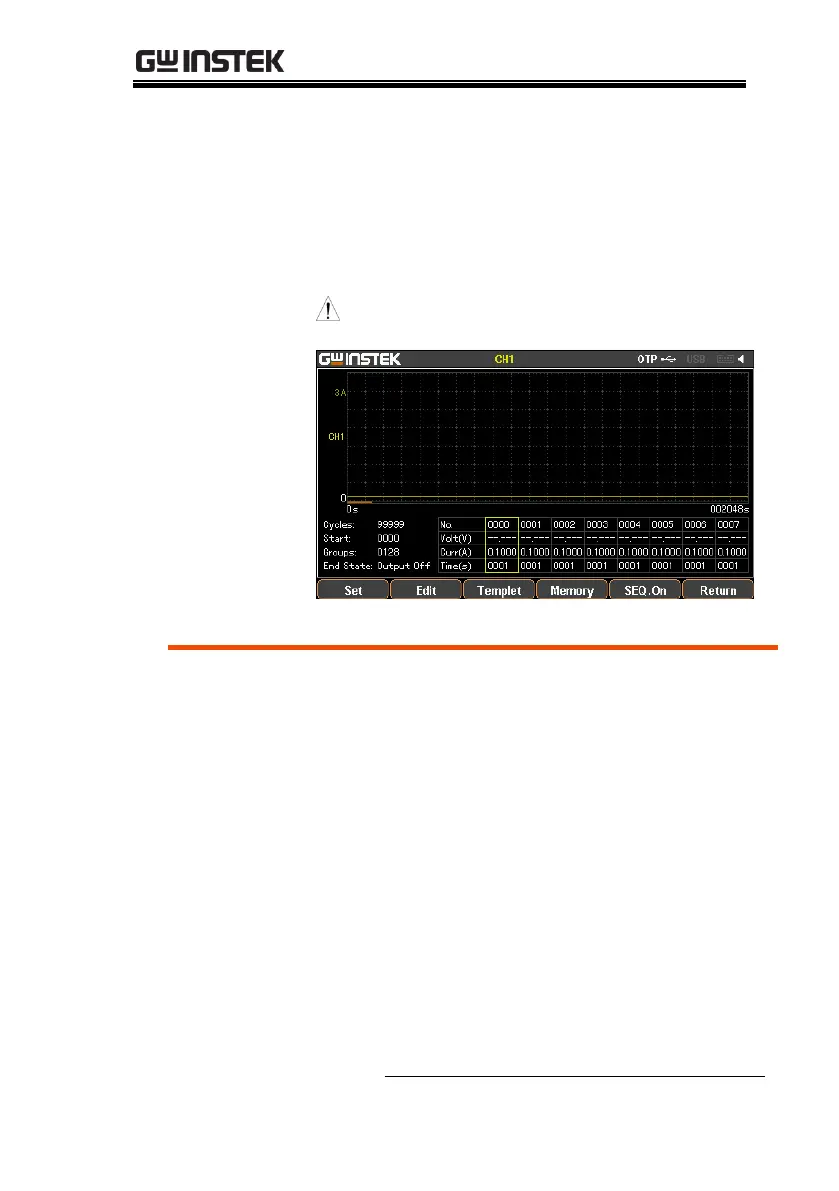

Set Sequence Output
Parameter
Description
Cycles
Cycle number, 1 represents a cycle of
single period, whilst 2 indicate a
cycle with 2 periods, and so on. The
range is from 1 to 9999 or Infinite.
Start
The number to execute, 0 indicates
the execution starts from the group
0, while 1 indicates it begins from the
group 1, and so on. The range is
from 0 to 2047.
Groups
The number to be executed. It can
NOT exceed 2048 for Start+Groups.
End State
There’re 2 statuses after the
necessary Group and Cycle are
