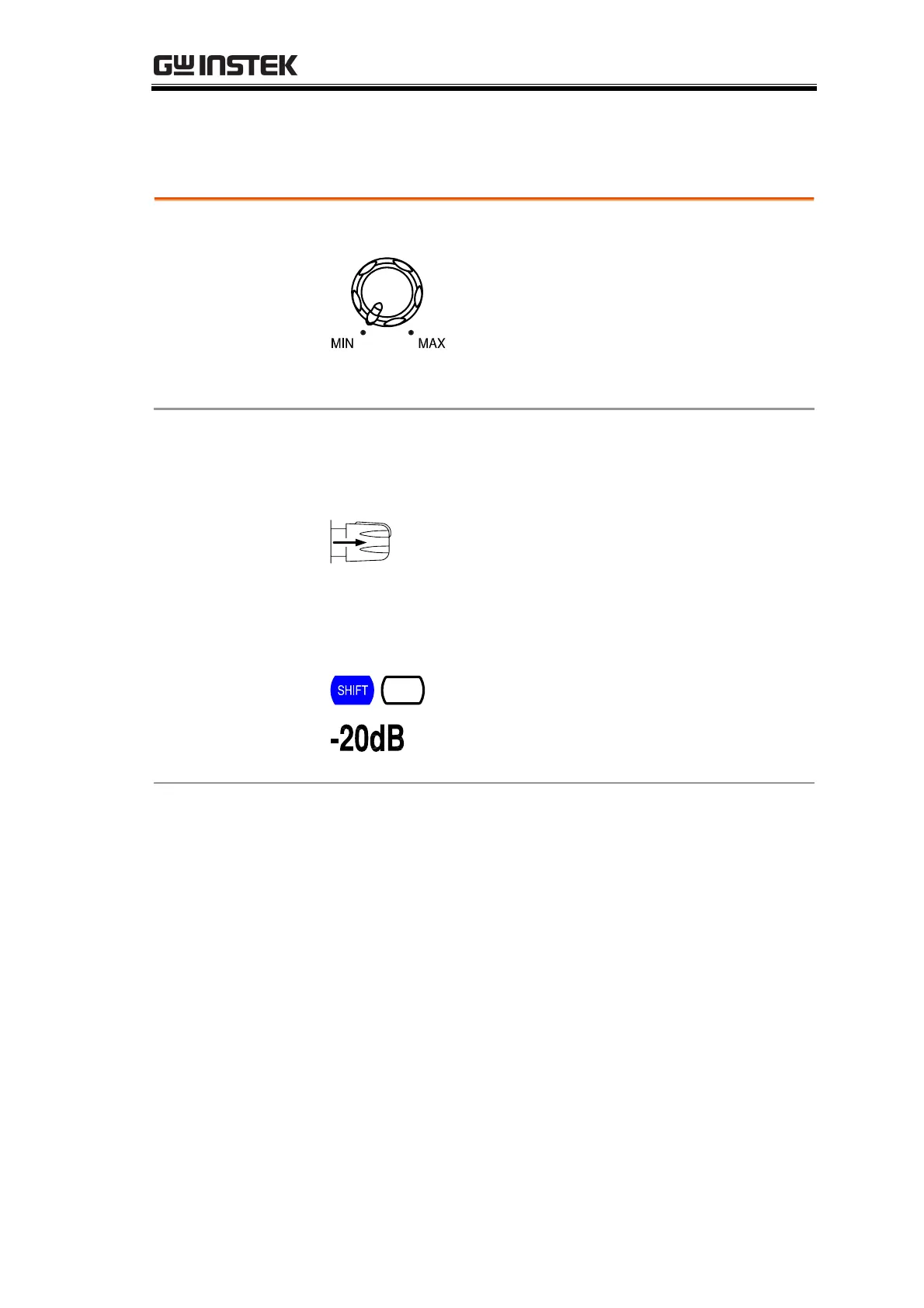

SINE/SQUARE/TRIANGLE WAVE
29
Set Amplitude
Normal
output
ADJ
−20dB
AMPL
Turn the Amplitude knob right
(increase) or left (decrease).
The range is 10Vpp for 50Ω load.
Attenuate by
−20dB
Sine/square/triangle waveform can be attenuated by
−20dB, in two ways: −40dB altogether.
Method1
Pull out the Amplitude knob. The
output amplitude is attenuated by
−20dB (no display sign).
−20dB
8
Method2
Press the shift key, then 8. The output
amplitude is attenuated by −20dB. The
−20dB sign appears on the display.
