SFG-2000 Series User Manual
48

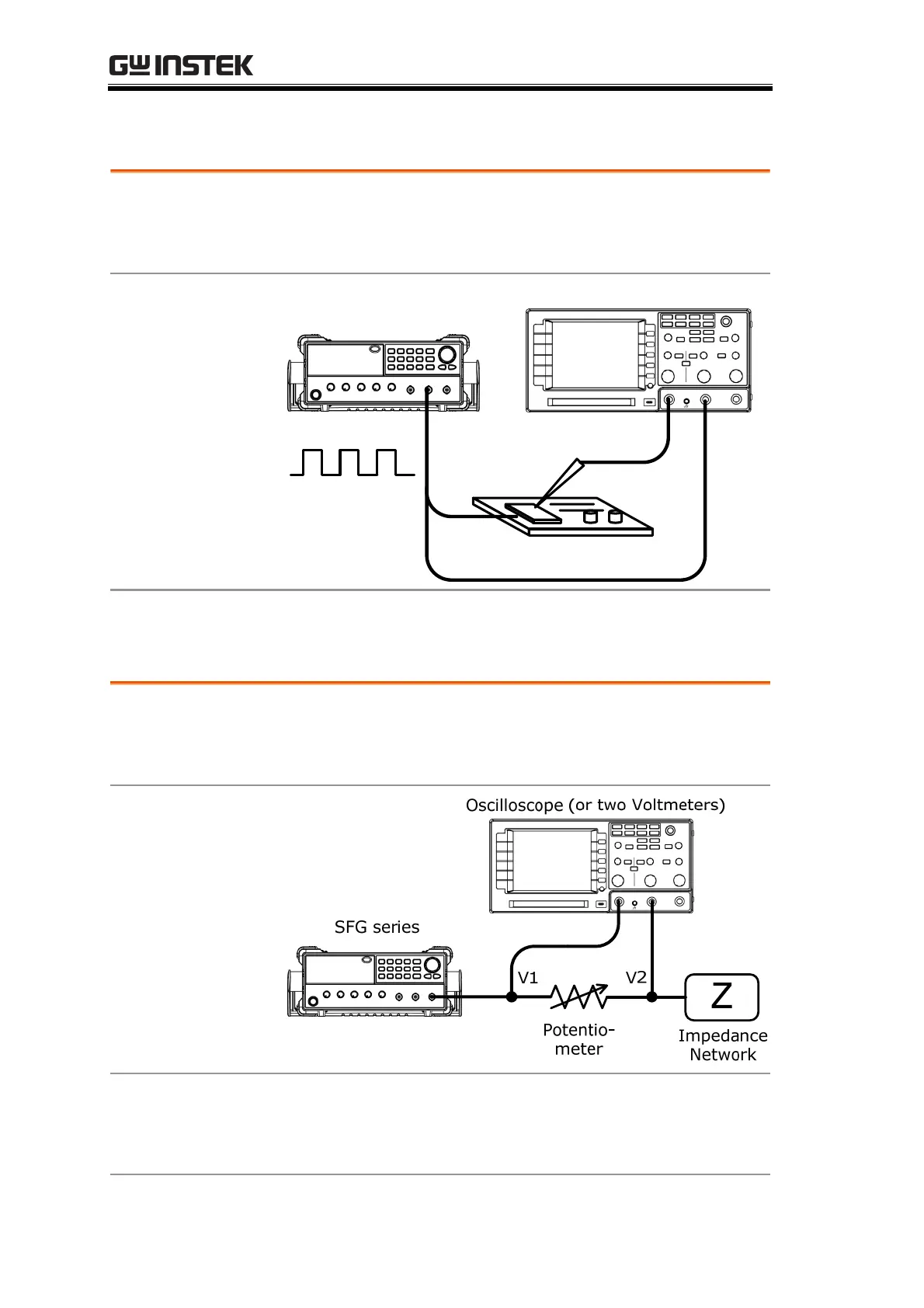

Logic Circuit Test
Description
Use the TTL/CMOS output from SFG-2000 series to
test digital circuits. Observe the timing relation of
input/output waveform using an oscilloscope.
Block diagram
SFG series
Oscilloscope
Digital Circuit
TTL/CMOS Out
Impedance Matching Network Test
Description
Use SFG-2000 series for impedance matching network:
testing its frequency characteristic and matching the
impedance.
Block diagram
Test step
Adjust the potentiometer until V2 becomes the half of
V1 (V2=0.5V1). Then the impedance Z of the network
becomes identical to the potentiometer.
