APPLICATION EXAMPLES
49

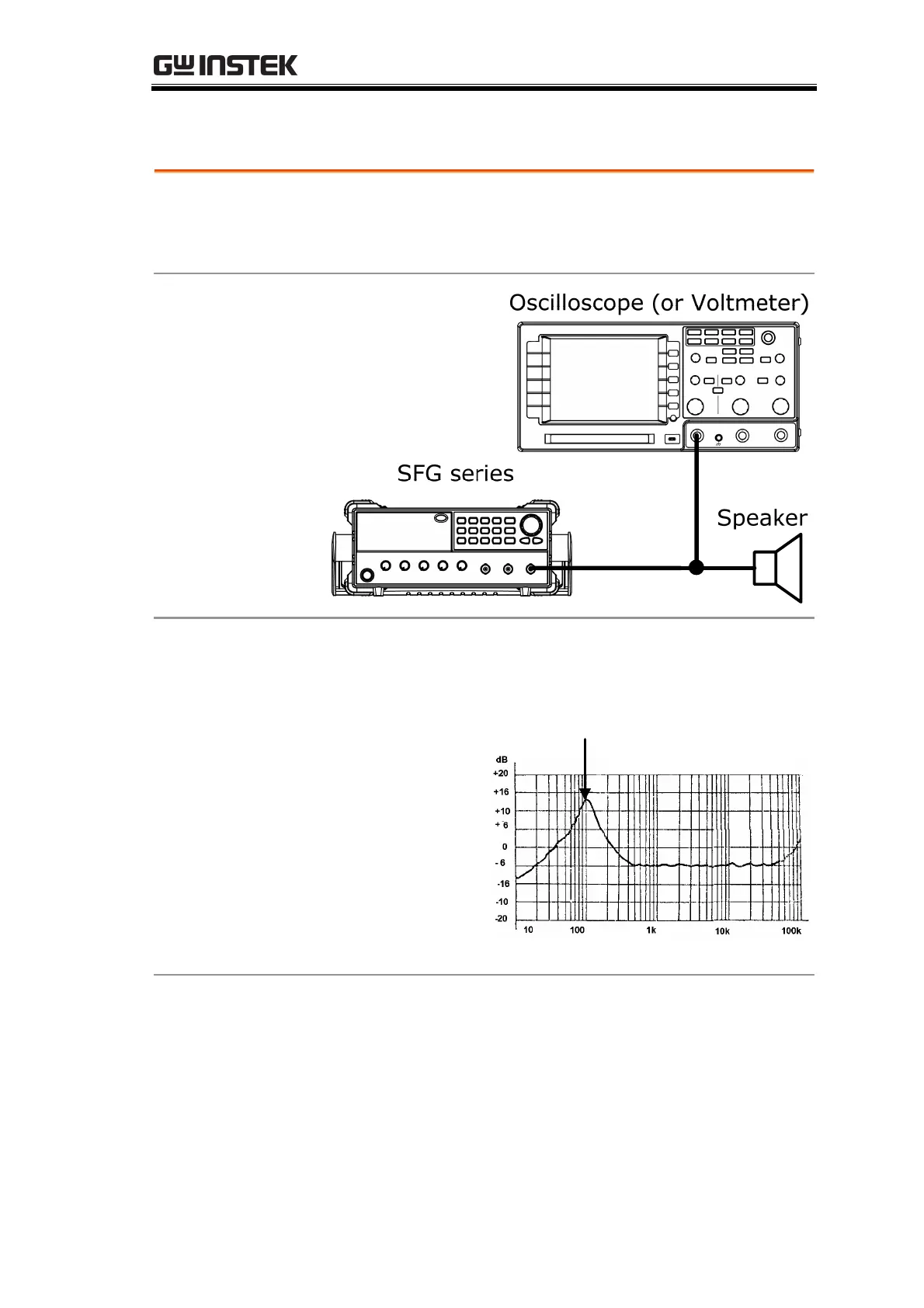

Speaker Driver Test
Description
Use SFG-2000 series for testing the frequency
characteristics of audio speakers. Record the volt reading
versus the input signal frequency.
Block diagram
Graph
The peak voltage occurs on the resonant frequency of
the speaker.
Frequency (Hz)
Peak of Audio Drive Response
Correspondent
Response (dB)
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the GW Instek SFG-2000 Series and is the answer not in the manual?

GW Instek SFG-2000 Series Specifications

General IconGeneral
Square Wave Rise/Fall Time< 30ns
Output WaveformsSine, Square, Triangle, Ramp, Pulse
Output Voltage10 Vpp (into 50Ω load)
Output Impedance50Ω
TTL Output Level> 3V
VCF Input Impedance10kΩ
Power SourceAC 100V / 120V / 220V / 240V ±10%, 50/60Hz
Dimensions280mm
Modulation TypesAM/FM/FSK (SFG-2105 only)
Sine Wave Distortion<1% (20Hz to 200kHz)
