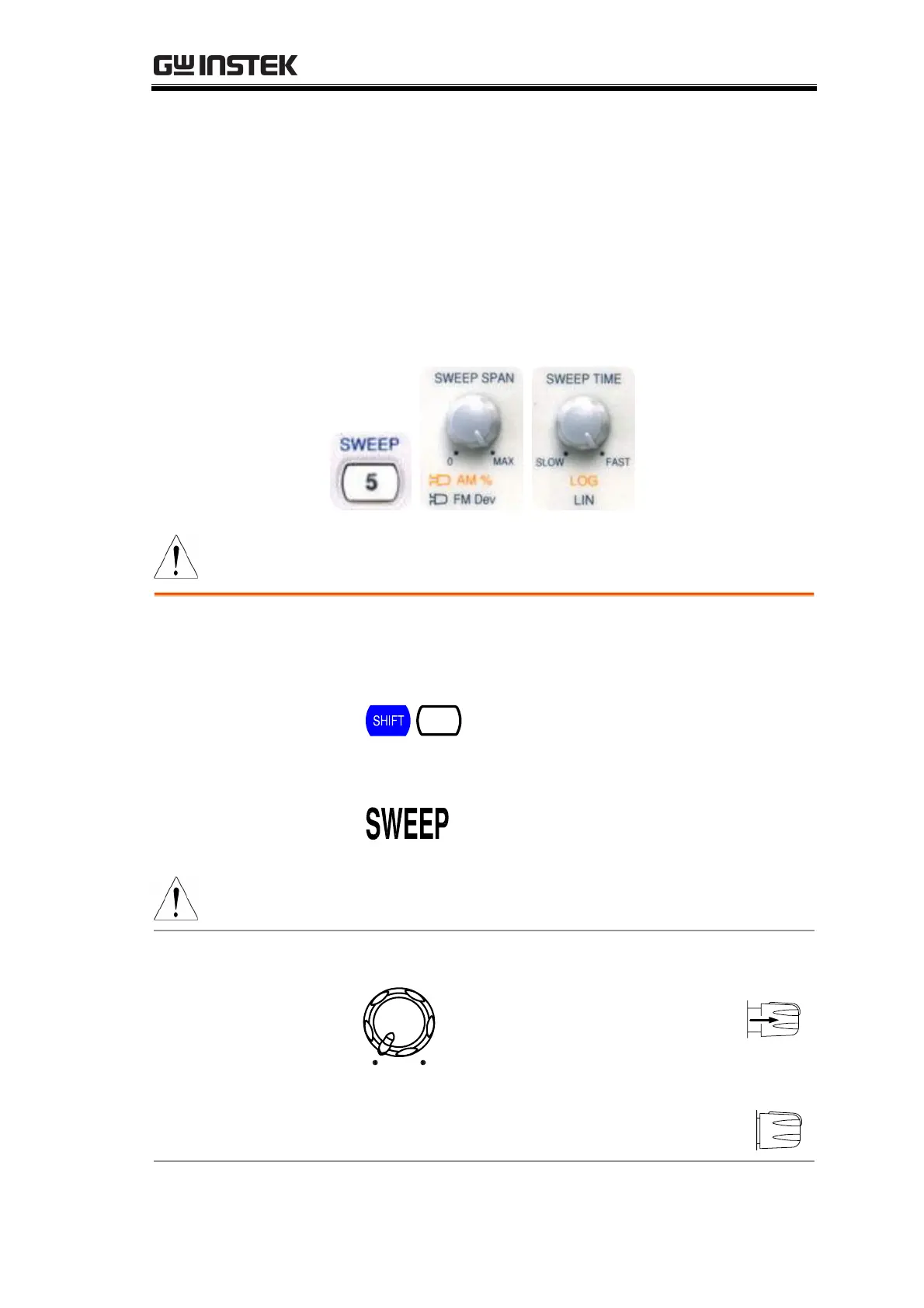

SWEEP
35
SWEEP
SFG can add sweep to the waveform output, a convenient tool for measuring
the frequency response of the DUT.
• Sweep function applies only to SFG-2100 series.
• Sweep and Modulation (page37) cannot be used together.
Activate
sweep
1. Output the waveform. Sine/Triangle/Square
(page
25) or TTL/CMOS (page31).
2. Press the Shift key, then 5 (Sweep).
SWEEP
5
3. Sweep is activated and the sign appears on the
display.
When the sweep is activated, the duty cycle of
Square/TTL/CMOS wave is fixed to 50%.
Select
Log/Lin
Sweep
LIN
LOG
SWEEP TIME
SLOW FAST
Logarithmic Sweep:
Pull the SWEEP TIME knob.
Linear Sweep:
Push the SWEEP TIME knob.
