safety, installation and commissioning
file: n:\article\cos14310m5-v1_08hpc-en\20150130_cos14310m5-v1.08hpc-en_instructions_for_use_h-p-cosmos_treadmill.doc
© 2015 h/p/cosmos sports & medical gmbh author: fh email@h-p-cosmos.com created 30.01.2015 printed 30.01.2015 page: 103 of 216

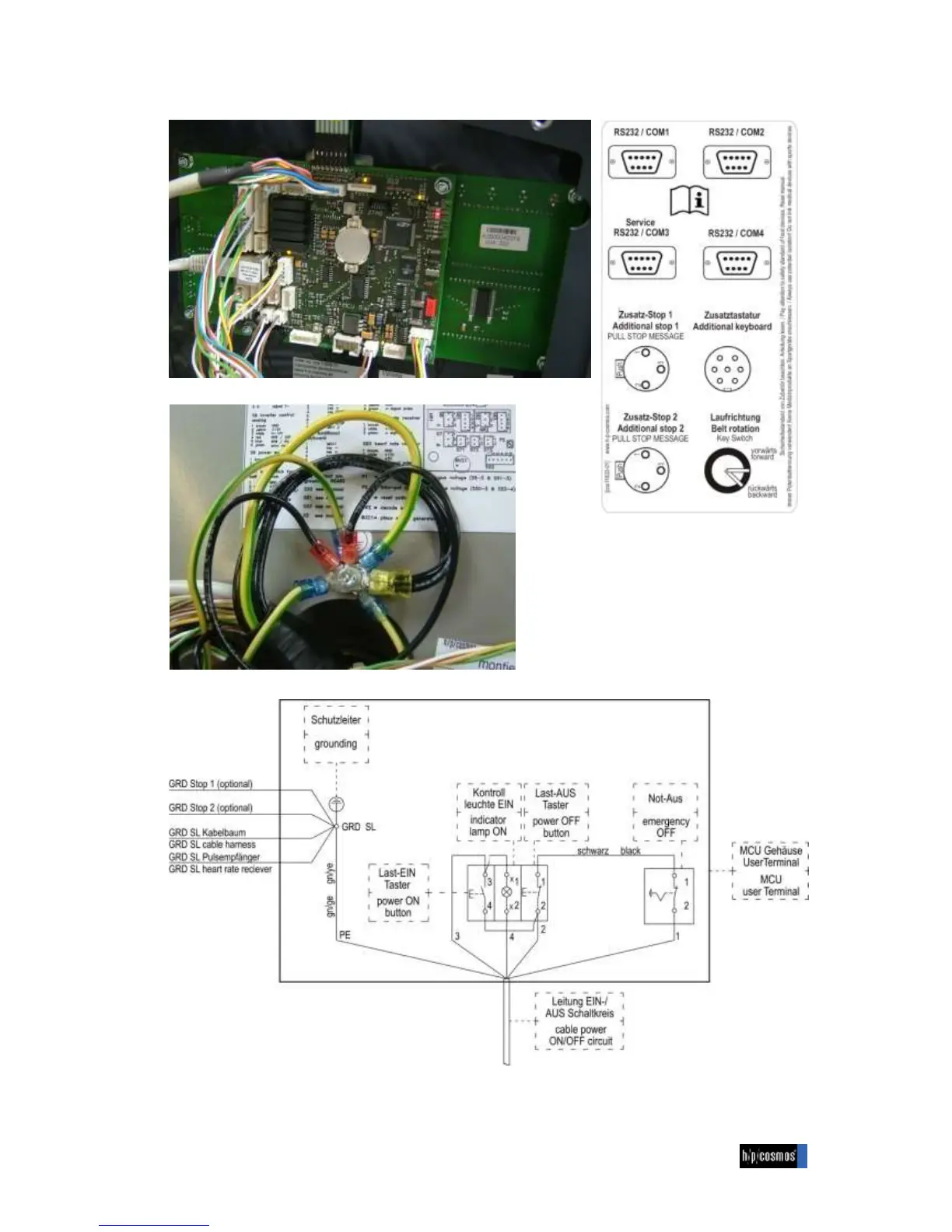

MCU5-control-board and display board inside the UserTerminal
Sticker for plug references at the
back plate of the UserTerminal
Sticker for plug references at the
External UserTerminal control unit
differs.
Ground connection at the UserTerminal
Cable connection for ON/OFF button and emergency stop in the UserTerminal. GRD = ground (until manufacturing date 12/2007)
