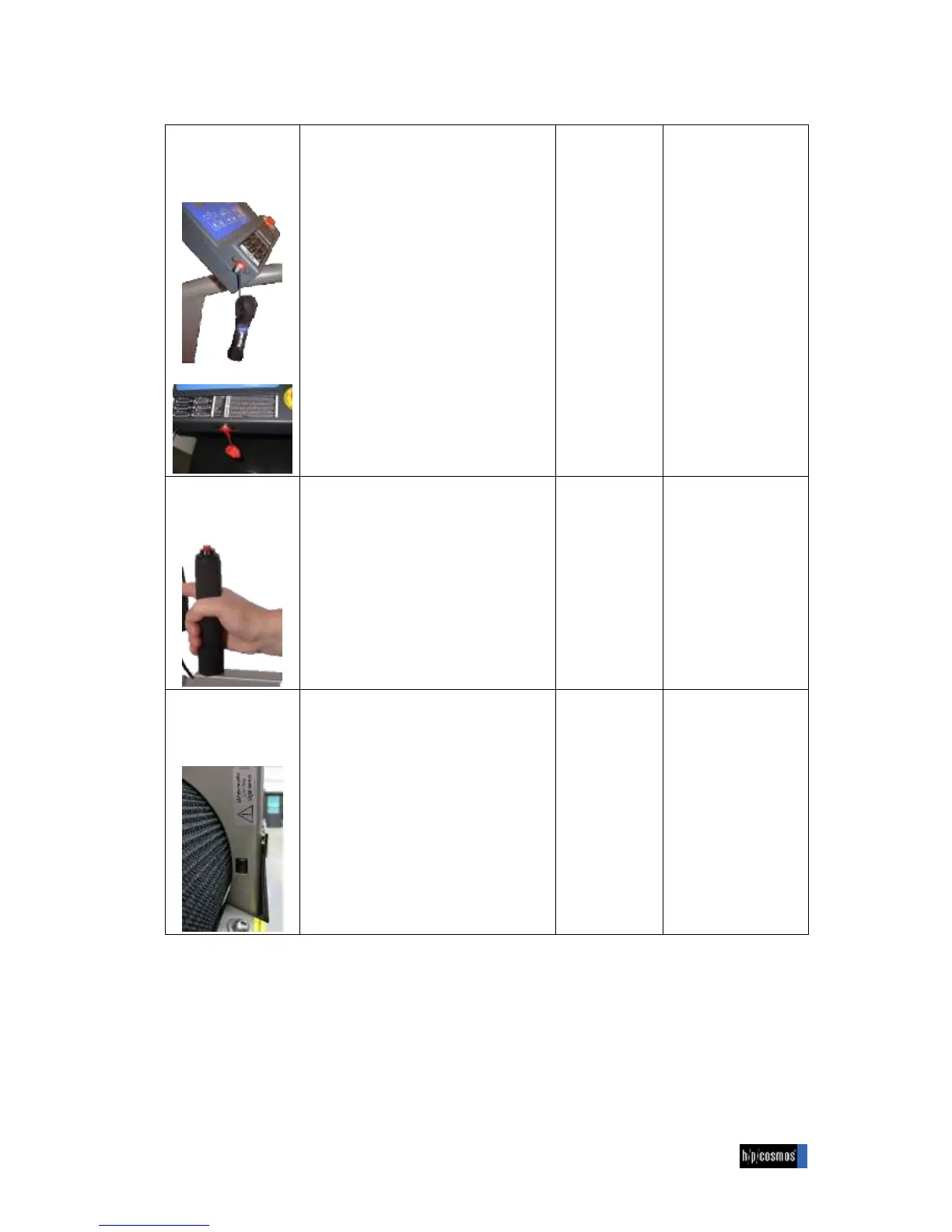

emergency stop
switch (safety
lanyard with
actuator & pull cord)
N subject struggles, cord pulls out the
magnet
N running belt & inclination system stop fast
N machine is NOT cut off from main power
of drive motor and inclination system
N display active, shows “PULL STOP”
N interface active, but no start, speed or
elevation signal executed
N keyboard inactive
The emergency stop switch (safety lanyard
with actuator, pull cord and clip) of the
150/50 LC (pluto) cuts off the main power -
no message is shown at the dispays
NOT
interrupted
during
“PULL STOP”
stage
N reconnect magnet to
its position at
UserTerminal
N press START key or
new command via
interface
Additional stop
button
for arm support
N Stop button is pushed
N running belt & inclination system stop fast
N machine is NOT cut off from main power
of drive motor and inclination system
N display active, shows “PULL STOP”
N interface active, but no start, speed or
elevation signal executed
N keyboard inactive
NOT
interrupted
during
“PULL STOP”
stage
N release push force
from the button
N press START key or
new command
through interface
Quick stop
by light barriers
(venus / saturn)
N light beam is interrupted
N running belt & inclination system stop
extremely fast
N drive motor is used to stop the running belt
very fast
N machine is NOT cut off from main power
of drive motor and inclination system
N display active and shows “PULL STOP”
N interface active, but no start, speed or
elevation signal executed
N keyboard inactive
NOT
interrupted
during Quick
Stop stage
N remove obstacle from
light beam
N „pull-stop“ advice
stays for 10 seconds
N press START key
or new command
through interface
