Mounting the Instrument on the Wall
54400_install.fm
Section 1

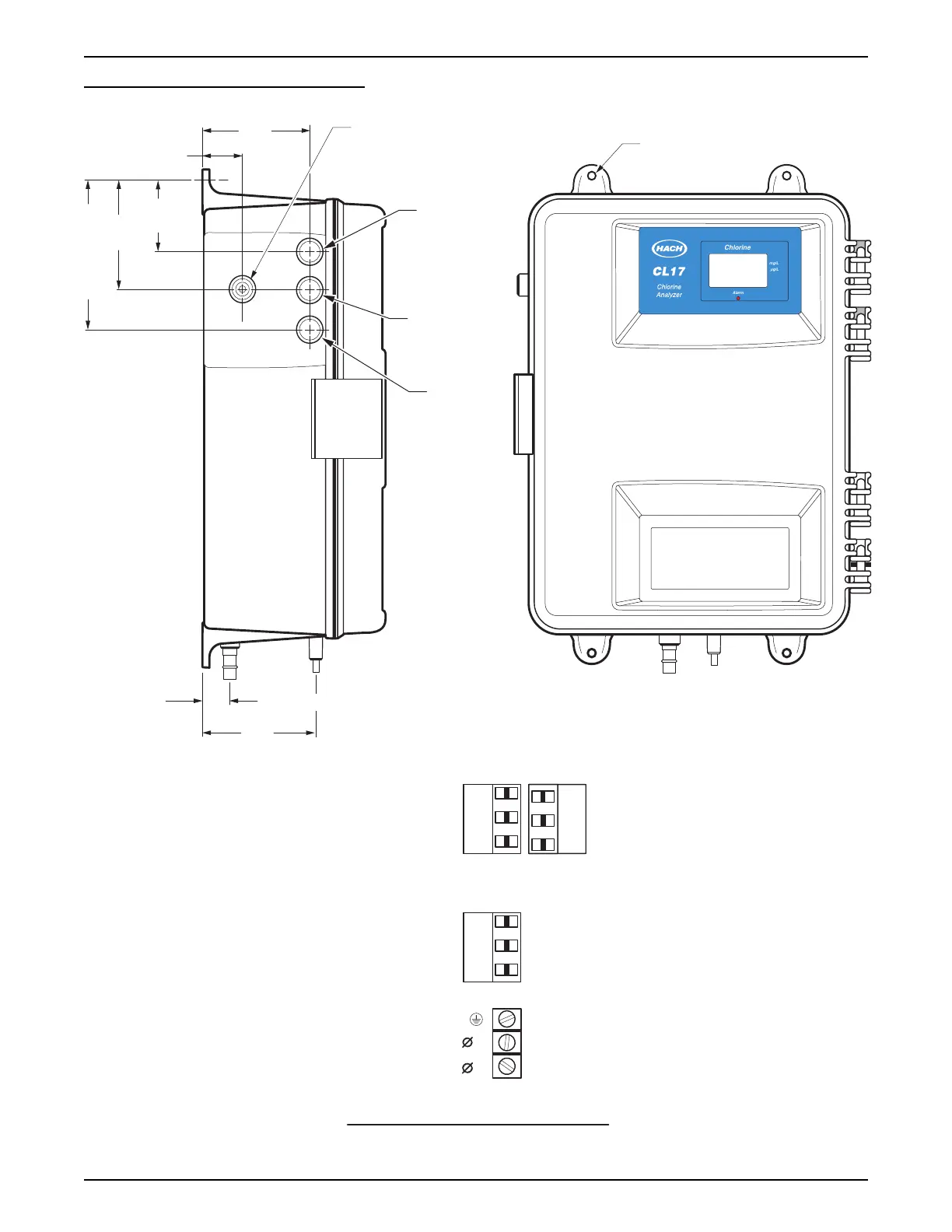

Figure 1 CL17 Instrument Dimensions (1 of 3)
Air Purge Quick Connect
.25 O.D. Polyethylene Tubing
(Cat. No. 47438-00)
Relay/Alarm
Contact
Connections
4 x 1/4 Recommended
Mounting Bolt
″
Network and
4-20 mA
Connections
Power
Connections
4.09
(103.88 mm)
″
2.66″
(67.55 mm)
5.61 (142.48 mm)″
4.02
(102.17 mm)
″
4.38
(111.12 mm)
″
1.56
(39.68 mm)
″
Drawing Number: 54400-87
Revision: A, 02-16-00
1.06 (26.99 mm)″
EXIT ENTER
Chlorine
mg/L
Alarm
µg/L
MENU
Customer Connections to Analyzer
NC
RELAYS
#1 #2
NO
COM
COM
NO
NC
Power: 100-115/230 Vac, 50/60 Hz, 95 VA (fused at 2.50A)
+
RECORDER
-
GND
GND
WHT 2
BLK 1
1
1
1
2
2
2
3
3
3
A
C
P
o
w
e
r

Hach CL17 Specifications

General

Power Requirements	100-240 V AC, 50/60 Hz
Outlet Pressure	Atmospheric
Measurement Method	Colorimetric DPD method
Sample Interval	2.5 minutes
Operating Temperature	5 - 40 °C (41 - 104 °F)
Parameter	Free or Total Chlorine
Operating Humidity	5 - 95% non-condensing
Sample Temperature	0 to 40°C (32 to 104°F)
Sample Flow Rate	200 to 500 mL/min
Power Consumption	Approximately 50 W
Output	4-20 mA, RS-232
Relays	Two relays
Enclosure	NEMA 4X
Resolution	0.01 mg/L
Accuracy	±5% or ±0.03 mg/L (whichever is greater)
