Advanced Operations
Relation between input current and calculated concentration

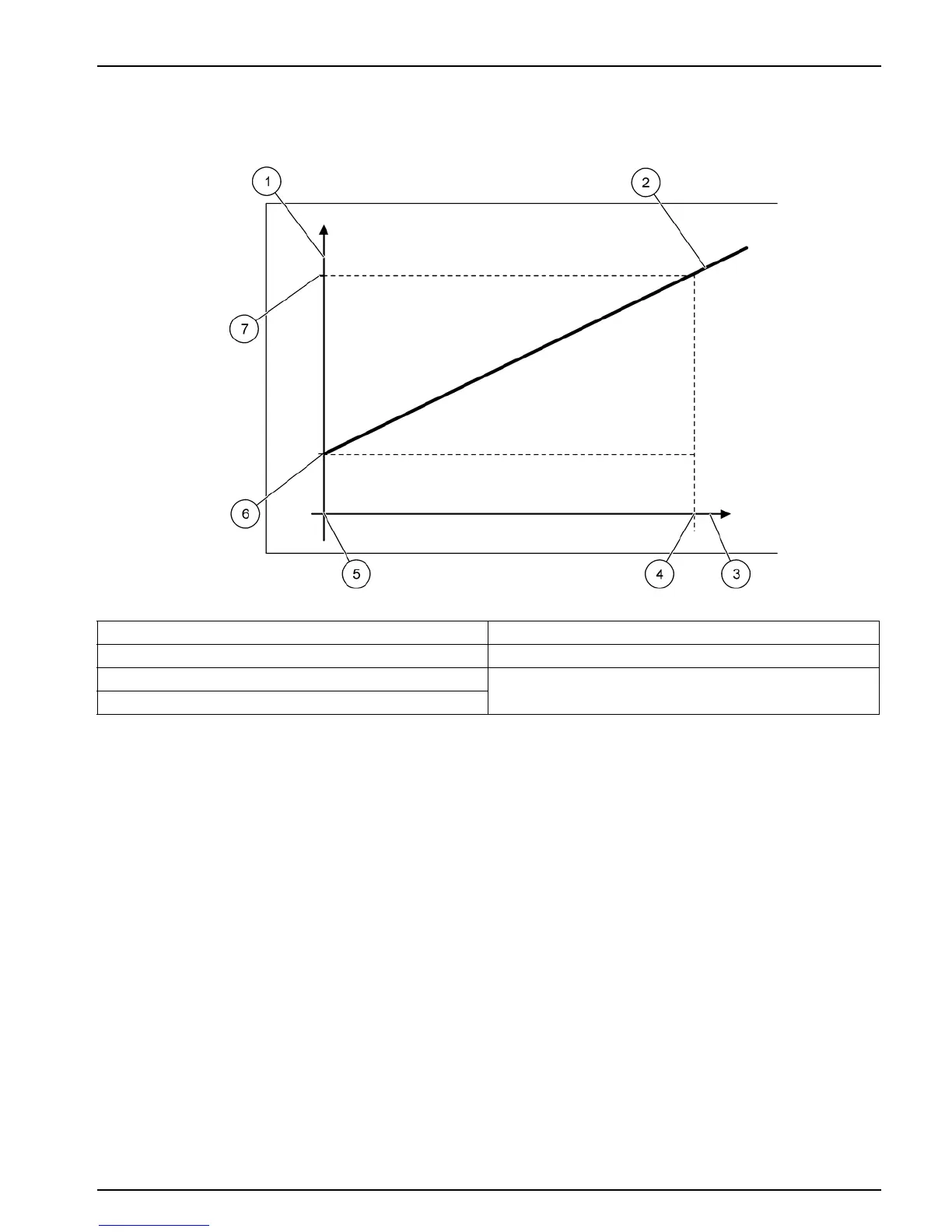

Figure 52 shows the output value depending on the input current, the set low value and
the set high value with an input range of 0
–20 mA.
The output value (OV) is a function of the input current (IC).
The output value is determined according to formula (3):
(3)
where:
OV=Output value
IC=Input current
LV=Low value
HV=High value
Figure 52 Output value with an input range of 0
–20 mA
1 Output value (concentration) (x-axis) 5 0 mA
2 OV=f(IC) 6 Low value (LV)
3 Input current (IC) (y-axis) 7 High value (HV)
4 20 mA
OV f(IC) IC
HV-LV
20mA
-----------------
× LV+==

Hach sc1000 Specifications

General

Operating Temperature	-20 to 60 °C (-4 to 140 °F)
Inputs	Up to 2 digital or analog sensors
Outputs	2 analog, 2 relay
Communication	Modbus
Power Supply	100-240 VAC
Enclosure Rating	IP66, NEMA 4X
