Hach sc1000 User Manual

86
Advanced Operations
Figure 53 shows the output value depending on the input current, the set low value and
the set high value with an input range of 4
–20 mA.
The output value (OV) is determined according to formula (4):
(4)
where:
OV=Output value
IC=Input current
LV=Low value
HV=High value

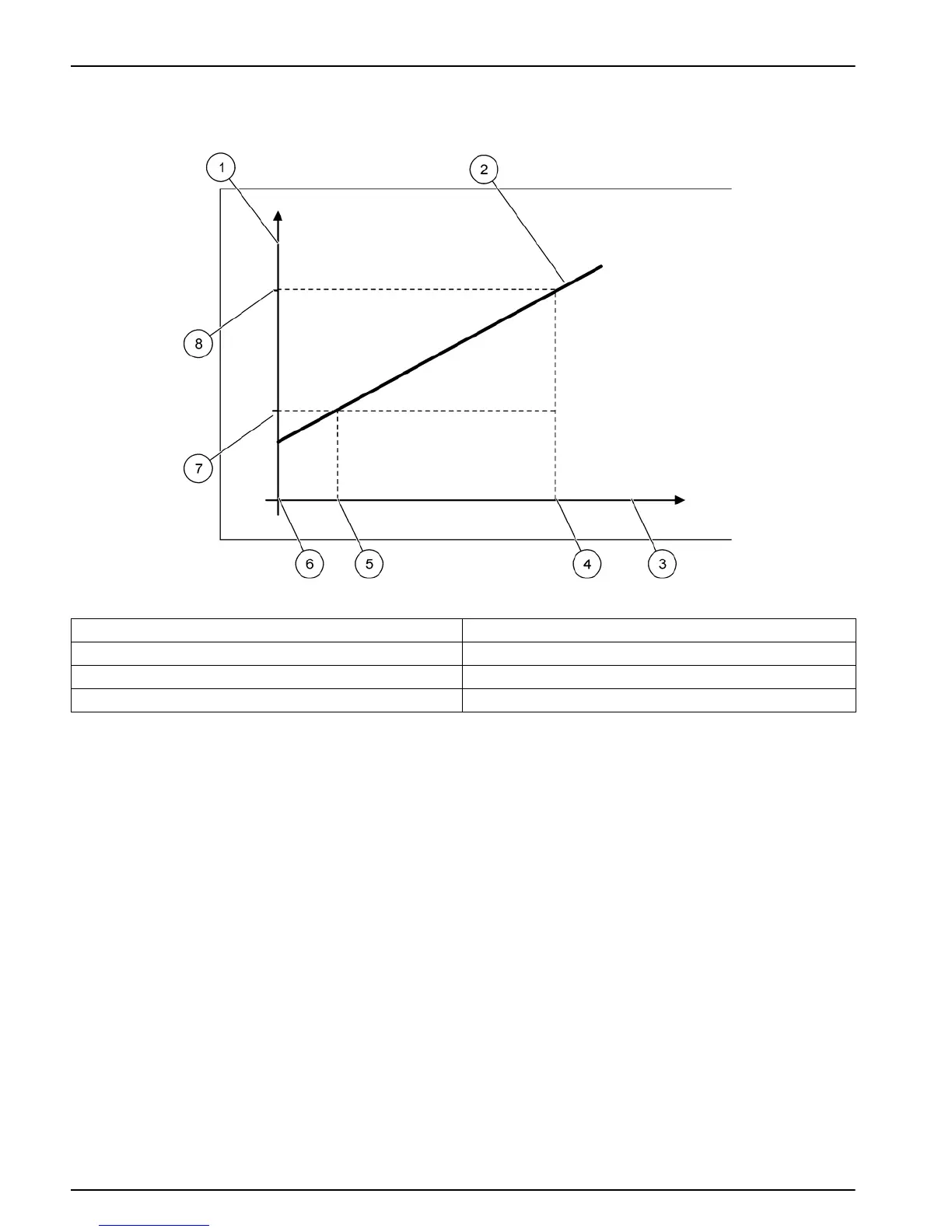

Figure 53 Output value with an input range of 4
–20 mA
1 Output value (concentration) (y-axis) 5 4 mA
2 OV=f(IC) 6 0 mA
3 Input current (x-axis) 7 Low value (LV)
4 20 mA 8 High value (HV)
OV f(IC)
HV-LV
16mA
-----------------
(IC-4mA)× LV+==

Hach sc1000 Specifications

General

Operating Temperature	-20 to 60 °C (-4 to 140 °F)
Inputs	Up to 2 digital or analog sensors
Outputs	2 analog, 2 relay
Communication	Modbus
Power Supply	100-240 VAC
Enclosure Rating	IP66, NEMA 4X
