3-3. LCD display
3-3-1. Blood Velocity Mode
Waveforms

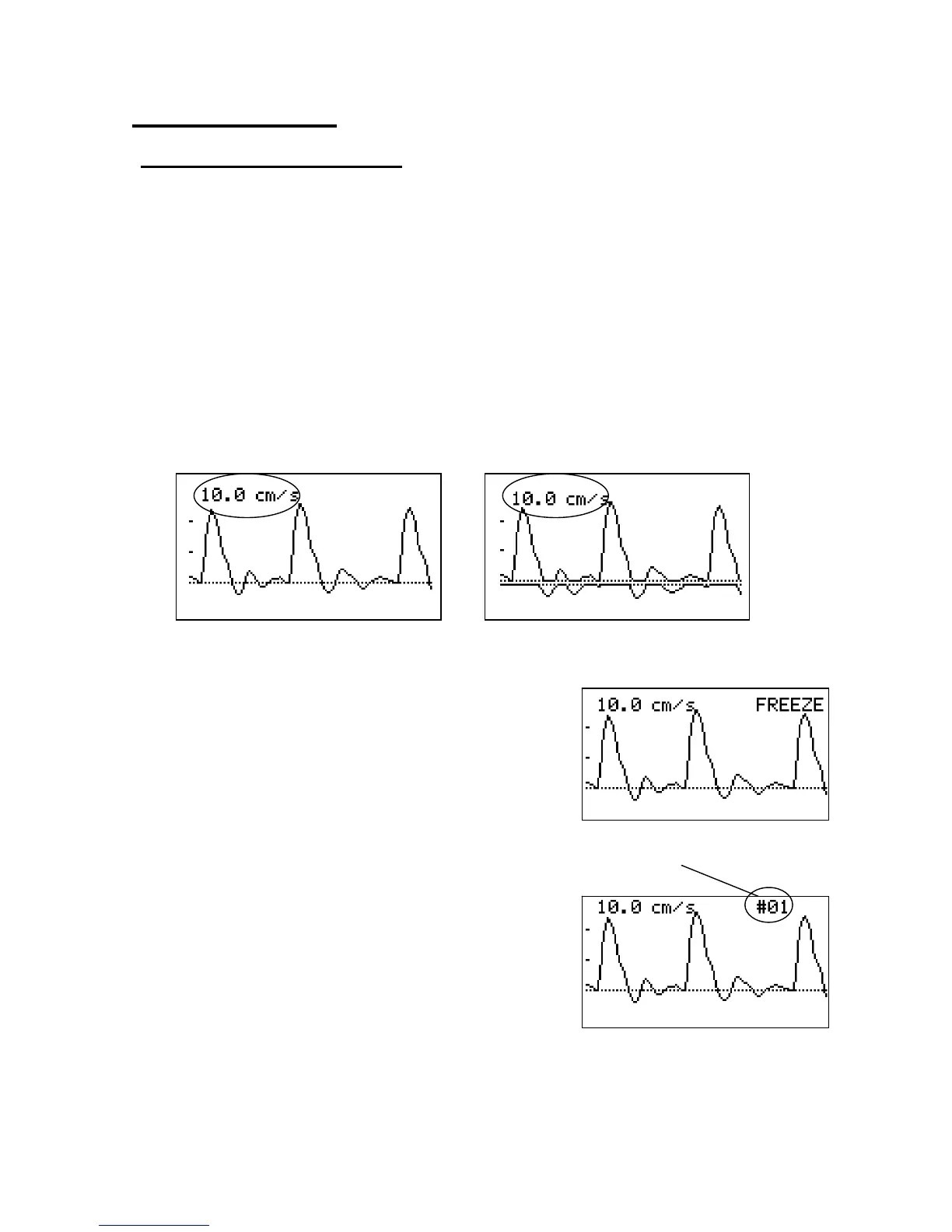

(1) The base line is automatically located at optimal position for each waveform.
Smartdop has 4 base lines, the bottom, 1/4 from the bottom, the center, and 3/4
from the bottom.
(2) The waveform amplitude is automatically adjusted for optimal observation.
(3) The amplitude scale (velocity or frequency per division) is displayed on top left of
LCD.
(4) When pressing probe button to freeze the
waveform, Smartdop will stop monitoring
sequence and will display frozen waveform with
“FREEZE”.
(5) The read out waveform is displayed with
memory number, e.g. "#01" on top right of LCD.
Compound mode
Memory number
Separate mode
