HALE FLEX Series - Figure 5. Visually Determining Engine or Opposite Engine Rotation

10

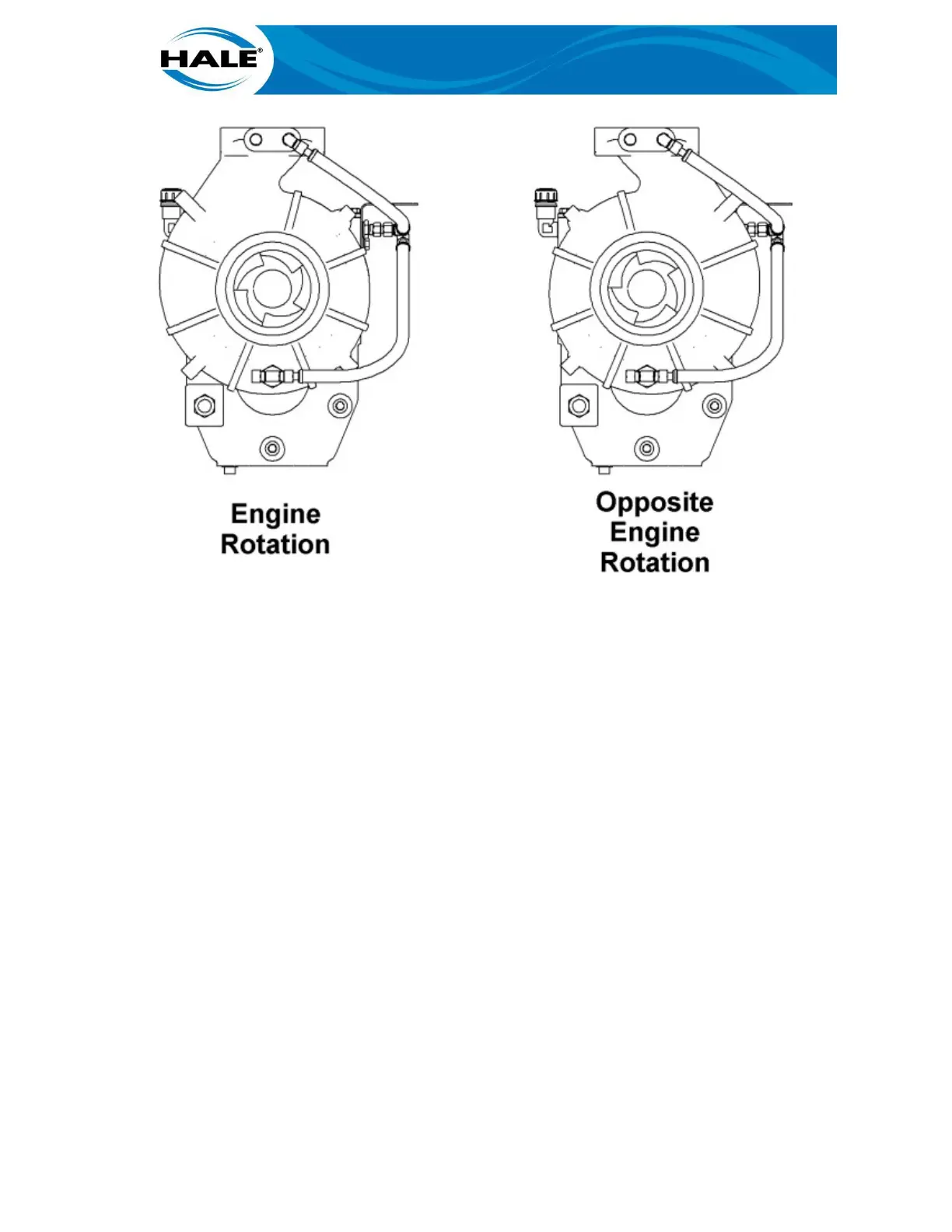

Figure 5. Visually Determining Engine Or Opposite Engine Rotation
Additional theory of operation is provided in FSG–MNL–00184, Technical Manual For Hale Single
Stage Booster Pumps that is located on the flash drive provided with the pump or available from the
TECH RESOURCE CENTER on the Hale Products website (www.haleproducts.com).
