25
B. Place Oil Safe Catch Container. (See Figure 10.)
C. Drain fluid. (Remove magnetic drain plug.) (See Figure 10.)
CHECK MAGNETIC DRAIN PLUG FOR DEBRIS. IF SIGNIFICANT METAL FRAGMENTS ARE
PRESENT, REPORT CONDITION TO AHJ SO SERVICE CAN BE PERFORMED.
D. Inspect, clean, and install magnetic drain plug. (See FSG–MNL–00184, Technical
Manual For Hale Single Stage Booster Pumps, if excessive metal is found on drain
plug. This manual and additional information can be found on the flash drive provid-
ed with the pump or on the Hale website [www.haleproducts.com].)
NOTE
A funnel may make adding fluid easier and safer.

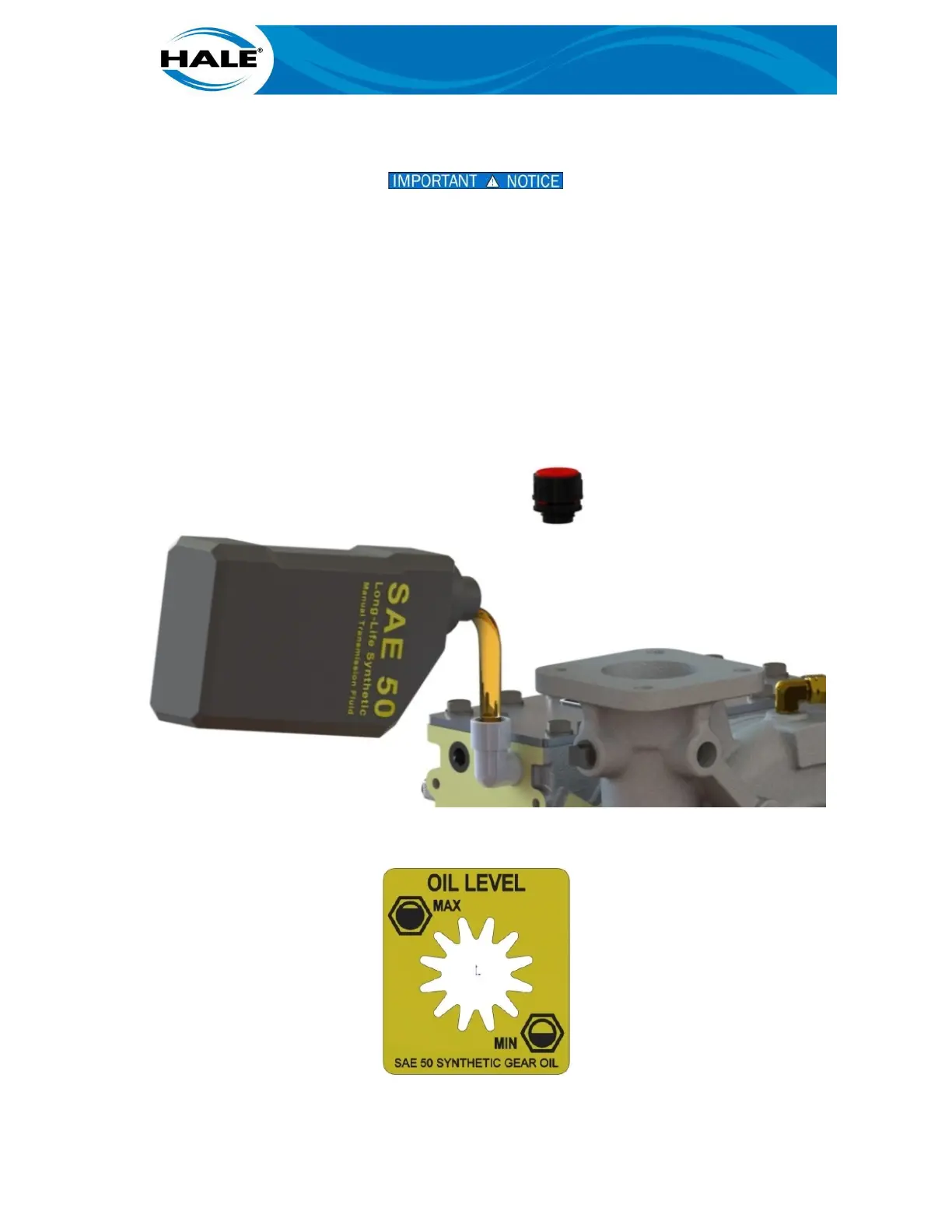

E. Add fluid. (See Figure 11) (Remove Oil Fill Breather and add proper fluid until sight
glass indicates 1/2 to 3/4 covered by fluid. See Figure 12.)
Figure 11. Fill Gearbox With Fluid
Figure 12. Fluid Level
