4.3.2
(wall thickness up to 800mm (31 in) only – WALL LINER
REQUIRED)
a) Using Fig 18 as a step-by-step guide, insert the terminal end
of the flue system with external sealing ring (grey) through the
wall liner ensuring that the terminal is the correct way up.
b) Pull the flue system back towards the boiler to seat the external
sealing ring against the outside wall.
c) Ensure the necessary gasket and ‘O’-ring seal(s) are fitted to
the flanged elbow and secure to the boiler using the screws
provided (Fig 19).
d) Use the internal sealing ring (white) to make good the internal
wall face and check that the terminal is correctly fitted to the
outside wall.
e) Ensure all ducts are engaged correctly and secured with the
self-tapping screws provided in the kits.
INSTALLING THE HORIZONTAL
DUCT FROM INSIDE THE BUILDING
4.3.3
(Flue hole diameter 100mm – Wall liner not required)
a) Using Fig 19 as a step by step guide secure the turret elbow
to the boiler ensuring that the gasket and ‘O’-ring seal(s) are
correctly fitted.
b) From outside the building, insert the flue system with external
wall sealing ring (grey) fitted to the terminal through the wall.
Ensure the terminal is the correct way up.
c) From inside, fit the internal sealing ring (white) and pull the
flue system towards the boiler to seat the external sealing ring
on the outside wall.
d) Fit and secure the flue system to the turret elbow.
e) Make good the internal wall using the internal sealing ring,
and check that the terminal is correctly fitted to the outside
wall.
f) Ensure all ducts are engaged correctly and secured with the
self-tapping screws provided in the kits.
INSTALLING THE HORIZONTAL
DUCT FROM OUTSIDE THE BUILDING

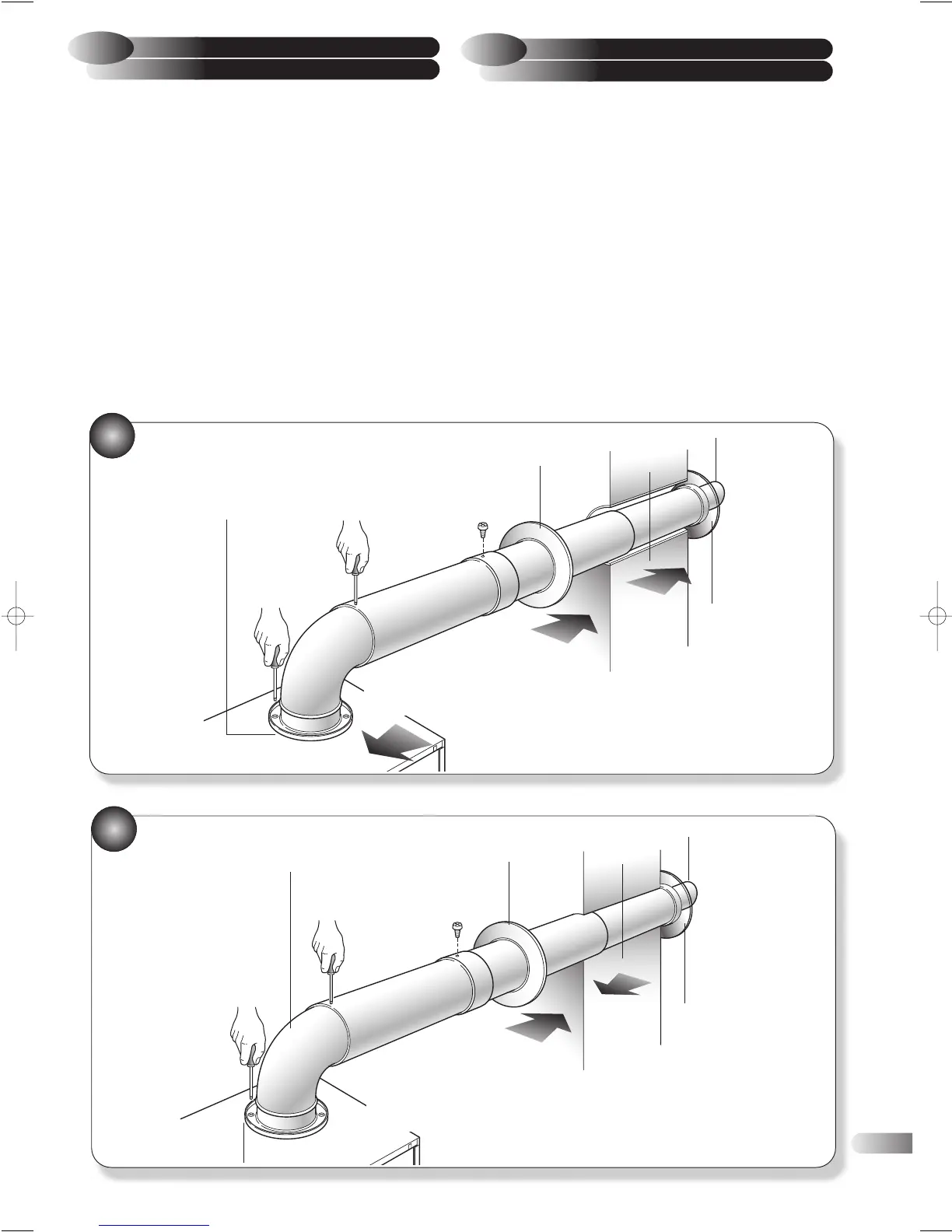

18
•
•
•
2 ALIGN ASSEMBLED FLUE
SYSTEM ELBOW TO
APPLIANCE AND SECURE
3 SLIDE INTERNAL WALL
SEALING RING TO WALL TO
FORM A GOOD SEAL
1 INSERT
ASSEMBLED FLUE
SYSTEM FROM
INSIDE THE
ROOM. EXTERNAL
WALL SEALING
RING OPENS
•
EXTERNAL WALL
SEALING RING
130mm Dia.
HOLE WITH
WALL LINER
INTERNAL WALL
SEALING RING
•
TOP
•
FIBRE
SEAL FITTED
INSTALLING THE FLUE SYSTEM FROM
INSIDE THE ROOM
19
•
•
•
•
4 REFIT AND SECURE
ELBOW TO AIR DUCT,
THEN TO APPLIANCE
3 SLIDE INTERNAL
WALL SEALING RING
OVER AIRDUCT. PUSH
AGAINST THE WALL TO
FORM A GOOD SEAL
2 INSERT FLUE
LENGTH FROM
OUTSIDE THE
ROOM. ENSURE
EXTERNAL WALL
SEALING RING
FORMS A GOOD
SEAL
•
EXTERNAL
WALL
SEALING
RING
100mm
Dia.HOLE
INTERNAL WALL
SEALING RING
TOP
•
FIBRE
SEAL FITTED
INSTALLING THE FLUE SYSTEM
FROM OUTSIDE THE BUILDING
•
1 FIT ELBOW (AFTER
SETTING CORRECT
LENGTH AND
ALIGNMENT)
13
