INSTALLATION REQUIREMENTS
3
The following limitations MUST be observed when siting the boiler:
a) The boiler is not suitable for external installations. The position
selected for installation should be within the building, unless
otherwise protected by a suitable enclosure, and MUST allow
adequate space for installation, servicing and operation of the
appliance, and for air circulation around it (Section 2.3 and
3.4).
b) This position MUST allow for a suitable flue system and
terminal position. The boiler must be installed on a flat vertical
wall which is capable of supporting the weight of the
appliance and any ancillary equipment.
c) If the boiler is to be fitted in a timber framed building it
should be fitted in accordance with the British Gas
publication ‘Guide for Gas Installations In Timber Frame
Housing’, Institute of Gas Engineers document IGE/UP-7. If
in doubt, advice must be sought from the Local Gas
Supplier.
d) The appliance is approved to a protection rating of IP20.
Therefore if the appliance is to be installed in a room
containing a bath or a shower, any electrical switch or
control utilising mains electricity must be so situated that it
cannot be touched by a person using the bath or a shower.
Attention is drawn to the requirements of the current
BS7671 (I.E.E Wiring Regulations, and in Scotland the
electrical provisions of the Building regulations applicable
in Scotland.
3.2
BOILER LOCATION
6

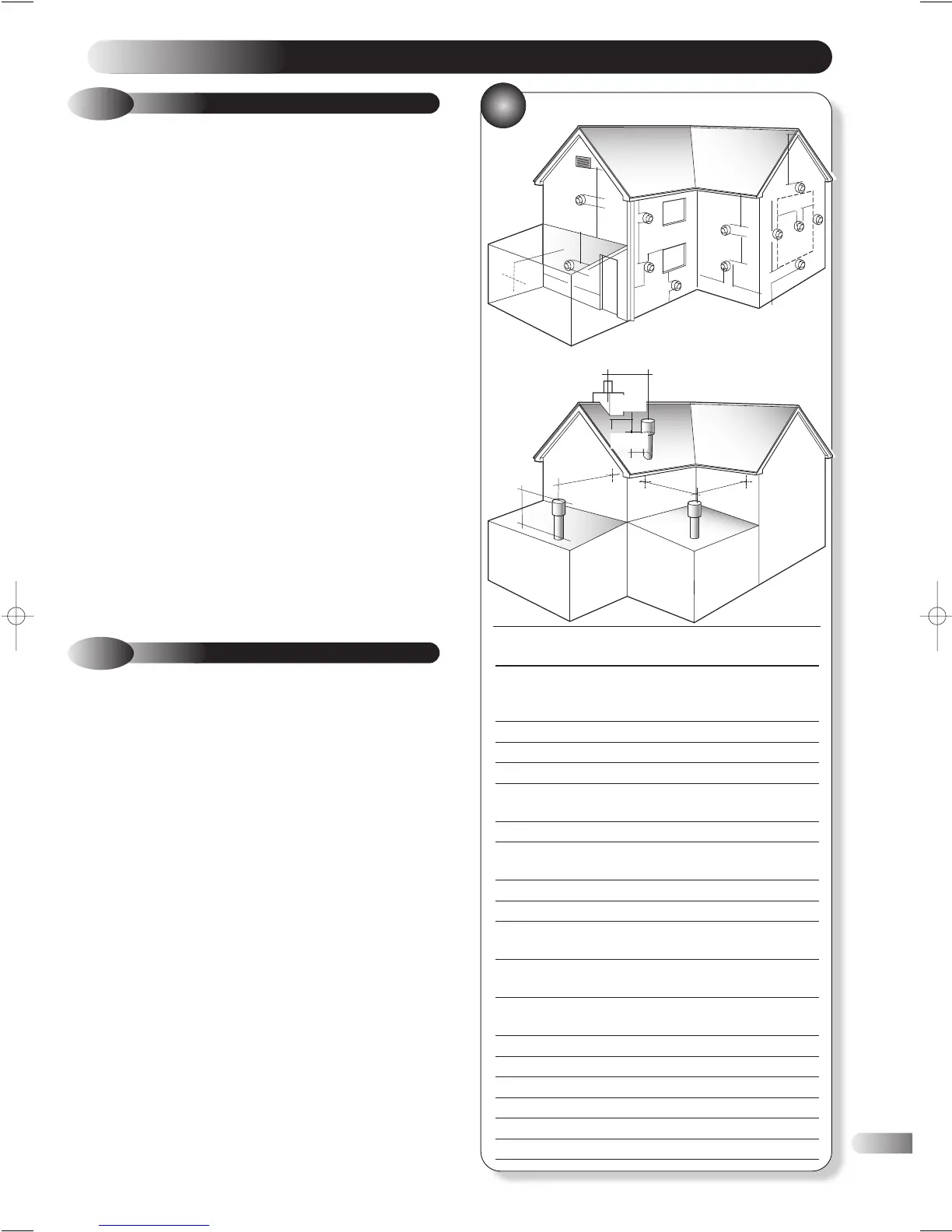

FLUE TERMINAL POSITION
Position Minimum
spacing
A Directly below an openable window, 300mm 12in
air vent, or any other ventilation
opening
B Below gutter, drain/soil pipe 75mm 3in
C Below eaves 200mm 8in
D Below a balcony 200mm 8in
E From vertical drain pipes and 150mm 6in
soil pipes
F From internal or external corners 300mm 12in
G Above adjacent ground or
balcony level 300mm 12in
H From a surface facing the terminal 600mm 24in
I Facing terminals 1200mm 48in
J From opening (door/window) in 1200mm 48in
carport into dwelling
K Vertically from a terminal on the 1500mm 60in
same wall
L Horizontally from a terminal on the 300mm 12in
same wall
M Adjacent to opening 300mm 12in
N Below carport 600mm 24in
O From adjacent wall 300mm 12in
P From adjacent opening window 1000mm 40in
Q From another terminal 600mm 24in
R Minimum height 300mm 12in
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
A
B,C
G
K
M
A
E
F
F
K
B,C
G
G
K
K
L
L
J
F
H,I
D,N
C
Q
O
O
P
R
SPECIAL REQUIREMENTS FOR A
VERTICALLY BALANCED FLUE
3.1
STATUTORY REQUIREMENTS
5
300mm
Min
430mm
Min
The appliance is suitable only for installation in GB and IE and
should be installed in accordance with the rules in force.
In GB, the installation must be carried out by a CORGI Registered
Installer. It must be carried out in accordance with the relevant
requirements of the:
Gas Safety (Installation and Use) Regulations
The appropriate Building Regulations either The Building
Regulations, The Building Regulations (Scotland), Building
Regulations (Northern Ireland).
The Water Fittings Regulations or Water byelaws in Scotland.
The Current I.E.E. Wiring Regulations
Where no specific instructions are given, reference should be
made to the relevant British Standard code of Practice.
In IE, the installation must be carried out by a Competent Person
and installed in accordance with the current edition of I.S.813
“Domestic Gas Installations”, the current Building Regulations and
reference should be made to the current ETCI rules for electrical
installation.
It should also be in accordance with the relevant recommendations
in the current editions of the following British Standards and
Codes of Practice: BS5449, BS5546, BS5440:1, BS5440:2,
BS6798, BS6891, Institute of Gas Engineer document IGE/UP-7
and BS7074 (expansion vessel), and IS813 for IE.
IMPORTANT NOTE: Manufacturer’s instruction must NOT be
taken in any way as overriding statutory obligations.
GAS SAFETY (INSTALLATION AND USE) REGULATIONS (CURRENT EDITION)
