Halton M.A.R.V.E.L. - Interpreting Konsole Software Data

26
M.A.R.V.E.L. Installation Operation & Maintenance Manual
MARVELIO&M/022009/rev1/EN

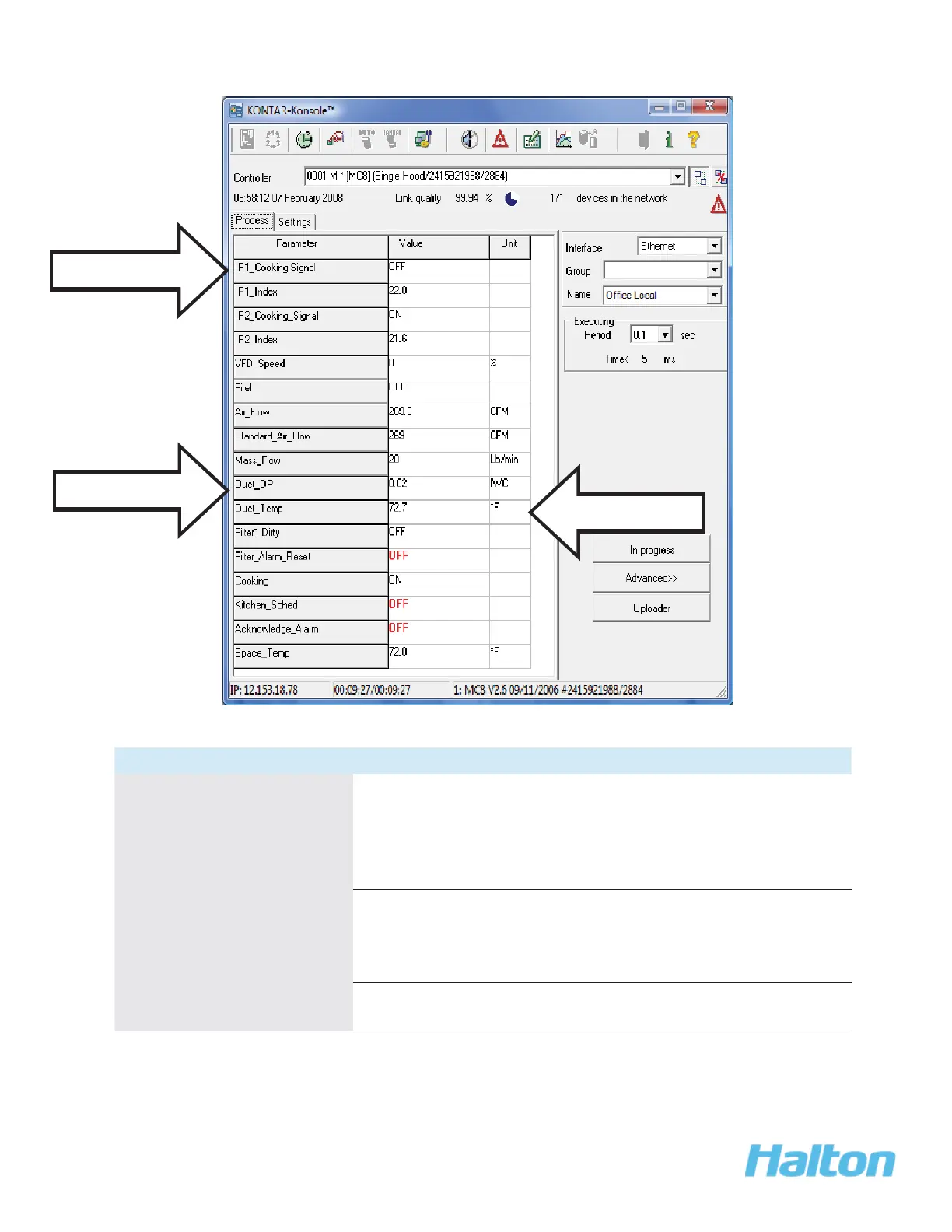

For example:
Display Field Recommended Value and Action
IR1_Index
IR2_Index, etc
Appliance OFF - 59 - 80 ºF•
Appliance ON: > 80 ºF•
Power supply off: -220 ºF•
NOTE: if more than 1 IRIS™ sensor, check each IR_Index
value. If all values are -220 check that power supply.
Duct_DP Exhaust fan OFF: 0.00 IWC•
Exhaust fan ON: up to 1 IWC (single unit)•
Exhaust fan ON: up to 3 IWC (multiple units with •
common duct)
Duct_Temp Cooking: 50 to 150 ºF•
Not cooking: ambient room temperature•
IR# Index
Duct DP
Duct DP
