M.A.R.V.E.L. Installation Operation & Maintenance Manual
MARVELIO&M/022009/rev1/EN
Replace the actuator housing and the exterior metal cover as before.
12.
Balancing Damper Actuator Removal/Replacement

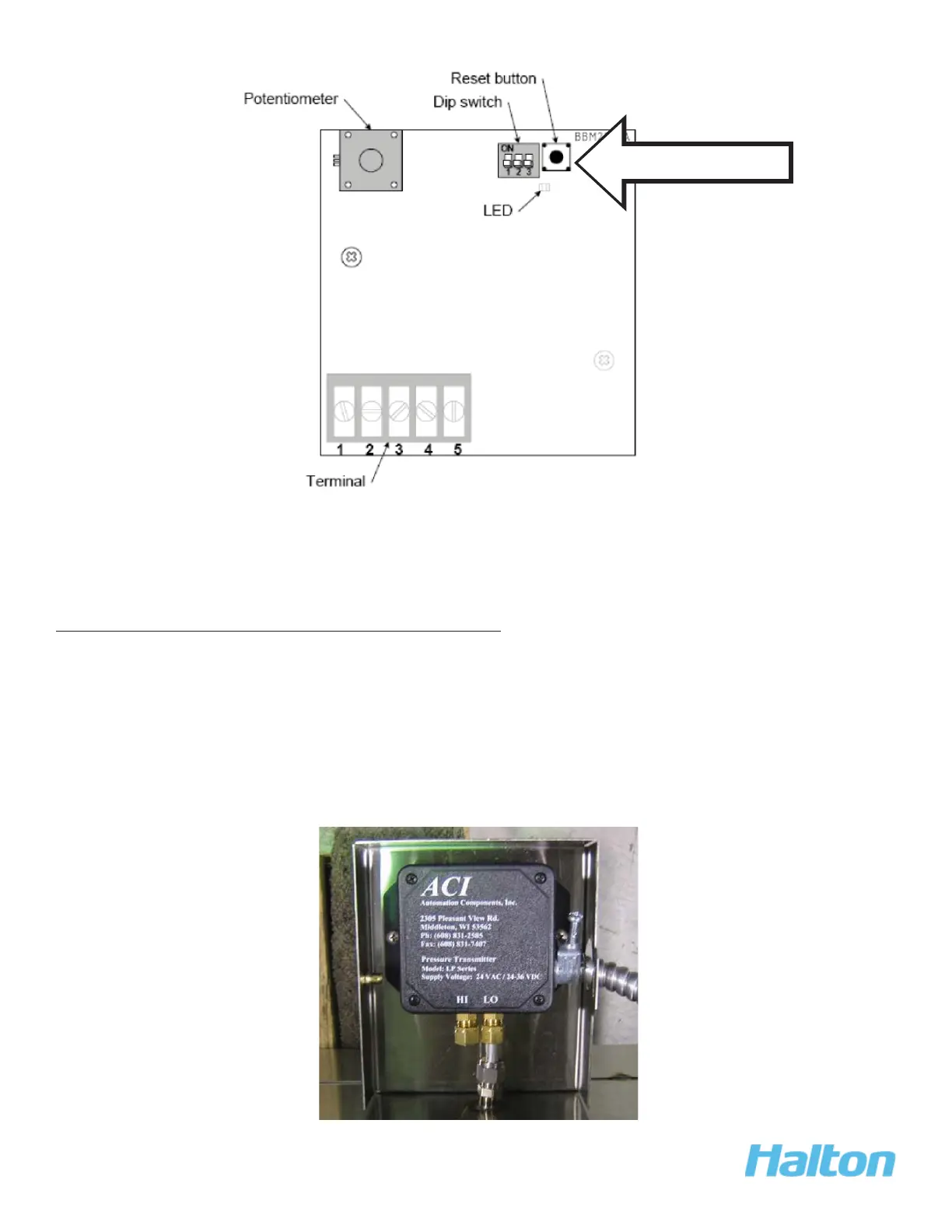

To remove the pressure transducer, follow these steps:
Turn off power to transducer.
1.
Remove covering on pressure transducer mounting bracket.
2.
Disconnect wires.
3.
Disconnect ¼” aluminum tubing fi tting
4.
Reset button
