Temperature Sensor Removal/Replacement
To remove the temperature sensor located in the hood collar, follow these steps:
Disconnect the temperature sensor from the terminal block located in the Capture 1.
Jet
®
hood. Refer to the terminal block diagram on the Halton-supplied wiring diagram
for the correct terminations points.
Unscrew the tightening collar on the temperature sensor. 2.
Remove the temperature probe. 3.
Replace the defective temperature probe with a replacement (Halton Part # 17641) 4.
Reconnect wiring. 5.

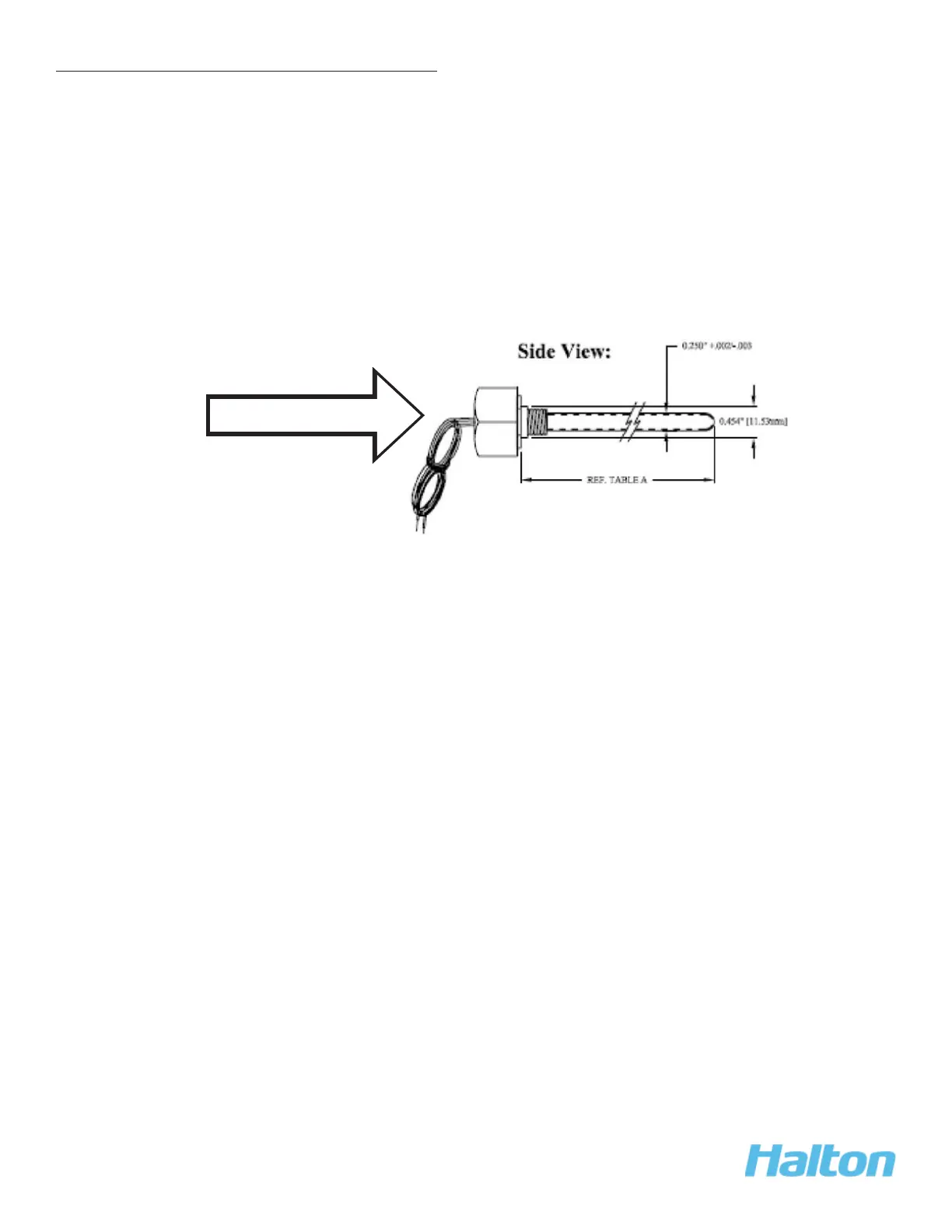

2. Unscrew collar
