Replace with a replacement actuator (Halton Part # 16012). Tighten the U-bolt on the 7.
drive shaft.
Reset the DIP switches.
8.
Reset the stop screws. 9.
Reconnect the power. 10.
Calibrate the new actuator by pressing the 11. Reset button. The dampers will open and
close.

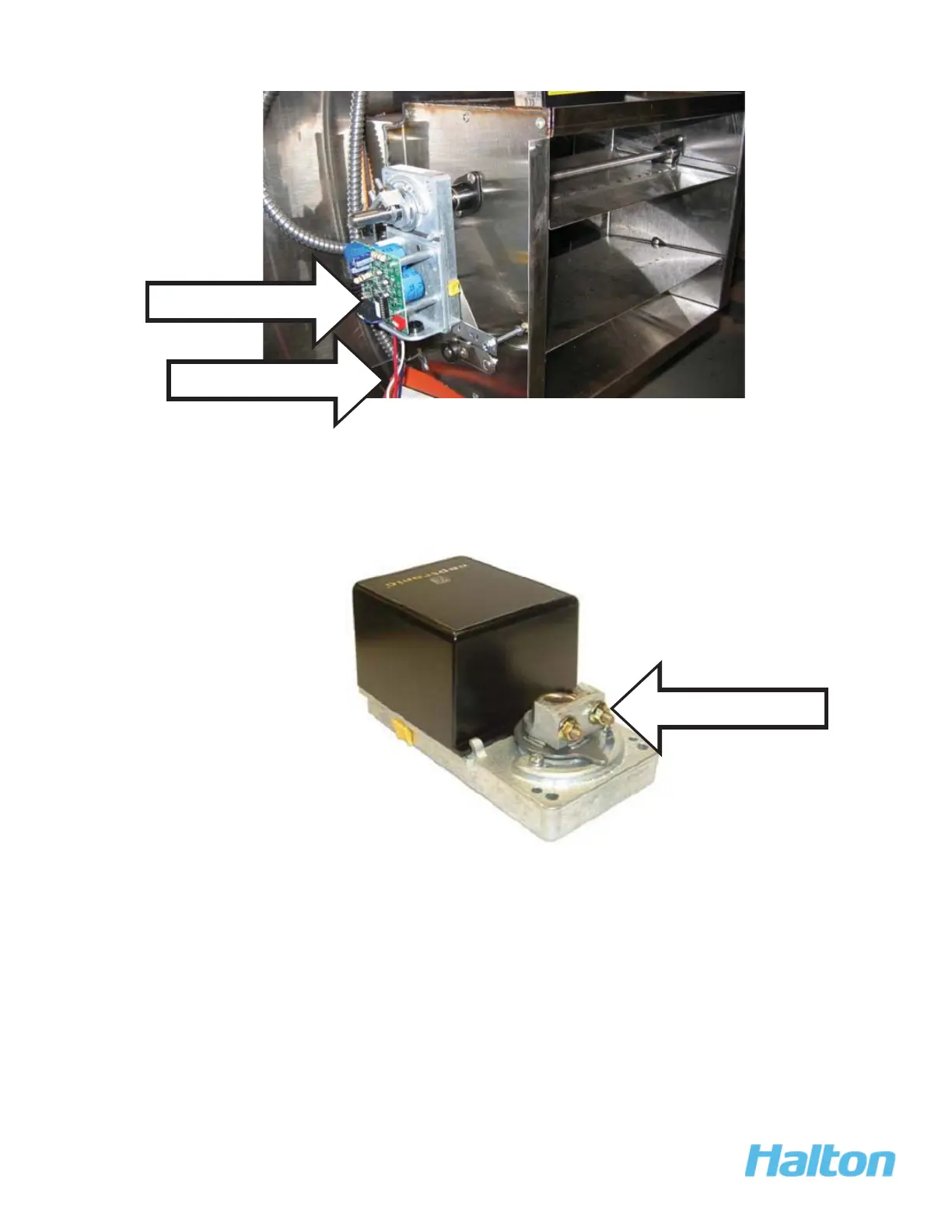

DIP Switch
To terminal block in control
box
Tighten U-bolt
