9DFXXP%R[&RQWUROOHU

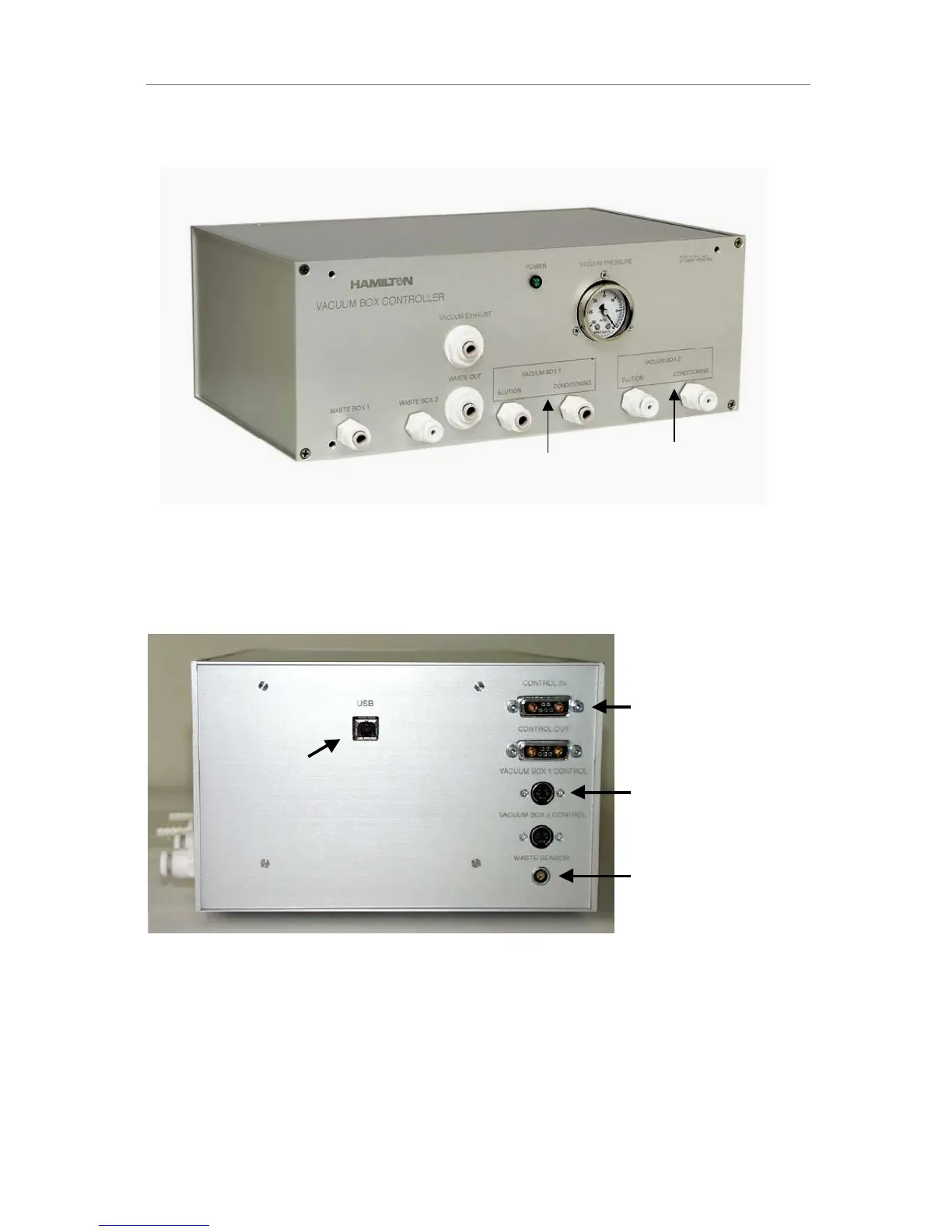

One Controller can control up to two vacuum boxes. The front of the controller has eight
ports. Six of these are needed for conditioning, elution and waste removal. There is also a
vacuum exhaust port for venting vapors and a “waste out“ port for draining liquid from the
conditioning chamber.
Pictured above is the right side of the controller with the different connections. The
communication with the computer is via a USB cable. As the controller requires 24 volts, a
power supply with 24 volts is delivered together with the controller.
To Next Page
