 3RZHU9ROWDJH
 %DVLF0LFURODE67$5
We recommend using a Uninterruptible Power Supply (UPS) for the Microlab STAR.
Ensure that the instrument is correctly earthed when connected to the power supply.

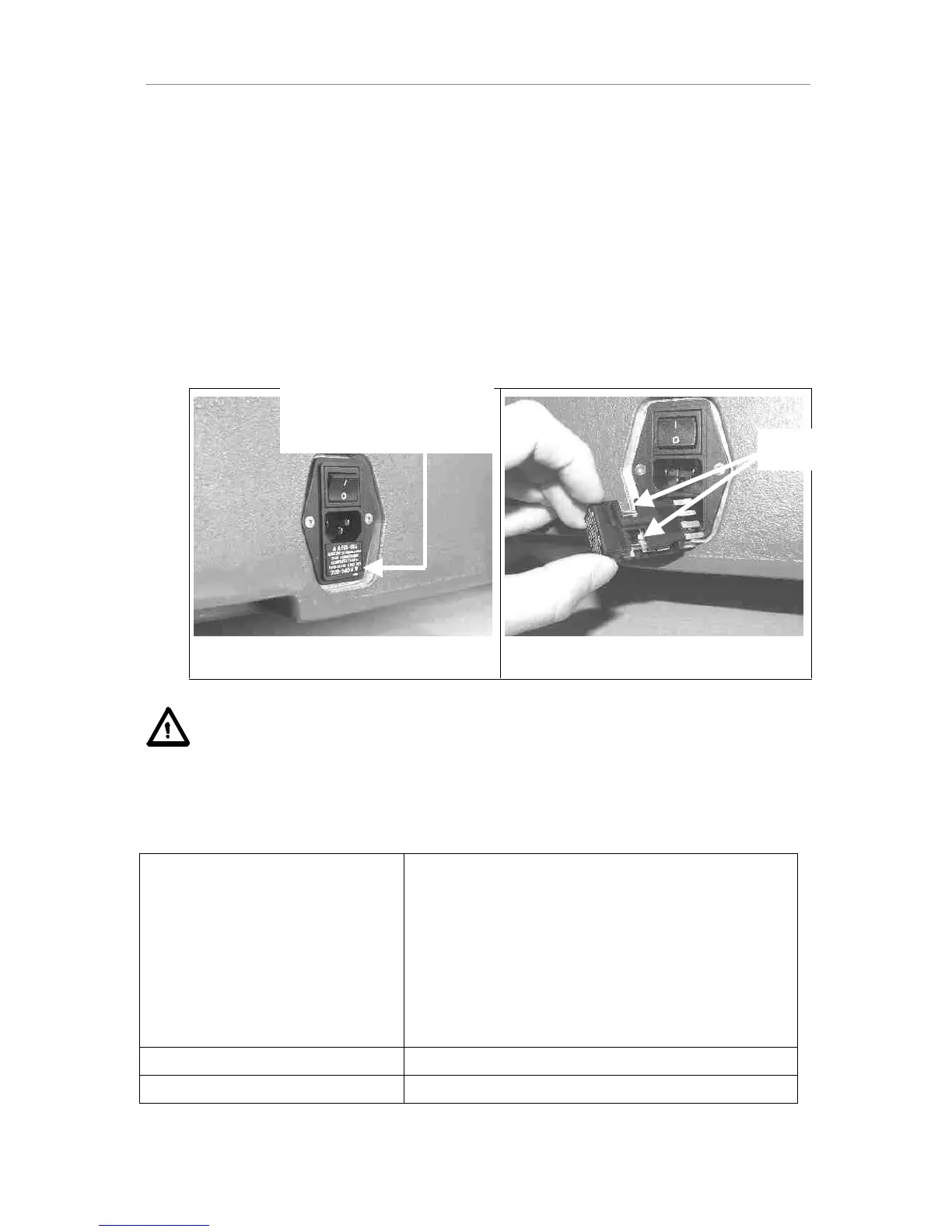

The mains plug is on the left hand side of the instrument towards the rear (see picture 1
below).
The fuses for the instrument are situated in the mains power switch (see picture 2 below).
Plug the mains cables for the computer and the instrument into the same electrical outlet.
Connect them only to an earthed outlet.
3LFWXUH 3LFWXUH
$77(17,21
$OZD\VNHHSWKHLQVWUXPHQWYROWDJHVHOHFWRUDW9 ∼
3ODFHWKHDSSURSULDWHIXVHLQWKHPDLQVSRZHUVZLWFKEHIRUHVZLWFKLQJRQWKH
LQVWUXPHQW
The technical specifications regarding electrical power are listed in the following table.
Maximum power consumption:
Voltage:
Frequency:
Delayed action fuse:
115 V∼:
230 V∼:
600W
115 / 230 V∼ -15 % + 15 %
50 / 60 Hz ± 5 %
6.3 A
3.15 A
Overvoltage category II
Degree of pollution 2
Fuses
Voltage selector
Always at 220 – 240 V
