15
!
Bandsaw
N2-35
Machine Alternating-current motor Three-phase current motor
N2-35
Motor voltage 1x 230 V -
motor frequency 50/60 Hz -
Motor power S1 1 kW -
mains voltage according to specification plate ±10%
Safeguarding see circuit plan
Power supply cord (H07RN-F) 3x2,5 mm²/ 5x2,5 mm²
Triggering characteristic C (D*)
*) if starting up is slow, caused by large swinging masses
Extraction connection-Ø 100 mm
Air speed 20 m/s
Min. depression 1138 Pa
Volume flow min. 565 m³/h
! Connection ports 100 mm
4.2 Operation and storage conditions
4.3 Electrical connection
Specifications
Operating/room temperature +10 to +40 °C
Storage temperature –10 to +50 °C
*) S6 = operation under load and intermittent service; 40% = relative operating factor
4.4 Dust Extractors
The machine has to be connected to a dust extractor. The
connection values and the position of the connection port
are shown on the picture.
The air speed at the connection point has to be a mini-
mum of 20 m/s for materials with a humidity less than
12 %.
The air speed should be increased to 25–28 m/s to ex-
tract dust from more humid materials (over 12 %).
Only flame resistant vacuum hoses can be used, confor-
ming to DIN 4102 B1 and any other safety regulations
in effect

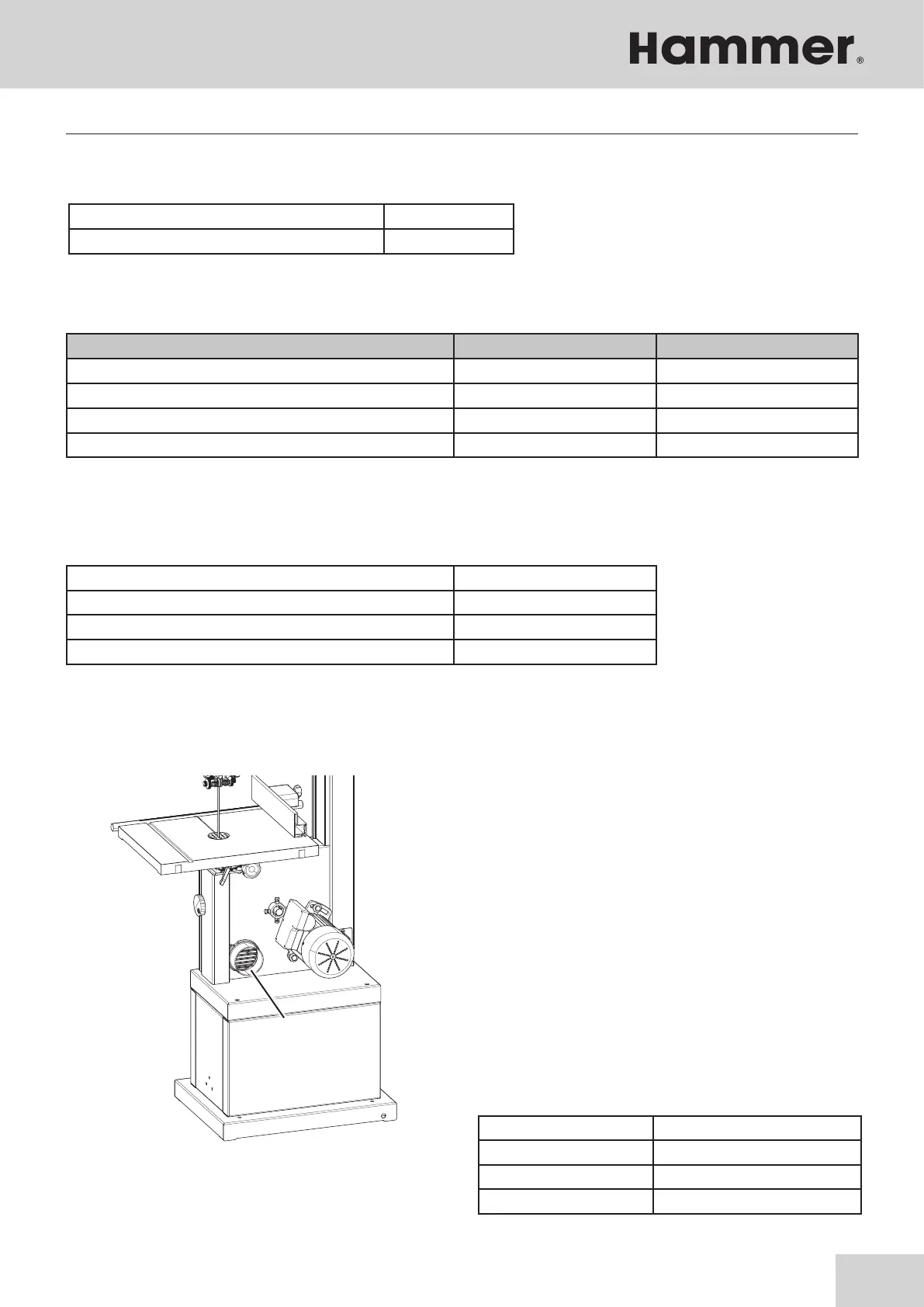

Fig. 4-2: Connection ports
