36
!
"
#
$
!
"
Bandsaw
N2-35
8.5.1 Height adjustable protection device
The machine working table can be tilted up to an angle
from -5° up to +45°
Adjusting the angle:
1. To tilt, remove the table padding to enable the saw
belt to move through the table unimpeded.
2. Open the clamping screw with the supplied spanner
and tilt the table to the desired angle, which is dis-
played on the mitre scale.
3. Tighten the clamping screw again.
Tilt -5°:
1. Swing away the stop
2. Adjusting the angle
3. To tilt the table back to its normal position, loosen the
clamping screw once again and tilt the table up to
the stop in the 0° position and clamp it in that positi-
on.
(Swing back the stop)
Fig. 8-6: Bearings
8.5 Adjusting the saw blade guide
8.4 Tilting the table

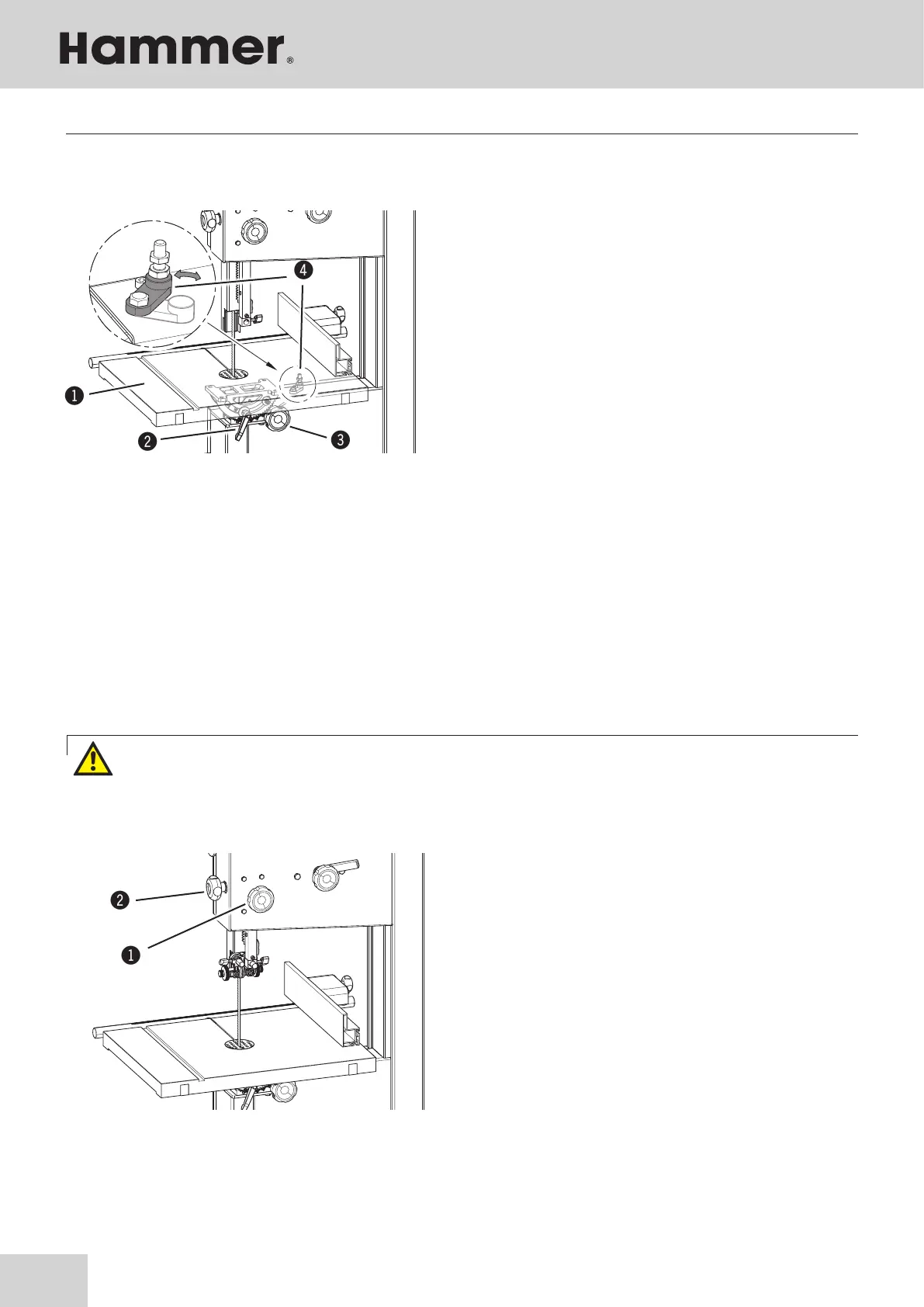

Fig. 8-5: Tilt
! Work bench
" Clamping lever
# Lever
$ Fence - 0°
Operation
Warning! Risk of injury!:
Do not change settings whilst the machine is in operation!
The upper saw blade guide has to be lowered as clo-
sely as possible to the work-piece (5–10 mm). To set
the height, open the clamping screw and turn the hand
wheel until the desired height has been reached. Tighten
the clamping screw once again.
! Clamping screws
" Blade guide height adjustment
