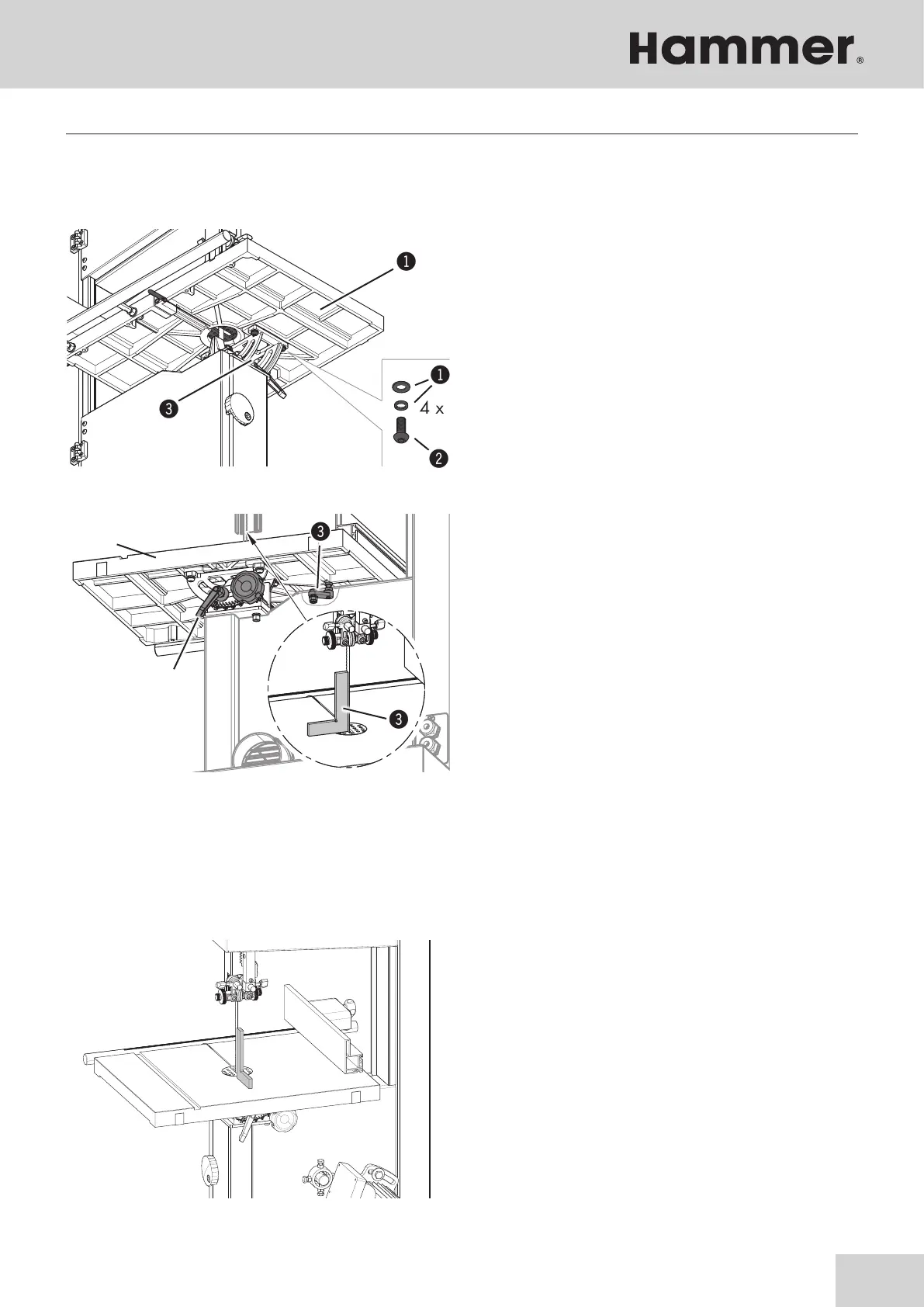

7.2.3 Setting up the work table / Angle adjustment
Disconnect the machine from the mains supply.
Levelling the machine / See chapter entitled 7.2.5
Tension saw blade / See chapter entitled 8.3
Angle adjustment: 90° to saw band run
Loosen the clamping lever.
Tilt the work table until it rests on the stop screw.
Place a 90° angle between the running surface of
the saw band and the working table.
If the 90° in the initial position is not correct, adjust
the stop screw accordingly.
Check the 90° angle once the clamping lever is back
in place.
! Work table
" Clamping lever
# Fence screw
$ 90° - Angle
Fasten the worktable to the clamp with screws and
washers.
! Washers
" Screw
# clamp
$ Work bench
Fig. 7-5: 90° to saw band run
Fig. 7-4: Work table
Fig. 7-6: 90° to the saw band back
