Vorn / Front
Hinten / Backside
$ !
Bandsaw
N2-35
7.2.1 Assemble machine frame (Option)
Setup and installation
Warning! Heavy dead weights can easily cause an injury
To facilitate assembly, ensure the presence of a minimum of one additional people.
Due to technical reasons, the machine is delivered in a
partly dismantled state.
!2 x base wall - long
"2 x base wall - short
#18 x Screws, Nuts, Shims
$1 x Base
Assembly - Machine frame:
1. Connect the base walls long and short with screws,
nuts and washers.
2. Tighten the screws once the angularity is set.
3. Fasten the base plate to the mounted base walls.

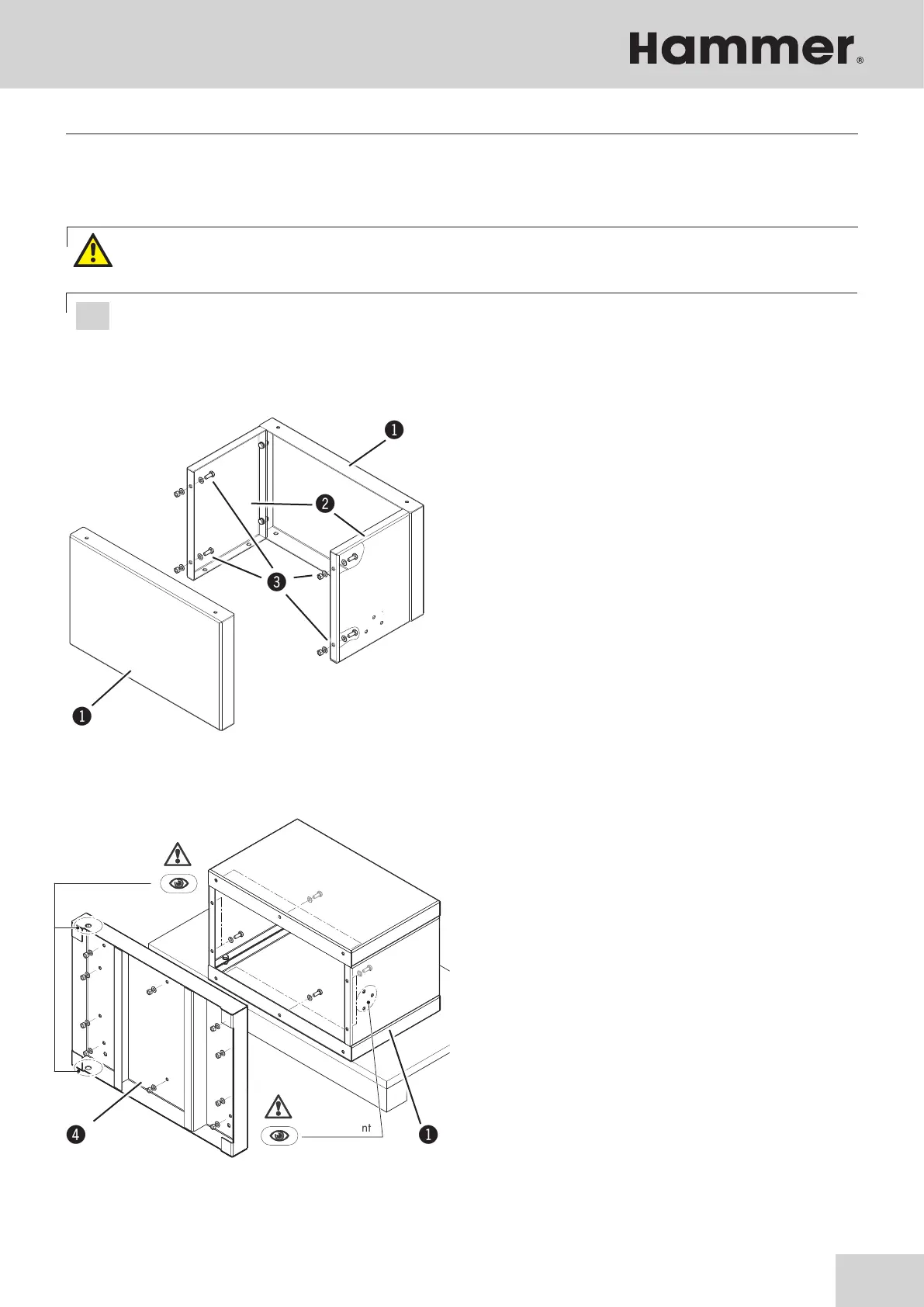

Fig. 7-1:Assembly - Machine frame
Fig. 7-2:Assembly - Machine frame
Note:
During the assembly of the machine frame, first loosely connect all parts.
Finally, tighten all screws.
Ensure the correct position of the drill holes when mounting the base walls!
