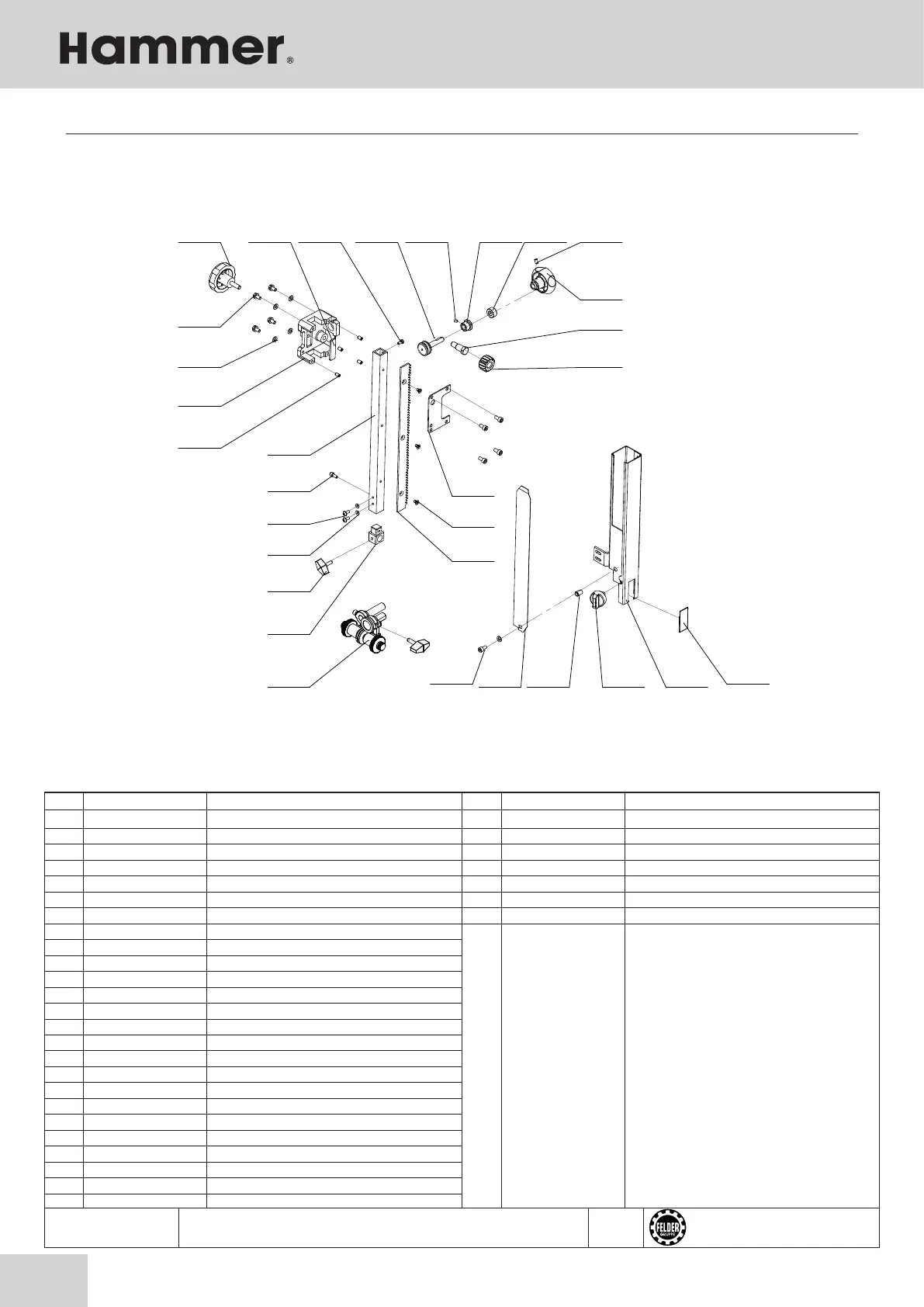

BANDSAW N2-35
gültig ab
09/2018
BSN235-E005_01
Stand 09/2018
Pos.
Teilenummer
Teilebezeichnung
Teilebezeichnung
Pos.
Teilenummer
1 582-13-006 Handle
2 418AB Hexagon bolt
3 404C Flat washer
4 582-13-071 Gear seat
5 424CJ Hexagon lock screw
6 582-13-072 Guide slide bar
7 421AD Hexagon screw
8 422DIA Hexagon screw
9 404I Flat washer
10 582-13-073 Wing knob
11 582-13-074 Pressure pin base
12 582-13-075 Upper guide assy.
13 421BE Hexagon screw
14 582-13-076 Spring leaf
15 582-13-077 Small countersunk head riveted nut
16 582-13-078 Locking handle
17 582-13-079 Blade guard assy.
18 582-13-080 Window cover
19 582-13-081 Rack
20 582-13-082 Screw
21 582-13-083 Seat cover
22 582-13-084 Bevel wheel
23 582-13-085 Shoulder bot
24 582-13-086 Handle 2
25 424CJ Inner hexagon socket set screw
26 582-13-087 Locking circlip
27 582-13-088 Shaft sleeve
28 425BB Inner hexagon taper end set screw
29 582-13-089 Worm
30 422BD cross recess pan head screw
31 582-13-090 Base plate
3
4
5
2
6
10
7
8
9
11
12
13
14 15
24
23
22
21
19
20
16 17
2627 25282930311
18
Bandsaw
N2-35
Spare parts
