The following points are important for a correct and ef-
ficient machine installation:
• The machine should be bolted to the floor with M10
screws for optimum stability, however take care not
to overtighten the fastening bolts as this will increase
vibrations. It is advisable to place vibration dampen-
ing pads between the floor and the machine.
• Install the machine in such a way as not to amplify
the vibrations and machine noise.
• Ensure that workplace lighting is adequate.
• If the machine is to be installed between other ma-
chines, leave at least 80 cm distance in order to
avoid collisions when cutting large work-pieces and
to allow the use of equipment such as roll supports
and additional tables.
Setup and installation

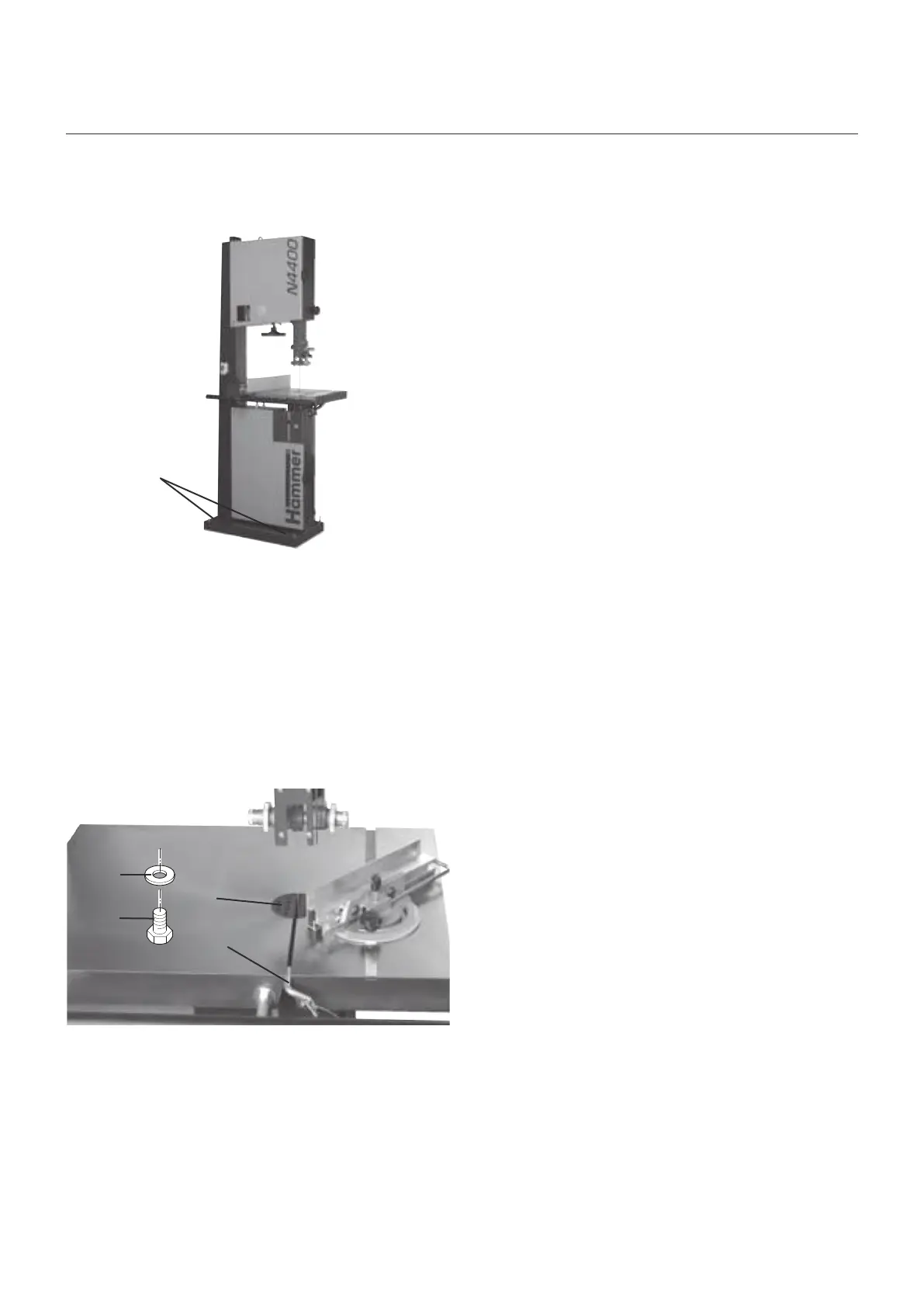

Fig. 4: Screws
!Screws
• The table insert and positioning pin have to be re-
moved to set up the work table.
• Thread the work table around the saw blade and
mount to the machine using SKT screws and washers.
• Re-affix the table insert and positioning pin.
Fig. 5: Work table
!Positioning pin
"Table insert
#Washers
$Screw
!
"
!
$
#
