Hammer N4400 - 7.5.2 Adjusting the saw blade guide

Operation

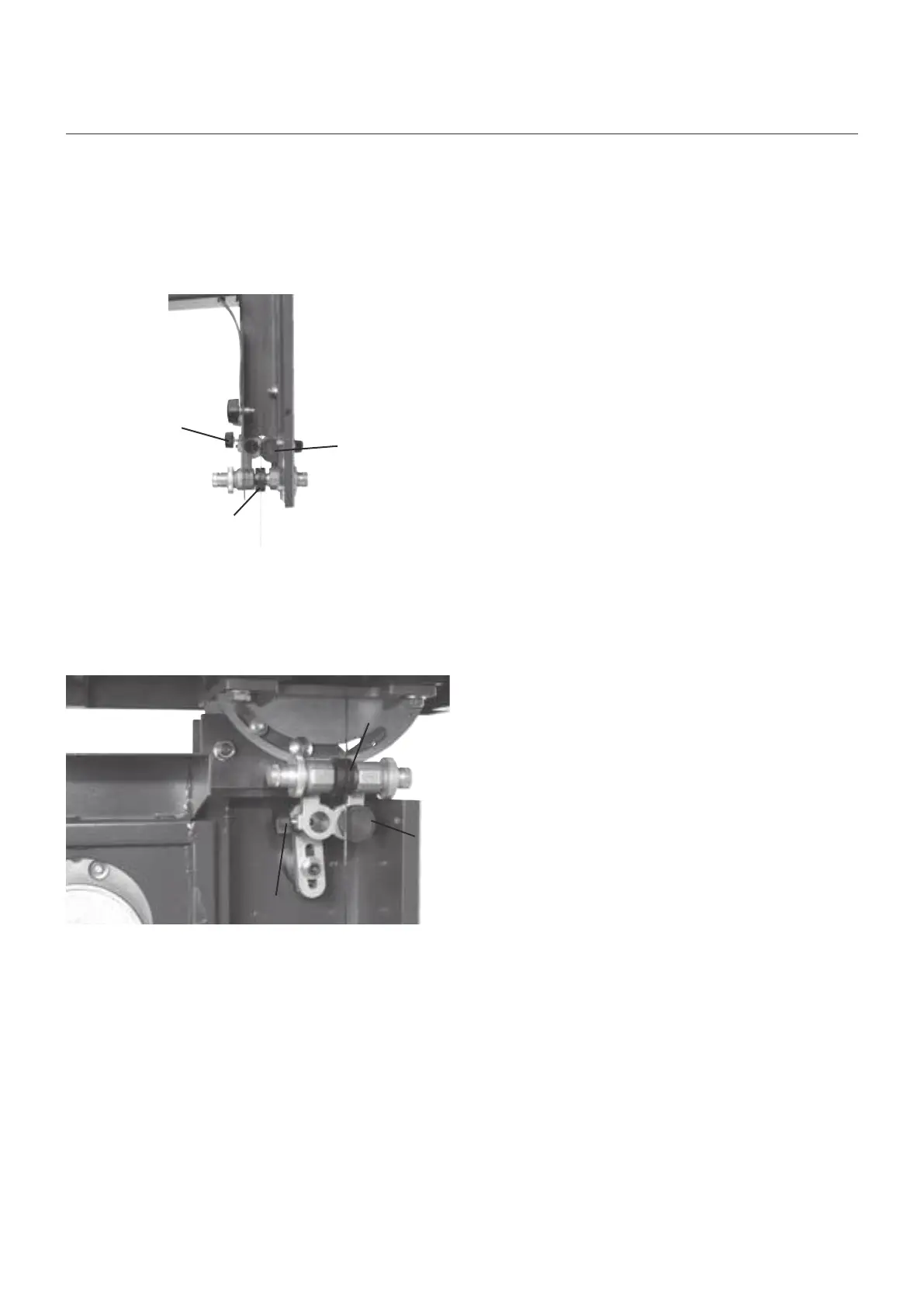

Fig. 20: Saw blade guide


!Guide rollers
"Support roller
#Clamping screw
The side guide rollers should touch the saw blade slightly
so as to obtain a straight and vibration-free cut.
The rear support roller prevents the saw blade thrusting
backwards whilst cutting.
To adjust the position of the rollers, simply loosen the
clamping screw.

Do not change settings whilst the machine is in opera-
tion!
The upper saw blade guide has to be lowered as
closely as possible to the work-piece (5-10 mm). To set
the height, open the clamping screw and turn the hand
wheel until the desired height has been reached. Tighten
the clamping screw once again.
Fig. 19: Guide rollers
!Guide rollers
"Support roller
#Clamping screw
26
!
"
#
!
"
#
