HANGCHA CBD20-AC1S - Standard Technical Data

12

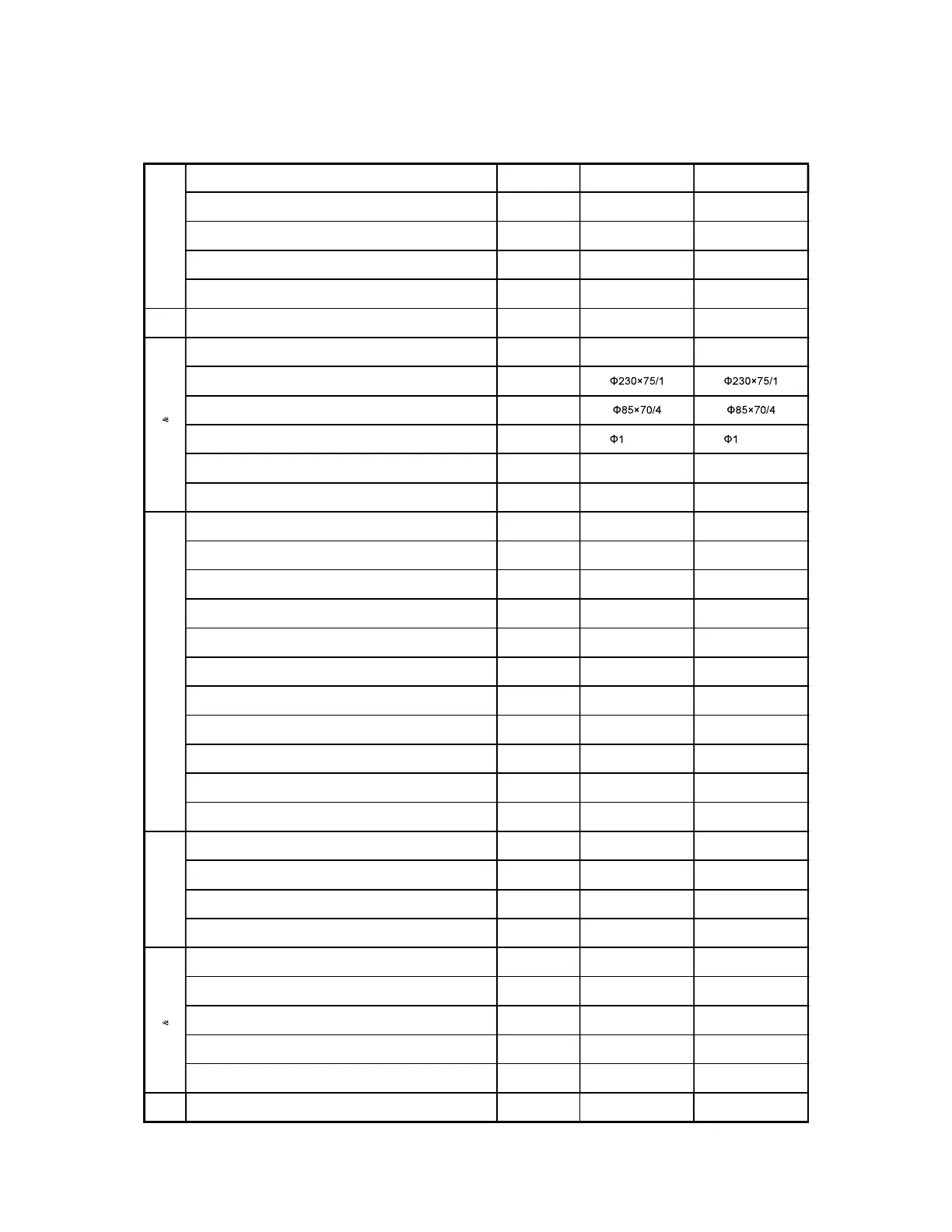

1.5 Standard technical data
The following technical data are all standard data. Our company reserves the right of alteration
and extension.
Characteristics
Model CBD20-AC1S CBD30-AC1S
Operator type Stand-on Stand-on
Load capacity Q (kg) 2000 3000
Load center c(mm) 600 600
Wheelbase y(mm) 1369
1)
1369
1)
Weight
Service weight with battery kg 726 750
Wheels Tyres
Tyre type PU PU
Tyre size/Quantity,operator side mm
Tyre size/Quantity,load side mm
Auxiliary wheel size/Quantity mm 25×50/2 25×50/2
Tread, operator side b10(mm) 575 575
Tread, load side b11(mm) 370 370
Dimensions
Lift height h3(mm) 125 125
Fork height, lowered h13(mm) 85 85
Overall length(fold the pedal) L1(mm) 1867 1867
Overall length(unfold the pedal) L1(mm) 2299 2299
Overall width b1(mm) 800 800
Fork size s/e/L(mm) 64×170×1150 64×170×1150
Outside fork width b5(mm) 540/680 540/680
Ground clearance, center of wheelbase, min m2(mm) 25 25
Min, right angle stacking aisle width1000×1200 across forks Ast(mm) 2435
2)
2435
2)
Min, ringht angle stacking aisle width 800×1200 across forks Ast(mm) 2322
2)
2322
2)
Outer turning radius, min Wa(mm) 1627/2040
1)
1627/2040
1)
Performance
Travel speed, laden/unladen km/h 9.0/9.5 7.5/9.5
Lift speed, laden/unladen mm/s 47/65 36/55
Lowering speed, laden/unladen mm/s 75/70 60/58
Max Gradeability, laden/unladen % 10/16 8/16
Motor Battery
Drive motor power kW 2.2 2.2
Lift motor power kW 2.2 2.2
Steering motor power kW 0.2 0.2
Battery voltage, rated capacity V/Ah 24/240 24/280
Optional battey voltage, rated capacity V/Ah 24/340 24/340
Controller mode Curtis AC Curtis AC
