Part Structure, Principle and Maintenance
1 Drive system
Drive system of stand-on type truck adopts four connecting rods to couple with the frame, and
divided into manual steering and electric steering.
Drive system is mainly consisted of connecting rod, drive seat, reduction box, drive motor,
electromagnetic brake etc..
1. Connecting rod
2. Drive seat
3. Steering gear wheel(only for electric steering)
4. Drive wheel
5. Reduction box
6. Steering pinion(only for electric steering)
7. Steering motor(only for electric steering)
8. Drive motor
9. Electromagnetic brake

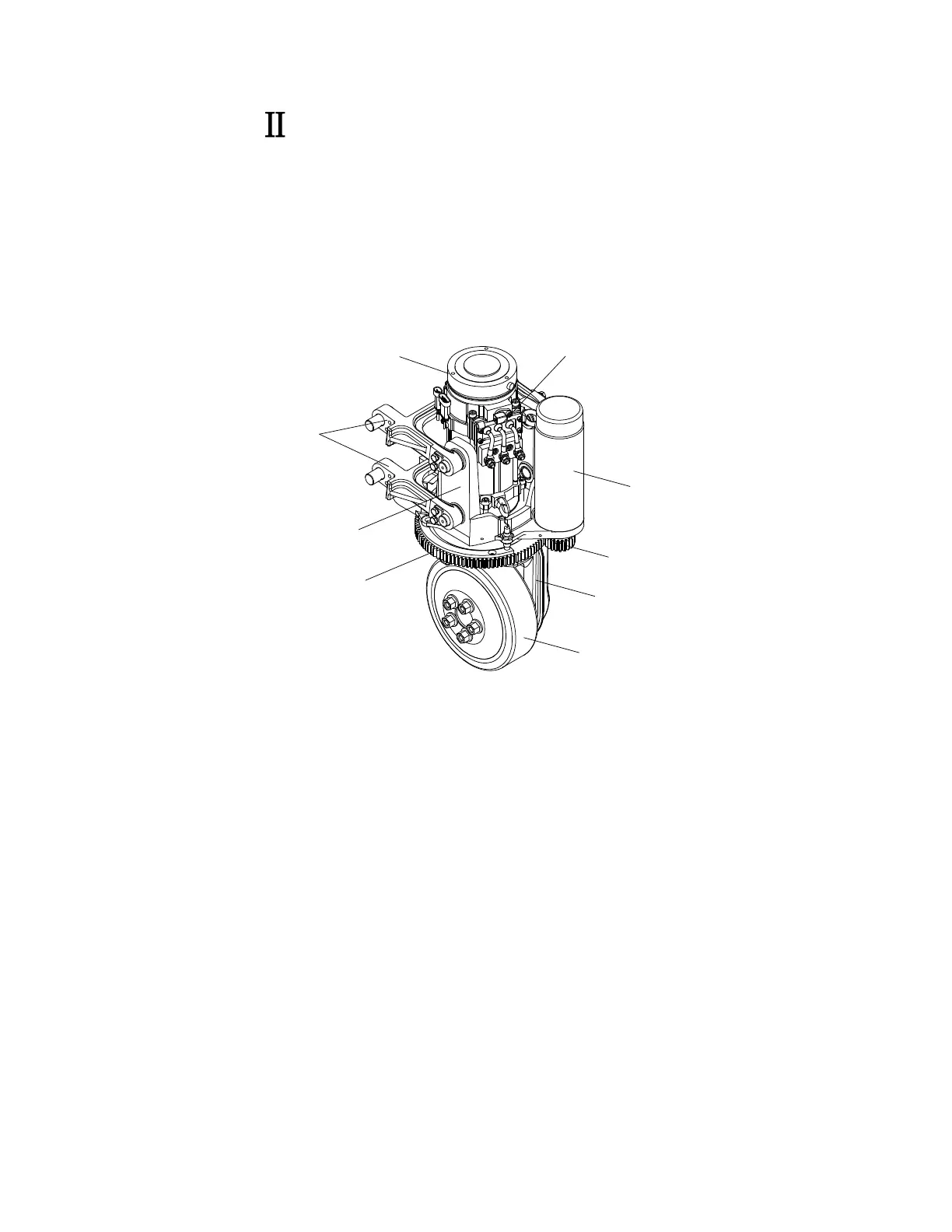

Fig. 2-1 Drive diagram of drive unit
