4.5 Replacing the battery

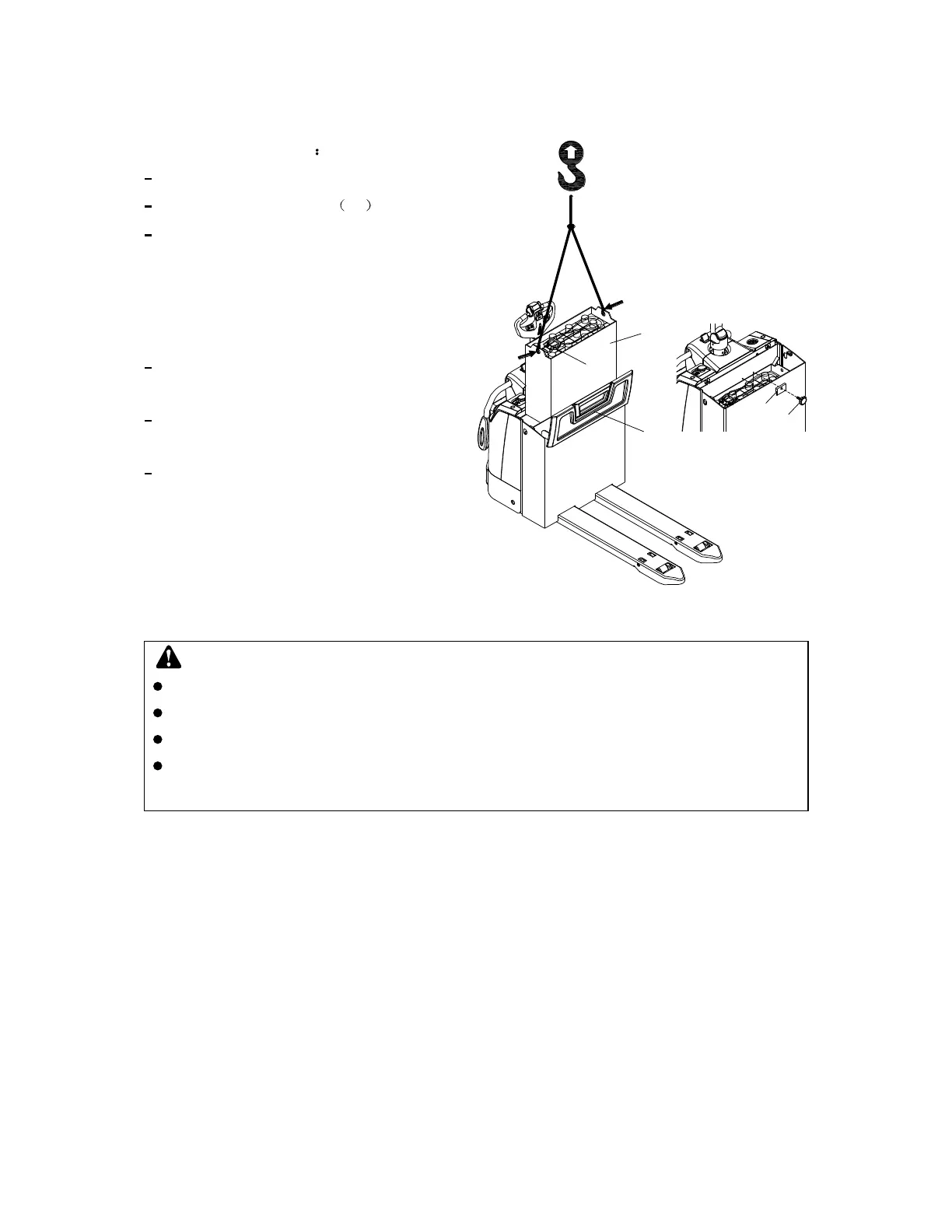

Battery replacing steps
Park the truck and render it safe.
Open the battery cover 14 .
Remove the battery plug(38) from truck
socket, and place the battery plug and
cable into the battery tank(37), ensure
that it does not scratch cable when
removing the battery.
Dismantle grub screw(40) and fixed
block(41).
Hang the hoisti
ng tool to the two hoisting
hole of the battery tank(37) and fix it.
Use the crane to pull out the battery
vertically.
Installation is in the reverse order of
operations. Check for correct mounting
position and correct connection of the battery.
WARNING
Battery box is very heavy, be careful to avoid damage.
Make sure the lifting capacity of the crane is larger than battery weight.
Disposal to the waste battery should accord with local environment regulation.
When replacing the battery, ensure that a battery of the same specification,
dimension and weight is fitted.
