1.3.2 Brake installment

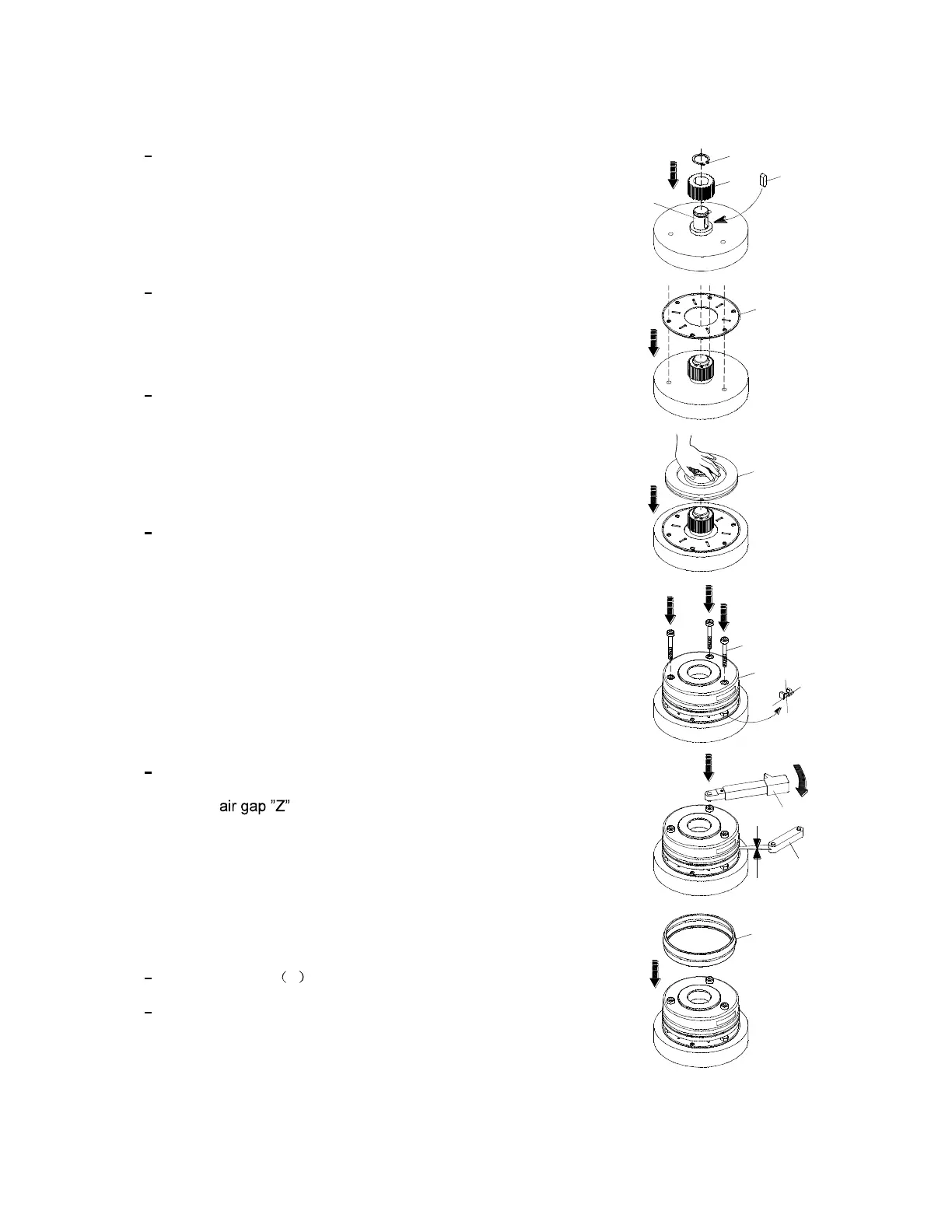

Place flat key(12) to the key groove of motor shaft(9), press
shaft sleeve(4) to the shaft(9), and fix with inner snap
ring(13).
Place friction disc(5) on the end face of motor.
Cover friction brake disc(3) to the shaft sleeve.
Install stator module(2) and three mounting screws(1). Note:
remove three fixed rubber gasket on the stator module(2)
before install.
Screw down three mounting screws(1) with spanner(14)
, and
check with feeler gauge(15).
Put dust cover 6 .
Connect brake wiring.
6
Z
15
14
4
12
5
3
2
1
13
9
